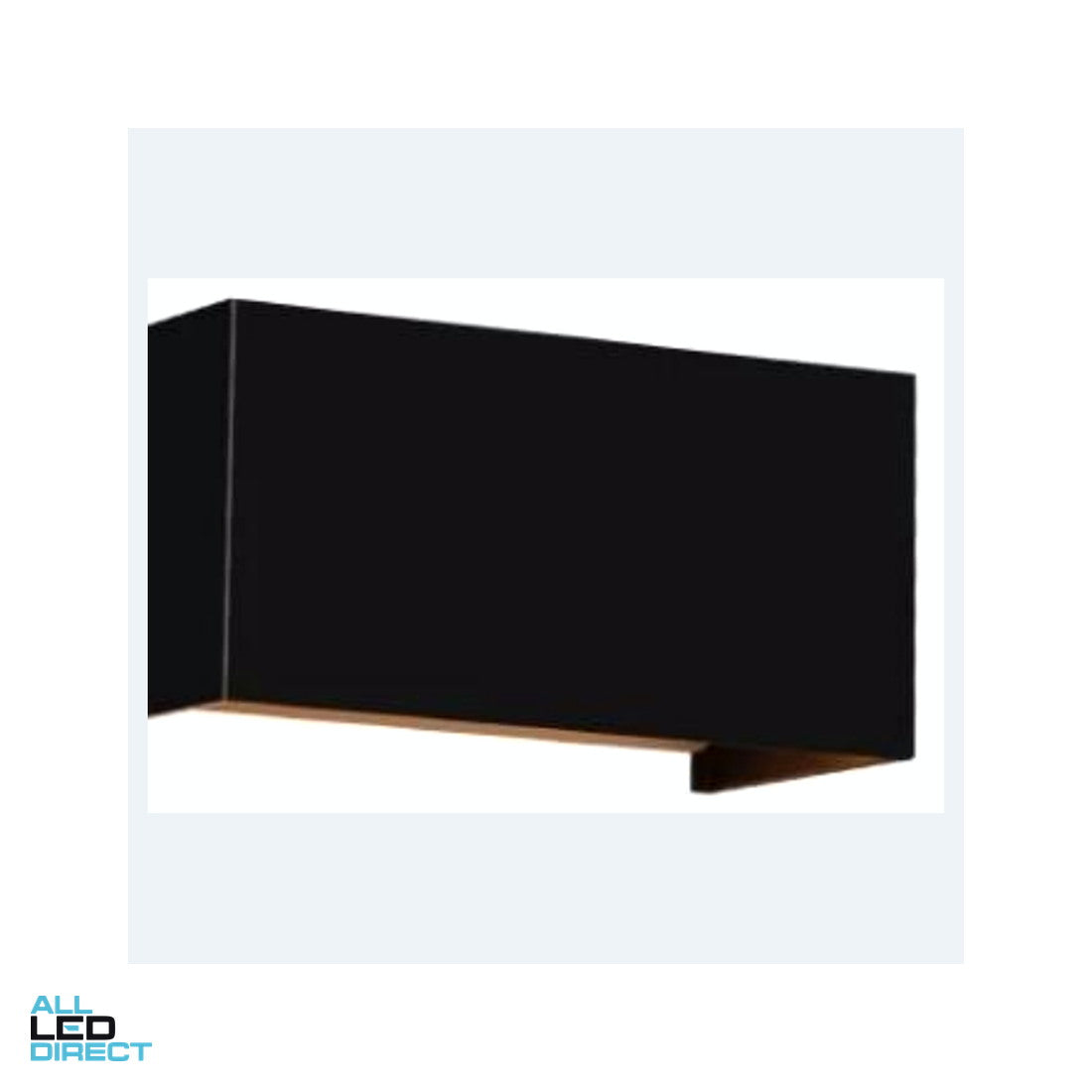

15W wall pack IP65

Wall pack 15 W down-only LED. IP65. Outdoor surface down-throw.

Quote via info@alledirect.com. Australia.

Datasheet ALD-WallPack-15W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
15 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1875 lm
Efficacy
125 lm/W
CCT
3000 / 4000 K
CRI
>80
Beam
36° / 116°
LED package
COB

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Surface mount (wall)
Adjustability
Fixed (down-throw)
IP rating
IP65
Overall size
200 × 100 mm

Driver
Type
Phase-cut dimmable, constant current
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-WallPack-15W
Wattage
15 Watt
