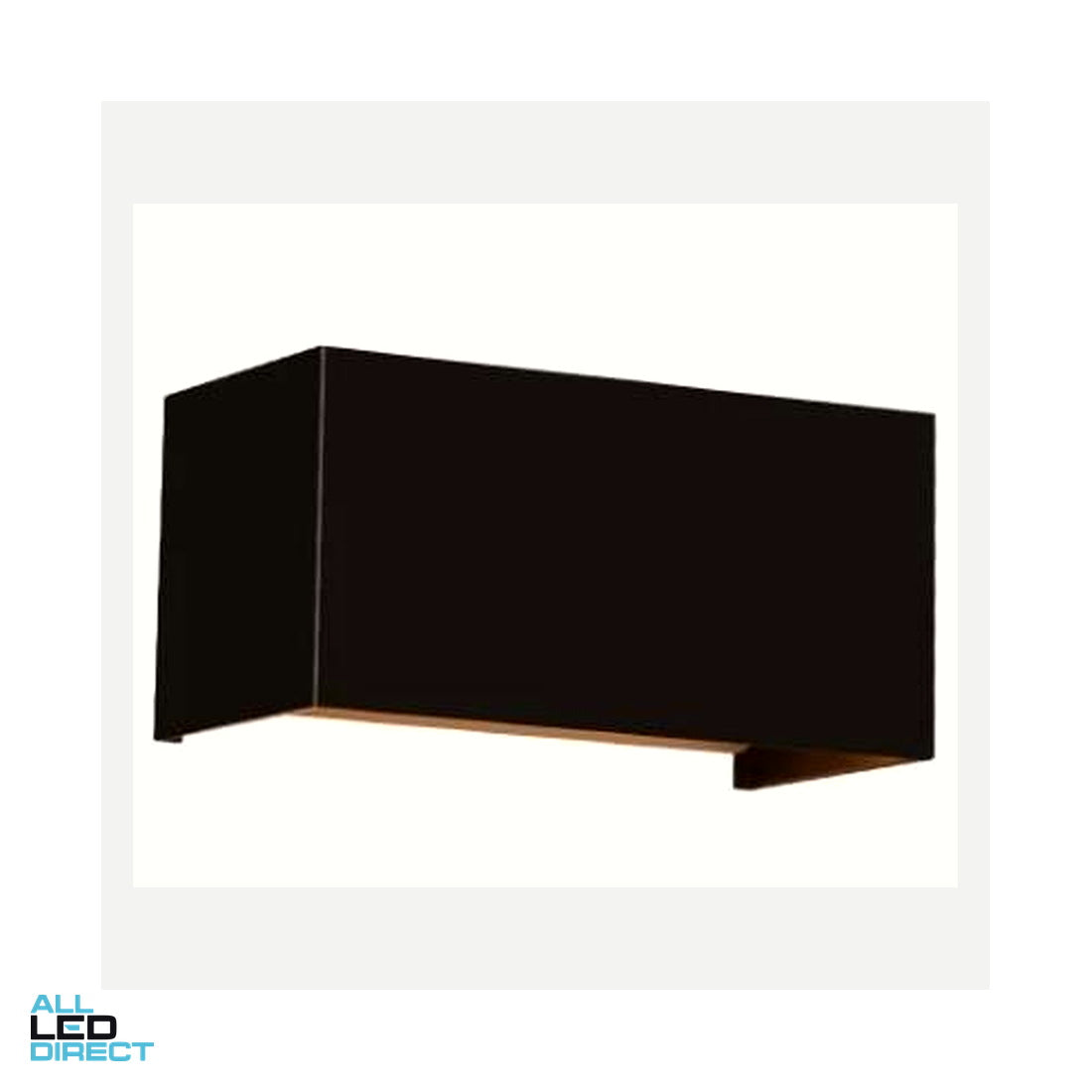

12W wall pack 36 deg

Wall pack 12 W down-only LED. IP65. Pack down only.

Quote via info@alledirect.com. Australia.

Datasheet ALD-WallPack-12W-36deg Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
12 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1500 lm
Efficacy
125 lm/W
CCT
3000 / 4000 K
CRI
>80
Beam
36°
Distribution
Down only
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Surface mount (wall)
Adjustability
Fixed
IP rating
IP65
Overall size
200 × 100 mm

Driver
Type
Dimmable (Phase cut)
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-WallPack-12W-36deg
Wattage
12 Watt
