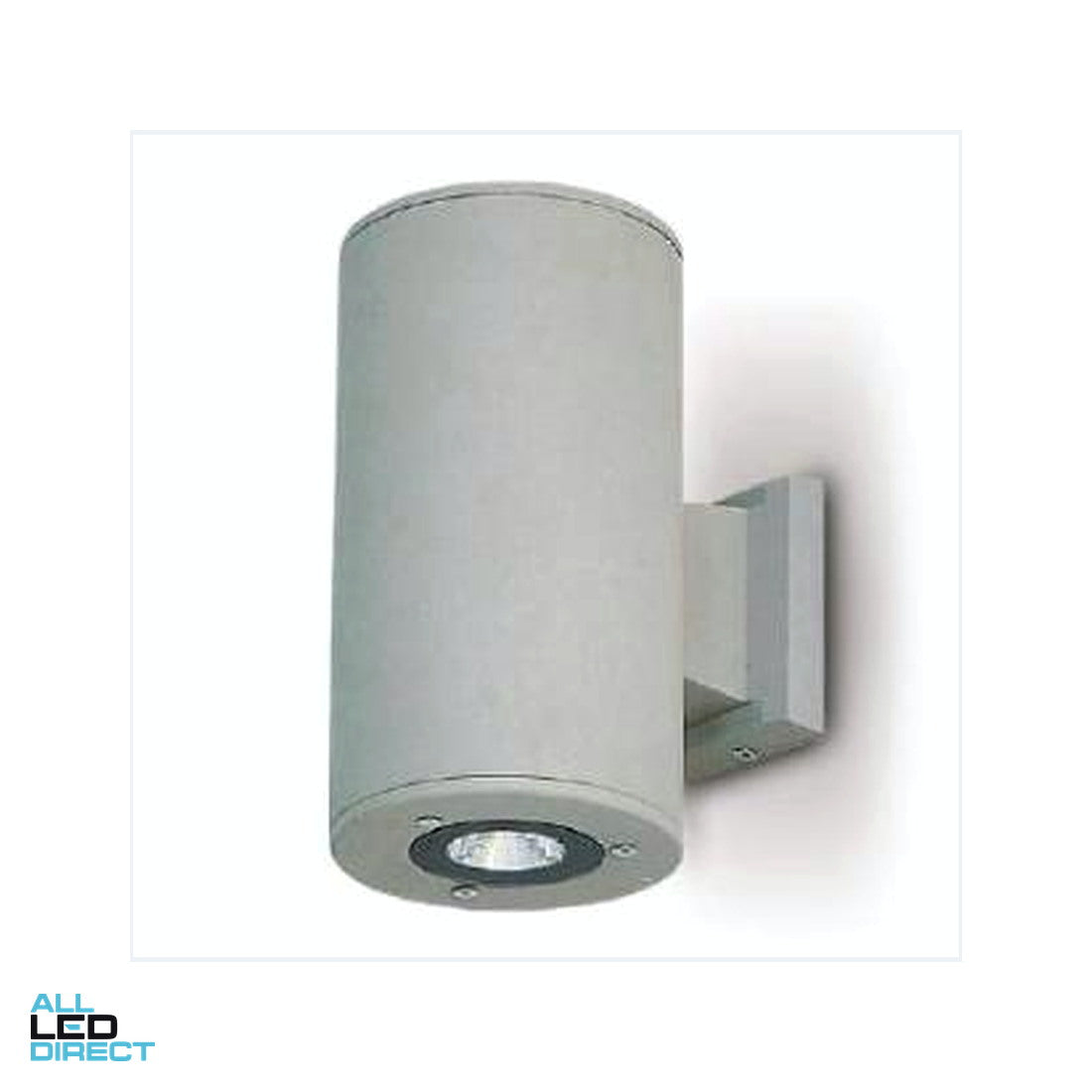

Wall light up/down 2x10W IP65

Wall light ALDR2062 2 × 10 W LED. IP65. Outdoor wall up/down.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Wall-ALDR2062-10W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
2 × 10 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1000 lm
Efficacy
50 lm/W (from 1000 lm / 20 W)
CCT
2200–6500 K
CRI
>80
Beam
120°
LED package
SMD

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Surface mount
Adjustability
Fixed
IP rating
IP65
Size
164 × 210 mm

Driver
Type
Dimmable (Phase cut) DALI
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDR2062
Wattage
2 × 10 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
