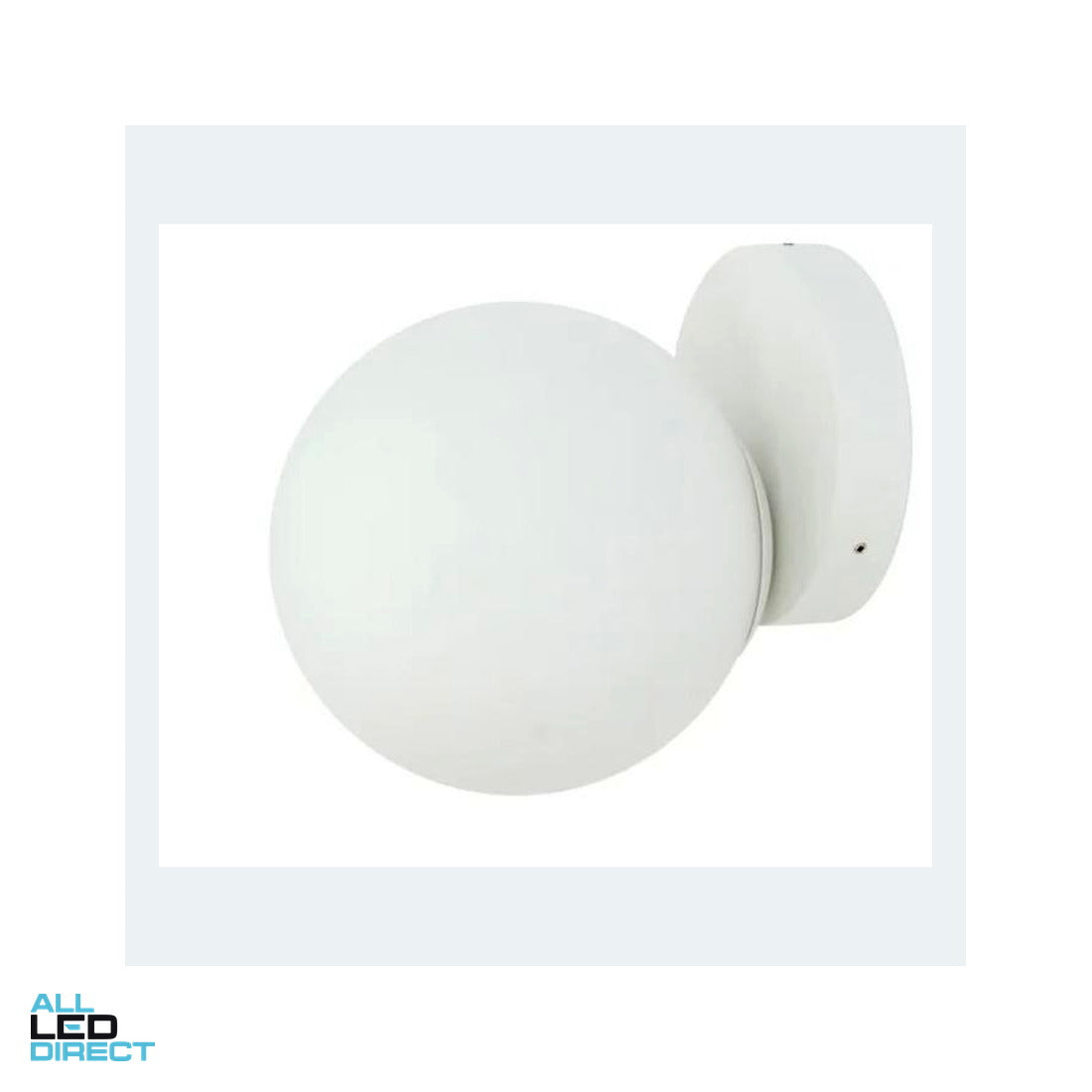

Wall light ball 14W

Wall light ball W2 LED. IP20. Indoor wall E27.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Wall-Ball-W2 Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
14 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline or smart

Optical
System lumens
140 lm
Efficacy
10 lm/W
CCT
4000 K
CRI
>80
Beam
180°
LED package
E27 (lampholder)

Mechanical
Body
Aluminium
Diffuser
Glass
Finishes
Grey, opal, custom
Installation
Surface mount
Adjustability
Full
IP rating
IP20
Diameter × height
Ø 100 × 150 mm

Driver
Driver included
Yes
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
W2
Wattage
14 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
