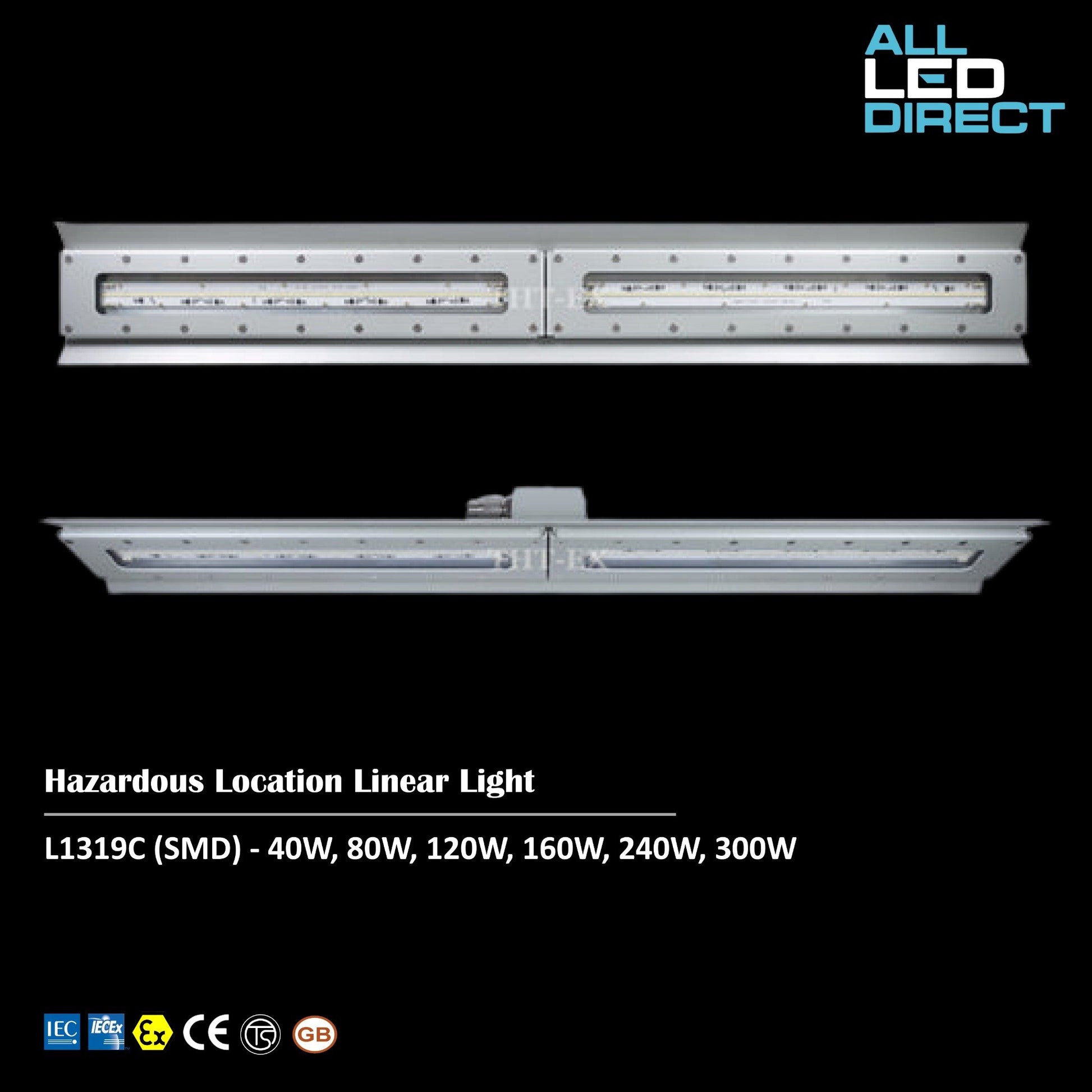

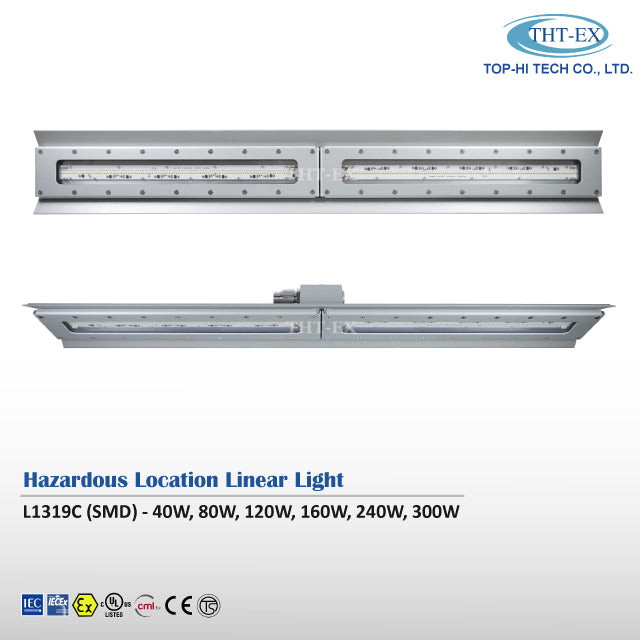

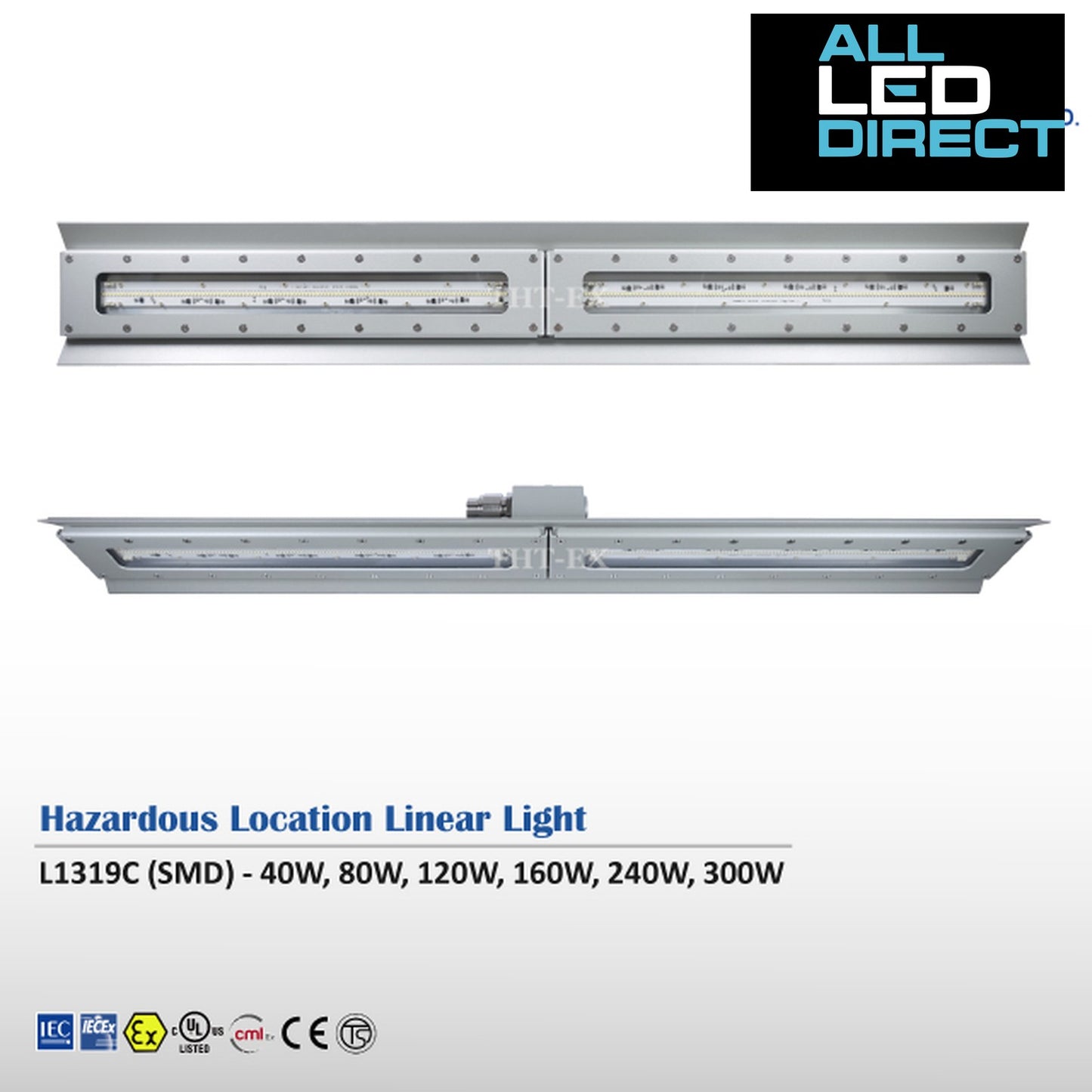

Universal Explosion-proof LED Lighting L1319 SMD 4ft

Light Features

• Light weight; stream line design
• High luminous efficiency & low conversion loss rate
• Product comes with reflector & concentrate light source
• With heat resistant function for high temperature environments

Applicable Location

• Zone 2
• Zone 21 & Zone 22
• Class I, Division 2 (Group A, B, C and D)
• Class II, Division 2 (Group F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T4...T5 Gc
• Ex tb IIIC T110°C...T90°C Db

ATEX Certification

• II 3 G Ex nR IIC T4...T5 Gc
• II 2 D Ex tb IIIC T110°C...T90°C Db

UL Certification

• UL844 - Class I, Division 2 (Group A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
• UL1598
• 240W and 300W only Class I, Division 2 (Group A, B, C and D)

TS Certification

• Ex nR IIC T5 Gc
• Ex tb IIIC T95°C Db

CML Certification

• Ex nR IIC T4...T5 Gc
• Ex tb IIIC T110°C...T90°C Db

Specification

• Volt.: 100V / 110V / 120V / 200V / 220V / 230V / 277V / 347V / 480V AC
• Watt.: 40W / 80W / 120W / 160W / 240W / 300W
• Amps: 0.17A~3.00A
• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9, cos≧0.87(480V)

Ambient Temperature

• -20°C ~ +40°C, T5
• -20°C ~ +60°C, T4
• 60W&80W&120W CID2: -40°C ~ +55°C, T4 / CIID2: +55°C, T5 (UL Certification)
• 240W&300W CID2: -40°C ~ +55°C, T3C

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 90 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-116° / Y-114°
