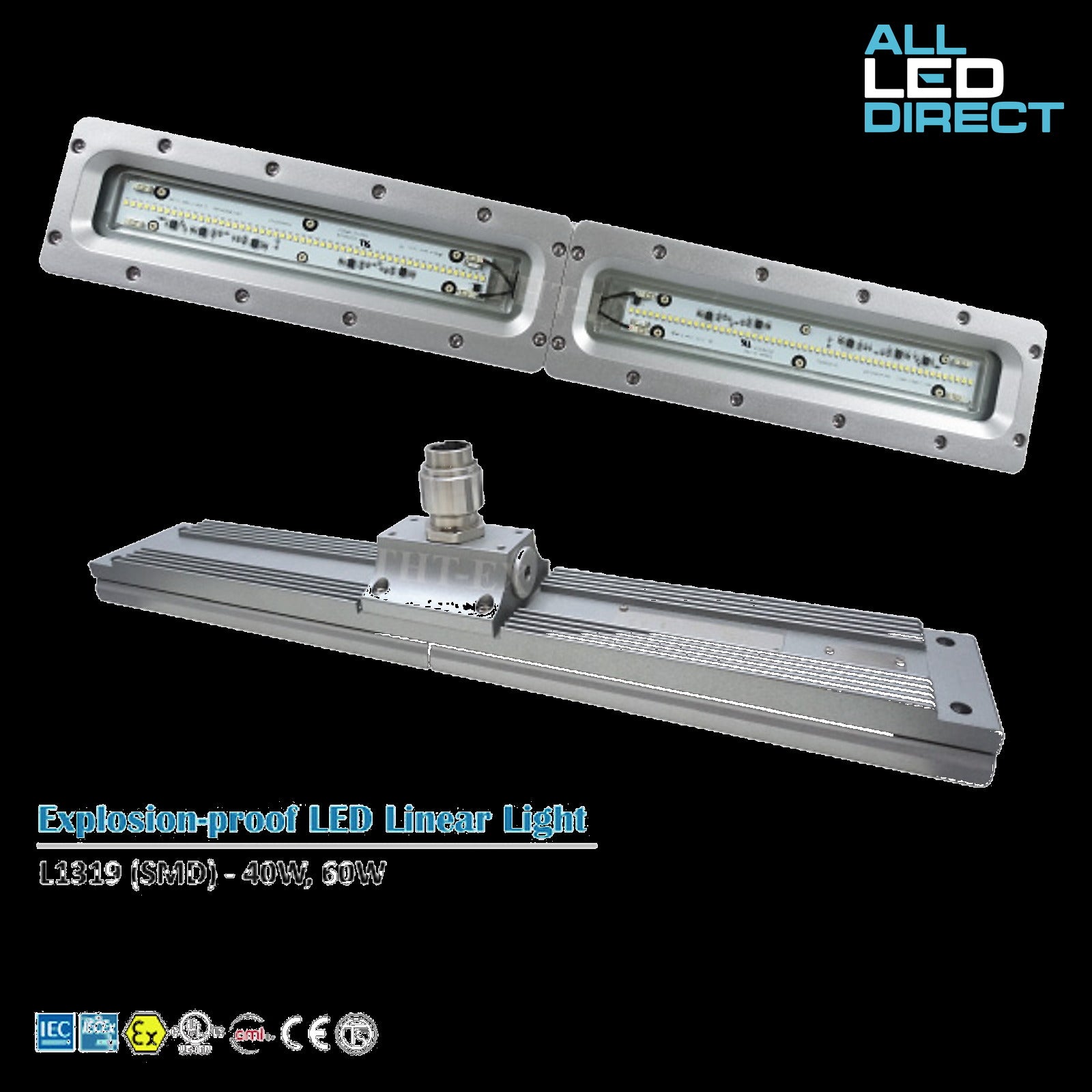

Universal Explosion-proof LED Lighting L1319 SMD

Light Features

• Die-Cast aluminum fixture for LED heat dissipation & thermal control
• High luminous efficiency & low conversion loss rate
• Suitable for hazardous, wet locations & tunnel installation
• 100°C (212°F) heat resistant for high temperature environments

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Group B, C and D)
• Class II, Division 2 (Group F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85˚C Db

ATEX Certification

• II 2 G Ex db IIC T6 Gb
• II 2 D Ex tb IIIC T85˚C Db

UL Certification

• UL844 - Class I, Division 1 (Group B, C and D) / Class II, Division 2 (Group F and G) / Class III
• UL1598

CML Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85˚C Db

TS Certification

• Ex d IIC T6 Gb
• Ex tb IIIC T85˚C Db

Specification

• Volt.: 100V / 110V / 120V / 200V / 220V / 277V AC
• Watt.: 40W / 60W
• Amps: 40W (0.14A~0.40A) / 60W (0.22A~0.60A)
• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Temperature

• -40°C ~ +55°C, T6
• CID1: -40°C ~ +55°C, T6 / CIID2: +55°C, T6 (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 90 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-116° / Y-113°
