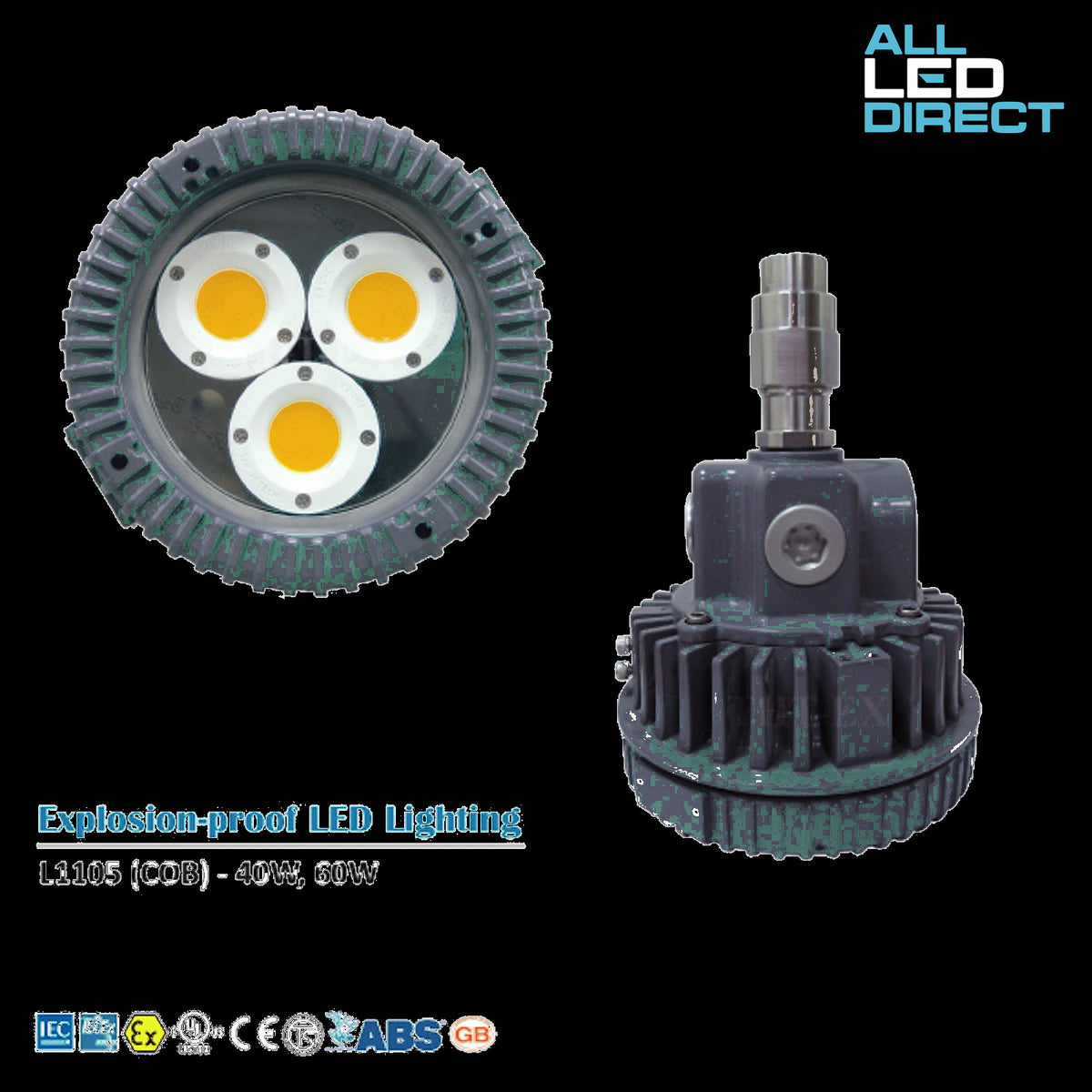

Universal Explosion Proof LED Lighting L1105 60W COB

Light Features

• High luminous efficiency & low conversion loss rate.
• Suitable for hazardous areas, marine environments and high temperature locations.
• Tank veiwer mounting available.

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Groups B, C and D)
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 1 (Groups E, F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex d IIB + H2 T6...T4 Gb
• Ex tb IIIC T108˚C Db

ATEX Certification

• II 2 G Ex d IIB + H2 T6...T4 Gb
• II 2 D Ex tb IIIC T108˚C Db

UL Certification

• UL844 - Class I, Division 1 (Groups B, C and D) / Class I, Division 2 (Groups A, B, C and D) /  Class II, Division 1 (Groups E, F and G) / Class III
• UL1598

TS Certification

• Ex d IIB + H2 T5 Gb
• Ex tb IIIC T110˚C Db

GB Certification

• Ex d IIB + H2 T5...T4 Gb
• DIP A21 TA T108˚C

ABS Certification

• ABS only for Marine LED Light

Specification

• Volt.: 24V / 110V / 120V / 220V / 277V / 480V AC
• Watt.: 40W / 60W (Watts of 24V are different, please contact us for details.)
• Amps: 40W (0.08A~1.67A) / 60W (0.13A~2.5A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9 / cos≧0.87(480V)

Ambient Temperature

• -20°C ~ +40°C, (W.W.: T5 / C.W.: T4)
• CID1: -40°C ~ +40°C, T6 / CID2: -40°C ~ +40°C, T3C / CIID1: +40°C, T4 (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 95 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-110° / Y-110°
