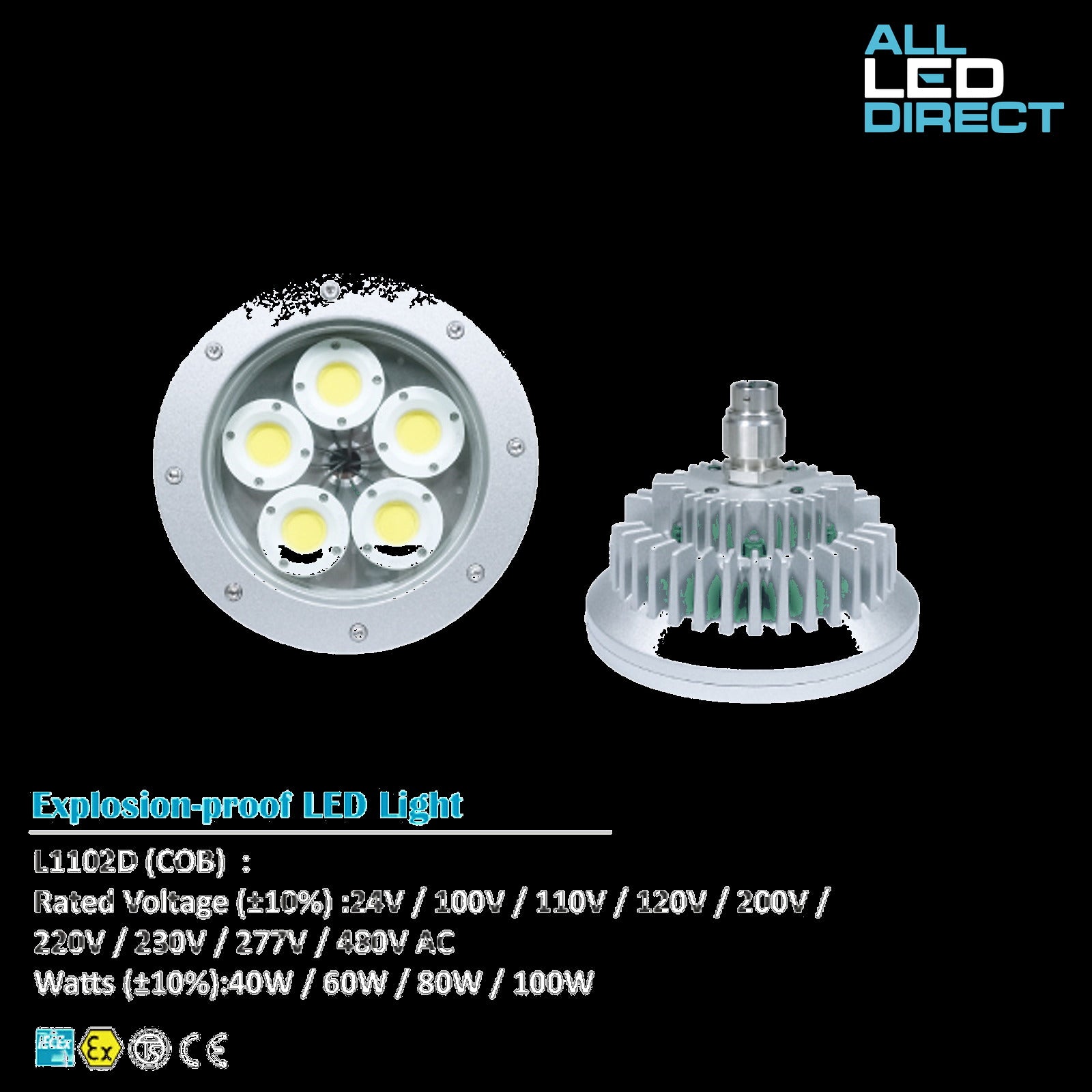

Universal Explosion Proof LED Lighting L1102D COB

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex db IIC T4...T5 Gb
• Ex tb IIIC T105°C...T95°C Db

ATEX Certification

• II 2 G Ex db IIC T4...T5 Gb
• II 2 D Ex tb IIIC T105°C...T95°C Db

TS Certification

• Ex db IIC T4 Gb
• Ex tb IIIC T105°C Db
• Ex db IIC T5 Gb
• Ex tb IIIC T95°C Db

Specification

• Volt.: 24V / 100V / 110V / 120V / 200V / 220V / 230V / 277V / 480V AC
• Watt.: 30W / 40W / 50W / 60W / 70W / 80W / 90W / 100W
• Amps: 0.06A~4.17A

• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9 / cos≧0.87(480V)

Ambient Temperature

• -20°C ~ +40°C, T5
• -20°C ~ +50°C, T4

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : 110lm/w (Warm White) / 115lm/w (Cool White)
• Beam Angle : X-110° / Y-110°

Light Features

• AC-In LED (Driver-less) technology increases efficiency, reduces maintenance costs & environmentally friendly.
• Suitable for high humidity, high temperature and dusty locations.
• Superior corrosion resistance.
• Compact size & lightweight 40% less than conventional lighting.

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
