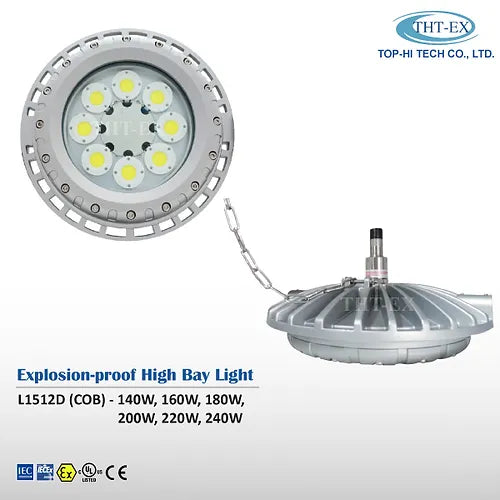

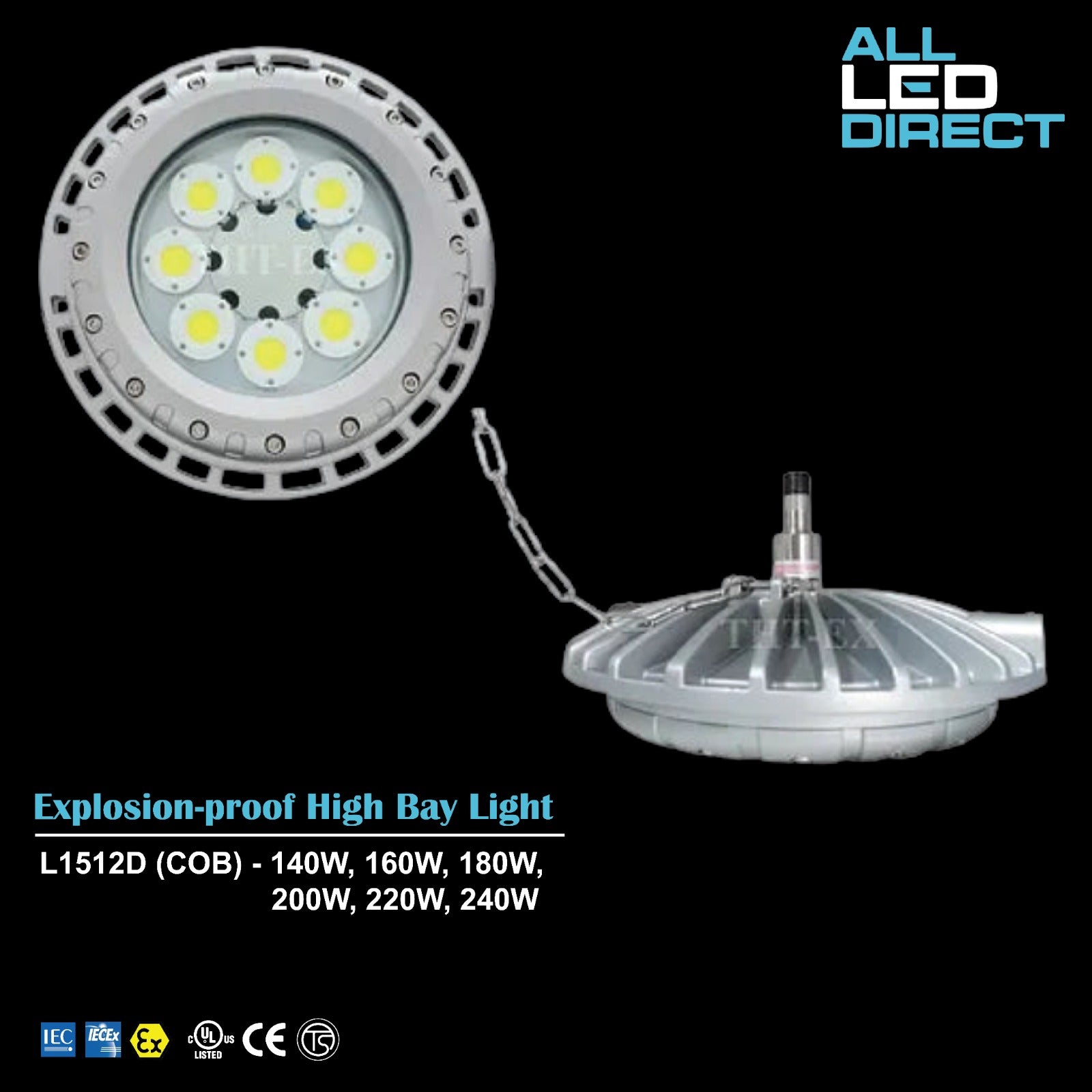

Universal Explosion-proof High Bay Light L1512D COB

Light Features

• Higher wattage up to 240W
• Provide safe illumination for hazardous, high temperature and wet locations

Applicable Location

• Zone 1 & 2
• Zone 21 & 22
• Class I, Division 1 (Group B, C and D)
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 1 (Group E, F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

UL Certification

• UL844 - Class I, Division 1 (Group B, C and D) / Class I, Division 2 (Groups A, B, C and D) / Class II, Division 1 (Group E, F and G) / Class III
• UL1598

IECEx Certification

• Ex db IIB+H2 T4 Gb
• Ex tb IIIC T110°C…T120°C Db

ATEX Certification

• II 2 G Ex db IIB+H2 T4 Gb
• II 2 D Ex tb IIIC T110°C…T120°C Db

Specification

• Volt.: 100V / 110V / 120V / 200V / 208V / 220V / 230V / 240V / 277V / 347V / 480V AC
• Watt.: 140W / 160W / 180W / 200W / 220W / 240W
• Amps: 140W (0.29A~1.40A) / 160W (0.33A~1.60A) / 180W (0.38A~1.80A) / 200W (0.42A~2.00A) / 220W (0.46A~2.20A) / 240W (0.5A~2.40A)
• Frequency: 50Hz / 60Hz

• Power Factor: cos≧0.9 / cos≧0.87(480V)

Ambient Temperature

• CID1: -25°C ~ +40°C, T5 / -25°C ~ +55°C, T4A
• CID2: -25°C ~ +40°C, T3 / -25°C ~ +55°C, T3
• CIID1: +40°C, T4A / +55°C, T4
• IECEx & ATEX: -20°C ~ +40°C, T4, T110°C / -20°C ~ +55°C, T4, T120°C

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 90 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-110° / Y-110°
