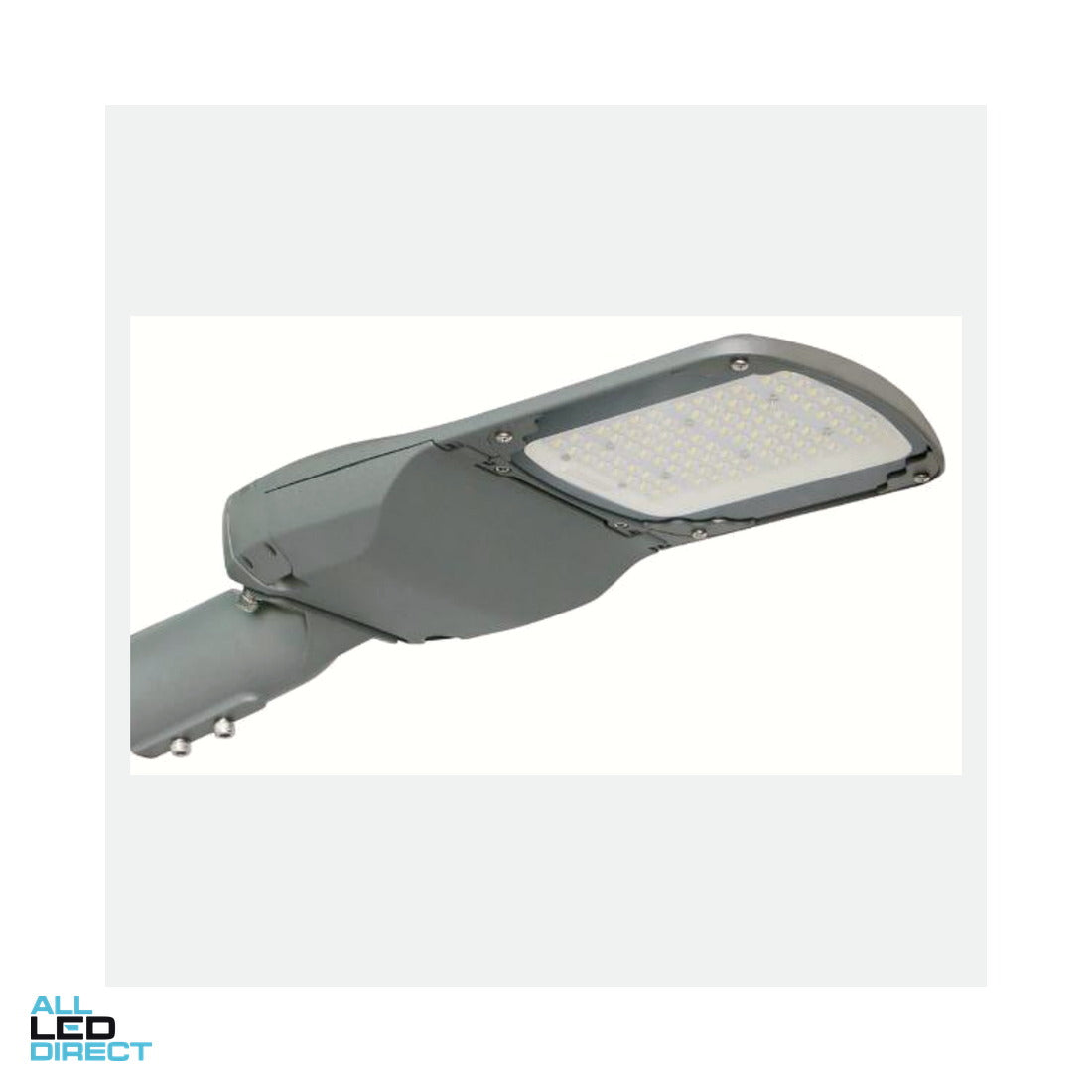

240W turtle street 585 nm

Turtle street light 240 W type III LED. IP66. IK10. Tilt. Road outdoor 585 nm.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Turtle-Street-240W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
240 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
24000 lm
Efficacy
100 lm/W
CCT
2200 K
Peak wavelength
585 nm (amber)
CRI
>80
Distribution
IESNA Type III
LED package
SMD

Mechanical
Body
Aluminium
Diffuser
Polycarbonate
Finishes
Powder coat, grey, black, custom
Installation
60 mm pole spigot
Adjustability
Tilt
IP rating
IP66
IK rating
IK10
Housing size
595 × 196 mm

Driver
Brand
Philips
Type
PE dimmable, constant current
Dimmable
Yes (PE photocontrol)
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.3, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Turtle-Street-240W
Wattage
240 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
