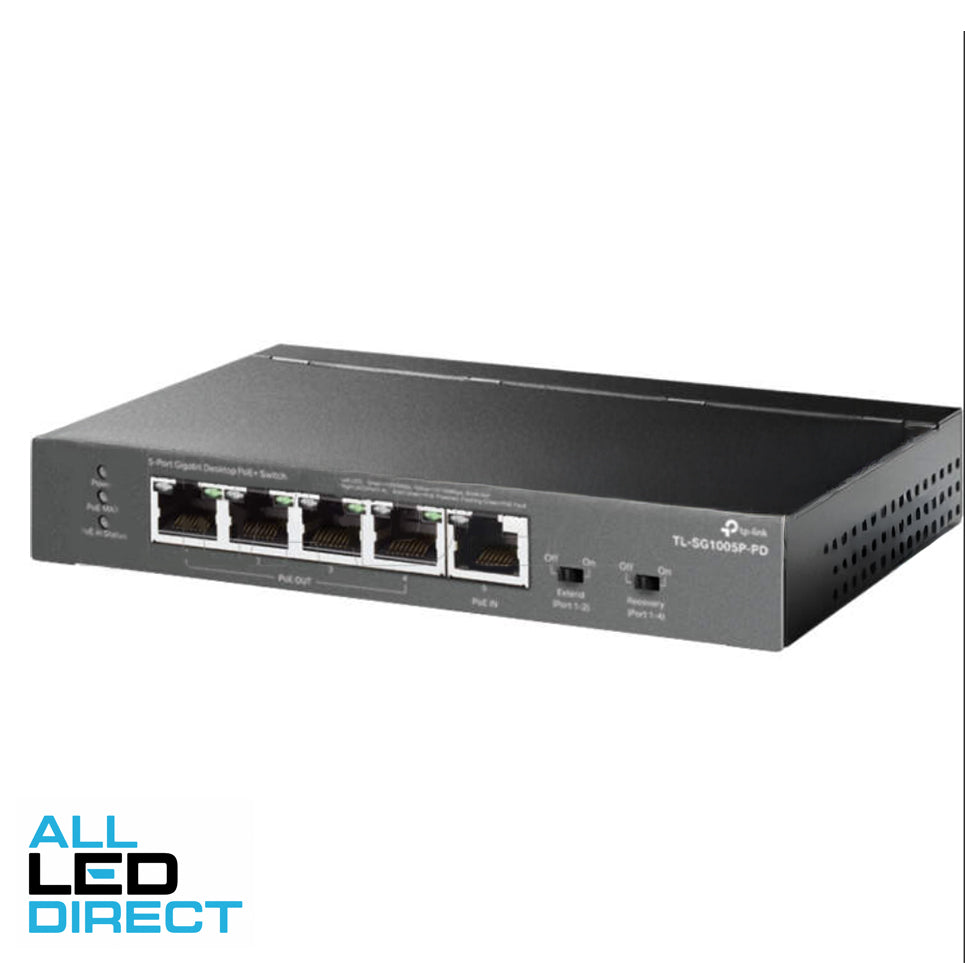

TP-Link 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

Tech Data Sheets
Videos
Product Details
TP-Link 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out by TP-Link is a network switch that features 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports. The TP-Link TL-SG1005P-PD supports up to 66 W / 47 W / 21 W / 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively. It also has a long-range PoE+ feature that allows for PoE transmission distance of up to 250 m. The product has a durable metal casing and a desktop/wall-mounting design, making it suitable for different environments. The TP-Link TL-SG1005P-PD also has a silent operation due to its fanless design and is plug-and-play, requiring no configuration or installation.
Key Features
Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
PoE Budget: Supports up to 66 W / 47 W / 21 W / 9 W PoE budget output
Long-Range PoE+: Allows for PoE transmission distance of up to 250 m
PoE Auto Recovery: Guarantees stable operation of PoE devices by automatically rebooting dropped or unresponsive PD devices
Metal Casing: Durable metal casing and desktop/wall-mounting design
Silent Operation: Fanless design ensures silent operation
Plug and Play: No configuration or installation required
Main Benefits
Reliable Power Supply: Supports up to 66 W / 47 W / 21 W / 9 W PoE budget output
Flexible Installation: Desktop/wall-mounting design makes it suitable for different environments
Easy to Use: Plug-and-play, requiring no configuration or installation
Stable Operation: PoE auto recovery guarantees stable operation of PoE devices
Quiet Operation: Fanless design ensures silent operation

Attributes:

Brand: TP-Link
Part Number: TL-SG1005P-PD
Also Known As: network switch
Ports: 5
Sub Category: Switches
Weight (kg): 0.4600
Length (mm): 158
Height (mm): 25
Width (mm): 101
Length Packaging (mm): 158
Height Packaging (mm): 25
Width Packaging (mm): 101
Barcode: 2000100951835
Barcode (Secondary): 4895252501117
Barcode (Tertiary): 48952525011170

Warranty Information:

Warranty Method
Contact TP-Link Tech Support 1300 875 465 (1300 TPLINK). Faulty returns will only be credited after testing results confirmed from supplier
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
