    ALL LED Direct

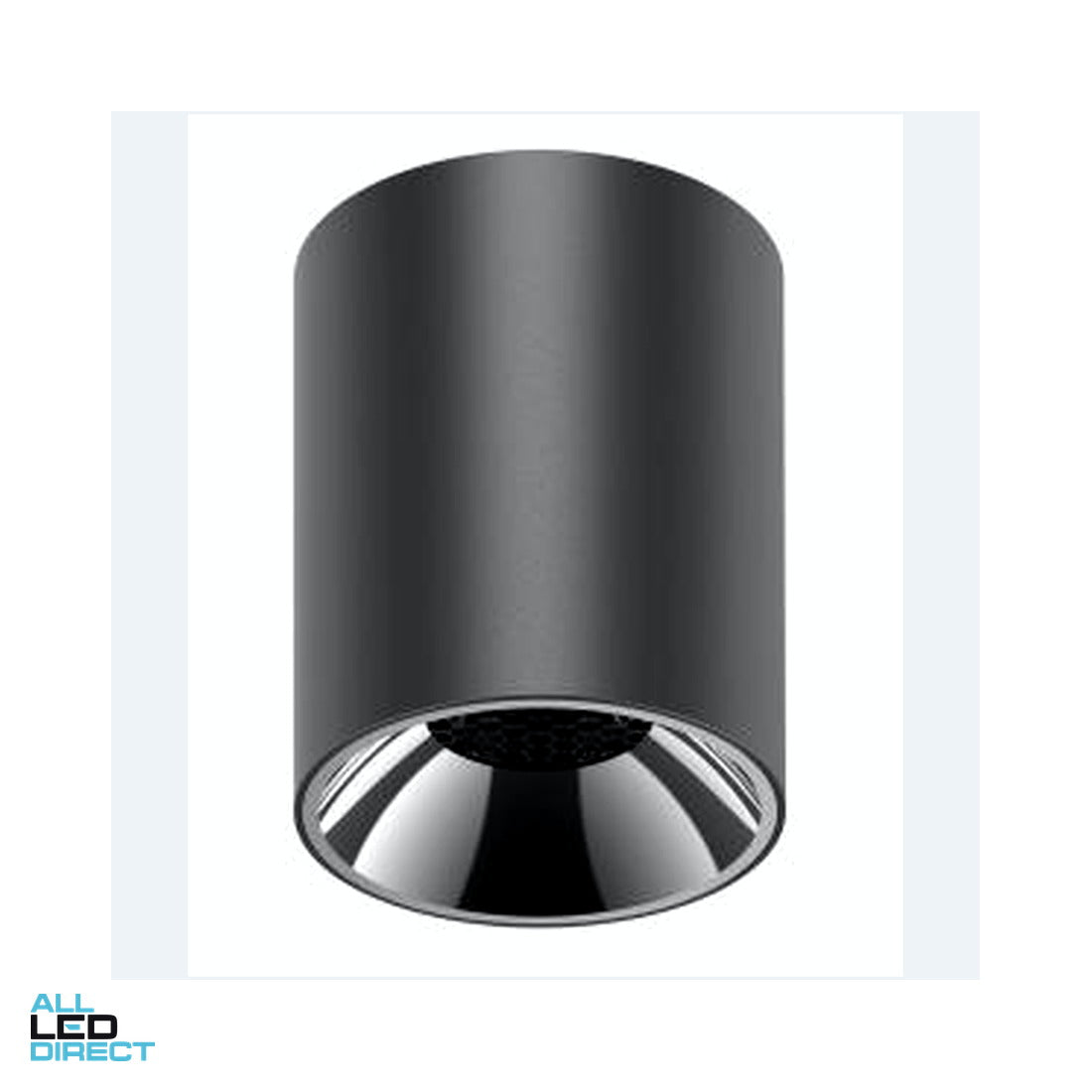

    15W surface can IP65

    15W surface can IP65

    Contact ALL LED Direct at info@alledirect.com for a quote.
    Taxes included.

    Surface can 15 W LED. IP65.

    Quote via info@alledirect.com. Australia.

    Datasheet ALD-SM-CAN-15W-IP65 Rev A.

    Electrical
    Rated voltage
    230 V ac
    Frequency
    50 Hz
    Australian supply range
    216–253 V ac
    System power
    15 W
    Electrical class
    Class I
    Ambient ta
    −20 to +45 °C
    Switch type
    Inline

    Optical
    System lumens
    2175 lm
    Efficacy
    145 lm/W
    CCT
    3000 / 4000 K
    CRI
    >90
    Beam
    60°
    LED package
    SMD
    Colour name
    Warm white / Cool white

    Mechanical
    Body
    Aluminium, powder coated
    Diffuser
    Polycarbonate
    Finishes
    Black, white
    Installation
    Surface mount
    Adjustability
    Fixed
    IP rating
    IP65
    Diameter × height
    Ø 95 × 100 mm

    Driver
    Type
    Dimmable (Phase cut) DALI
    Driver included
    Yes, integrated
    Wiring
    Rewireable 3-pin terminal
    Driver RCM
    RCM marked (driver only)

    Standards
    AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

    Warranty Information
    Commercial Use
    5 years return-to-base
    Domestic Use
    5 years return-to-base
    Warranty Method
    Return-to-base
    Warranty Period
    5 years

    Attributes
    Brights
    Part Number
    ALD-SM-CAN-15W-IP65
    Wattage
    15 Watt

    Shipping Information
    Weight (kg)

    Length Packaging (mm)

    Height Packaging (mm)

    Width Packaging (mm)
