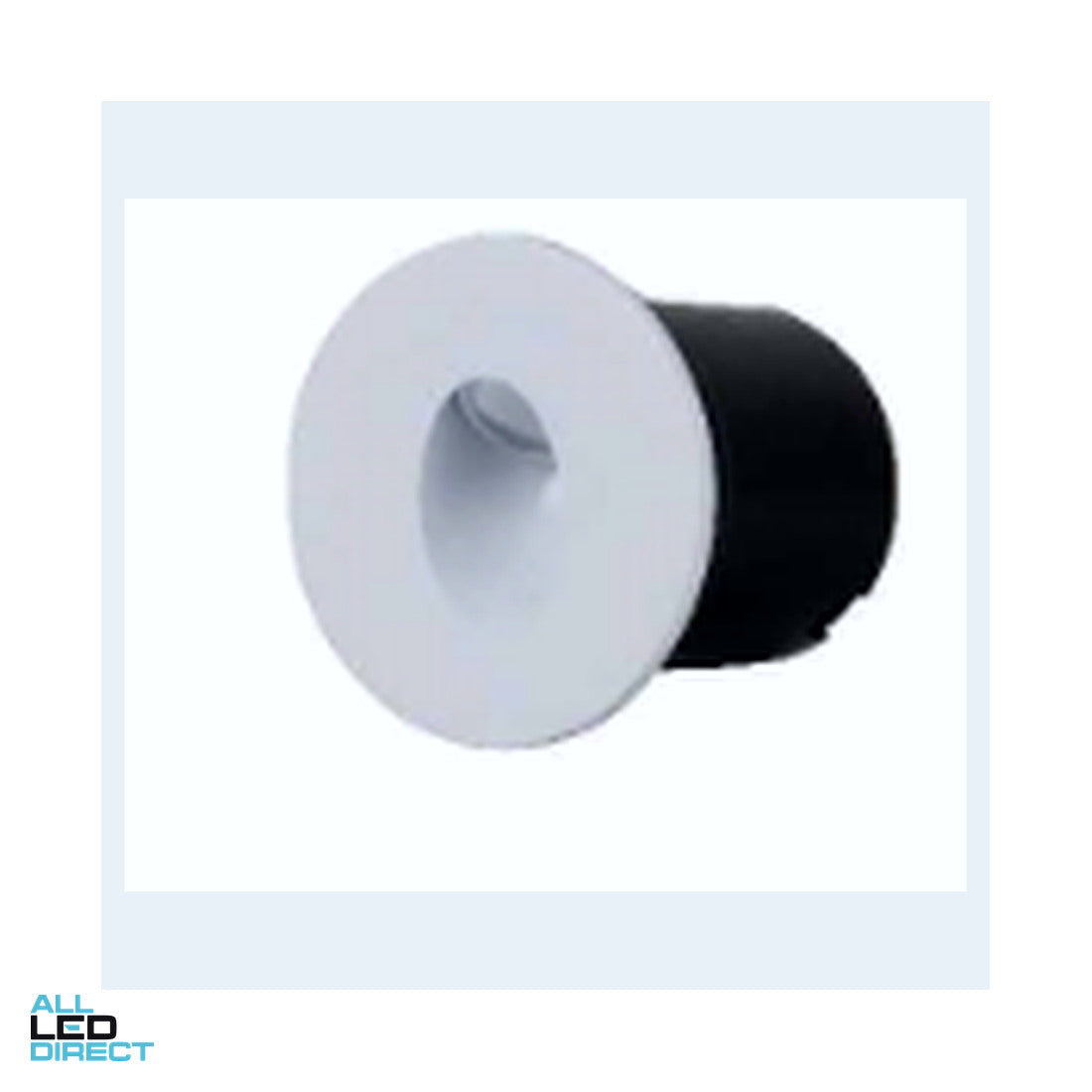

2W step light IP65

2 W recessed step light LED. IP65. Recessed step outdoor / damp.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Step-2W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
2W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
150 lm
Efficacy
75 lm/W
CCT
3000 / 6000 K
CRI
>80
Beam
120°
LED package
SMD
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, matt white
Installation
Recessed
Adjustability
Fixed
IP rating
IP65
Diameter × height
Ø 80 × 50 mm

Driver
Type
Dimmable
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Step-2W
Wattage
2W

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
