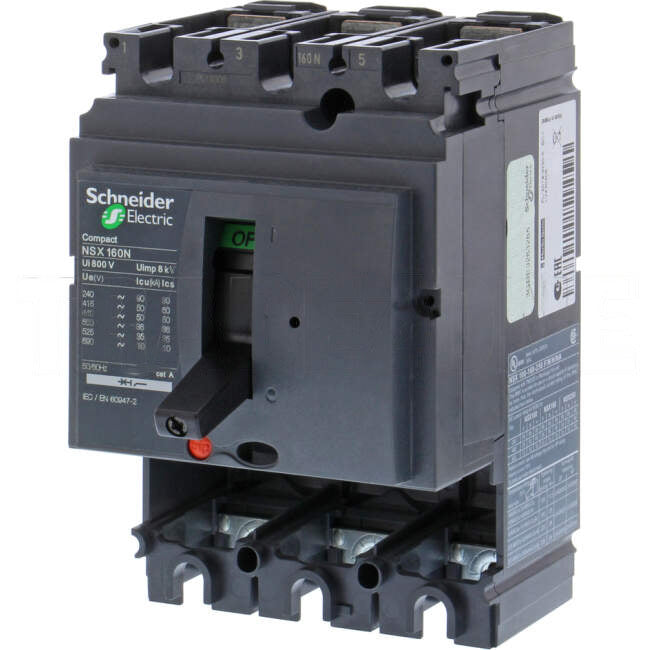

Schneider 160 Amp F50 SERIES Moulded Case Circuit Breaker MCCB 3 Pole 50kA

This is a 3 poles basic frame for Compact NSX160N. Compact NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX160N is part of Schneider Electric EcoStruxure Power architecture.

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Schneider
• Part Number - LV430406
• Also Known As ComPacT NSX Series Industrial Circuit Breakers CLILV430406
• Amperage Range 160 Amps
• Poles 3 Pole
• Trip Current 50 kA

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 1.5000
• Length Packaging (mm) 190
• Height Packaging (mm) 140
• Width Packaging (mm) 110
• Barcode 3606480006647
