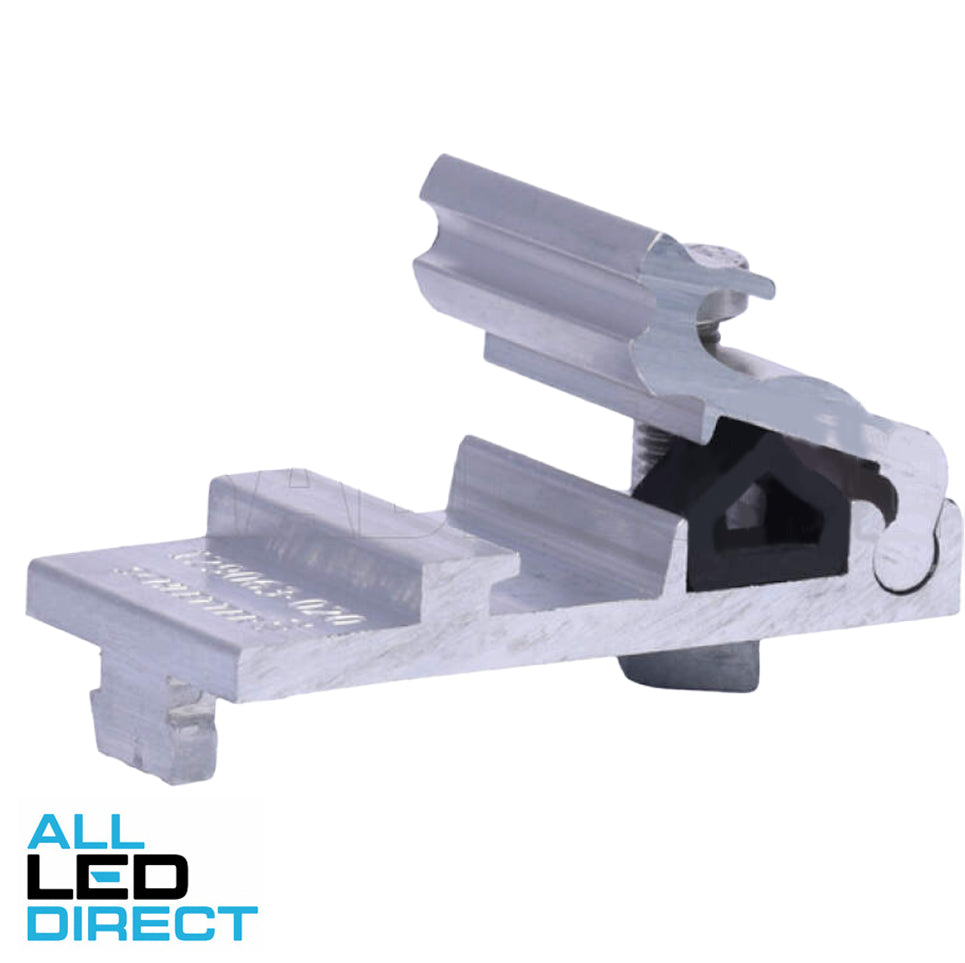

Schletter FixZ Pro Rapid Cross Connector 90 Pro

Tech Data Sheets
Installation Guide
Warranty
Videos
Product Details
About Schletter Fix Z Pro
The Schletter Fix Z Pro is designed for versatility, making it suitable for pitched, flat, and barrel roofs. This innovative solution offers a convenient way to connect overlapping rails with ease.
The Rapid cross connector is compatible with any rail that features a Schletter-Klick channel M8. It utilizes a single central fastening point with a bolt for quick and simple assembly. The new hook-in and clamp technique optimizes the distribution of forces, ensuring that profiles remain secure and cannot twist under unsymmetrical loads.
Now, the benefits of the Rapid system can be fully utilized with the cross rail system. It's especially ideal for metal roofs, including trapezoidal, corrugated, and Kliplok types. The upper module support is slightly increased by 90 mm increments, enhancing overall performance.
THE AFFORDABLE ADDITIONAL GIRDER
For metal roofs with a slope of less than 10°, installing modules parallel to the roof may not be ideal for maximum yield and optimal self-cleaning. Conventional support by struts is also often impossible or uneconomical because of the higher loads.
In such cases, flat elevation angles – such as can be achieved with FixZ Pro – offer a universal, extremely flexible and cost-effective solution with ideal load transfer into the roof covering.
TECHNICAL DETAILS
Field of application - Sheet metal roofs (trapezoidal, corrugated, Kliplok)
Material - Profile: Aluminum
Planning aid - Configuration and static dimensioning via the Schletter Configurator
Statics - Spanning tables available to suit AUST/NZ standard
Connection
Top: FixGrid Pro single-click connection
Bottom: M10 screw channel
Warranty Information
Warranty Method
Contact Manufacturer
Commercial Use
25 Years
Domestic Use
25 Years
Warranty Period
25 Years
Attributes
Brand |

Attributes:

Brand: Schletter
Part Number: 129063-020
Component Type: Other
Sub Category: Solar Racking Accessories
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 0.0000
Length Packaging (mm): 75
Height Packaging (mm): 50
Width Packaging (mm): 35
Barcode: 2000101034025
Barcode (Secondary): 4262371510601

Warranty Information:

Warranty Method
Contact Manufacturer
Commercial Use
25 Years
Domestic Use
25 Years
Warranty Period
25 Years

Shipping Information:

Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
