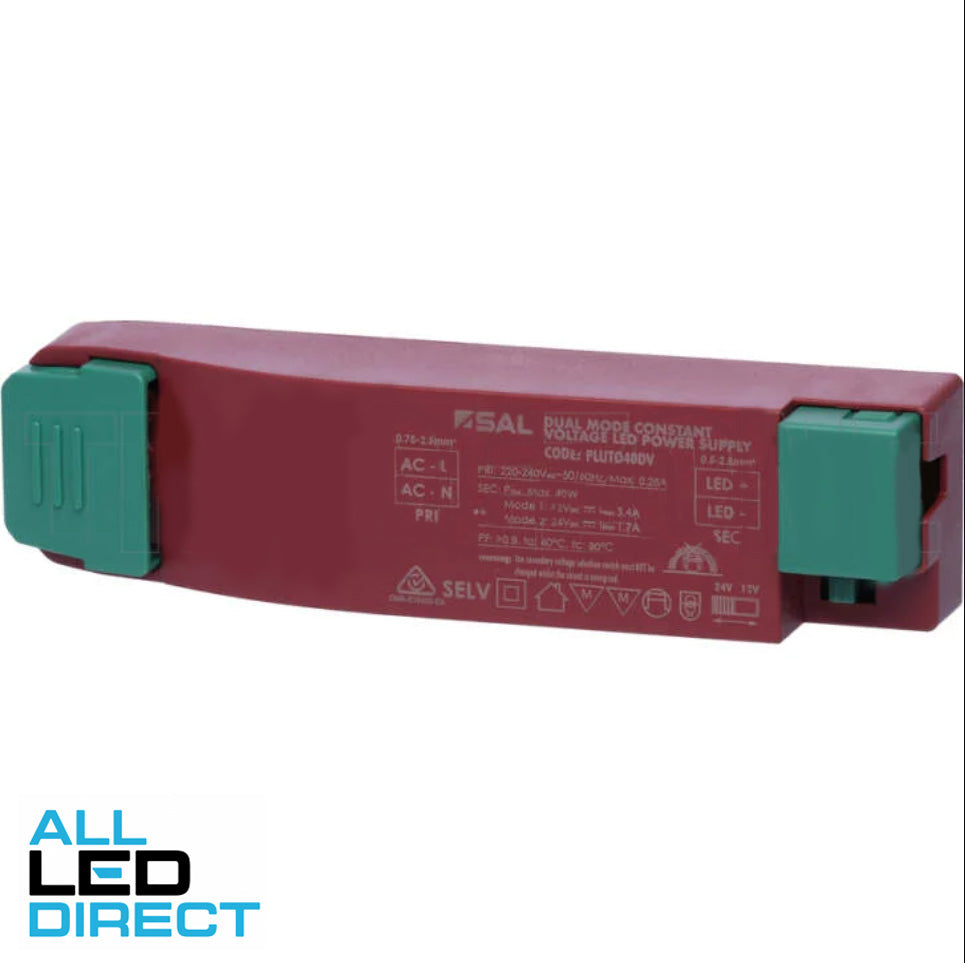

SAL 40 Watt PLUTO Dual Mode Constant LED Driver

Application
Versatile and compact dual voltage range with captive terminal screws, ideal for low wattage retrofit and maintenance lighting requirements
Design Specifications
SELV and EMC compliant
Safe no load operation, non-dimmable
Overload and short circuit protection
Hard wired termination design
40 watt capacity with selectable 12V DC or 24V DC secondary outputs, minimum load 5 watt
Electrical class II, Do Not Cover
Performance
Dimmable - NO
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
SAL
Part Number
PLUTO40DV
Dimmable
IP Rating
Sensor Degrees
Sensor Detection Range
Sub Category
LED Driver
Wattage Range
40 Watt
Weight (kg)
0.1699
Length (mm)
160
Height (mm)
30
Width (mm)
40
Length Packaging (mm)
160
Height Packaging (mm)
30
Width Packaging (mm)
40
Barcode
9328623132603
Barcode (Secondary)
2000101036661
Tech Data Sheets
PLUTO40DV - Tech Data Sheet
Download
