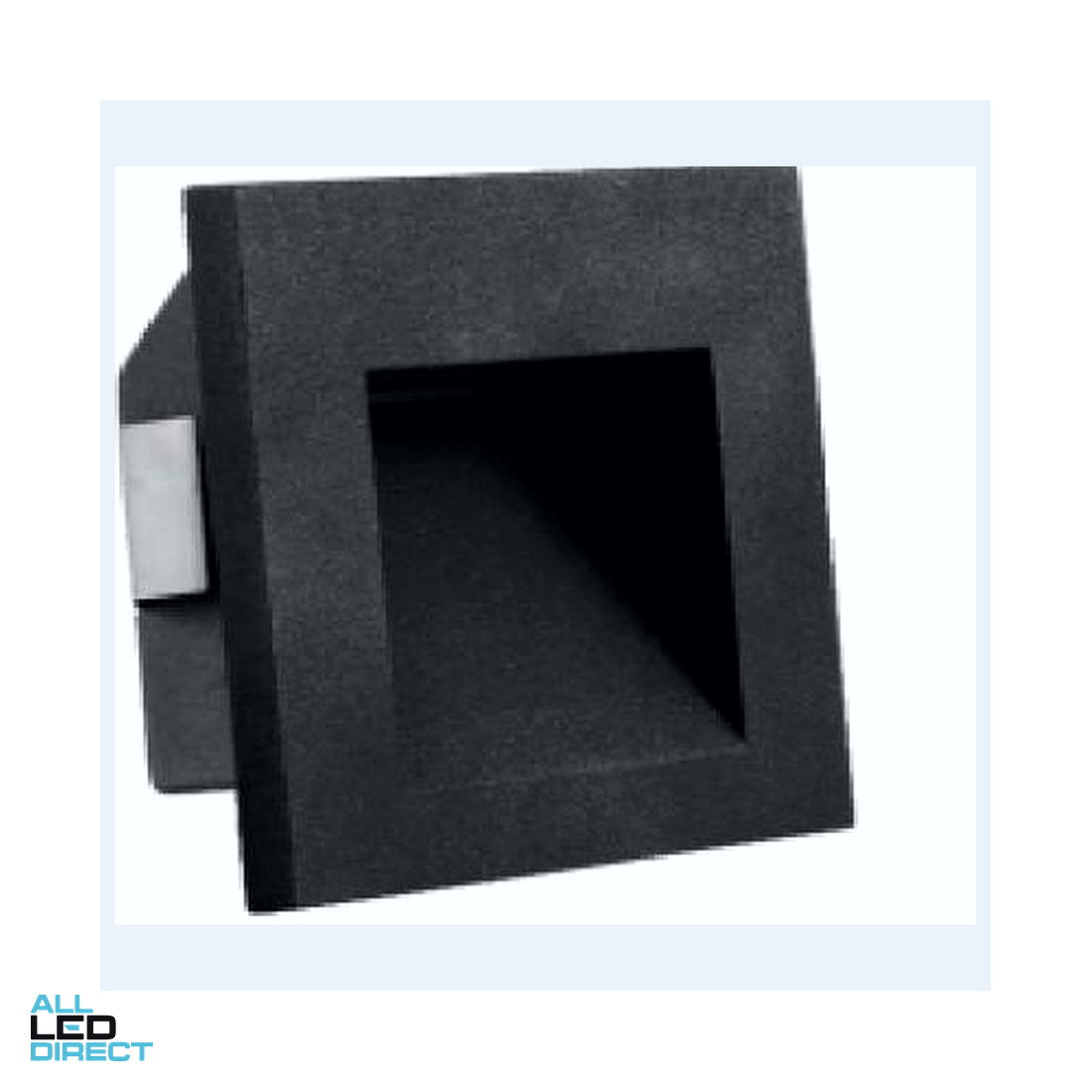

3W recessed wall light IP65

3 W recessed wall light LED. IP65. Recessed wall outdoor / damp.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Wall-Recessed-3W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
3W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
225 lm
Efficacy
75 lm/W
CCT
3000 / 6000 K
CRI
>80
Beam
120°
LED package
SMD
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, matt white
Installation
Recessed
Adjustability
Fixed
IP rating
IP65
Diameter × height
Ø 90 × 90 mm

Driver
Dimmable
No
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Wall-Recessed-3W
Wattage
3W
