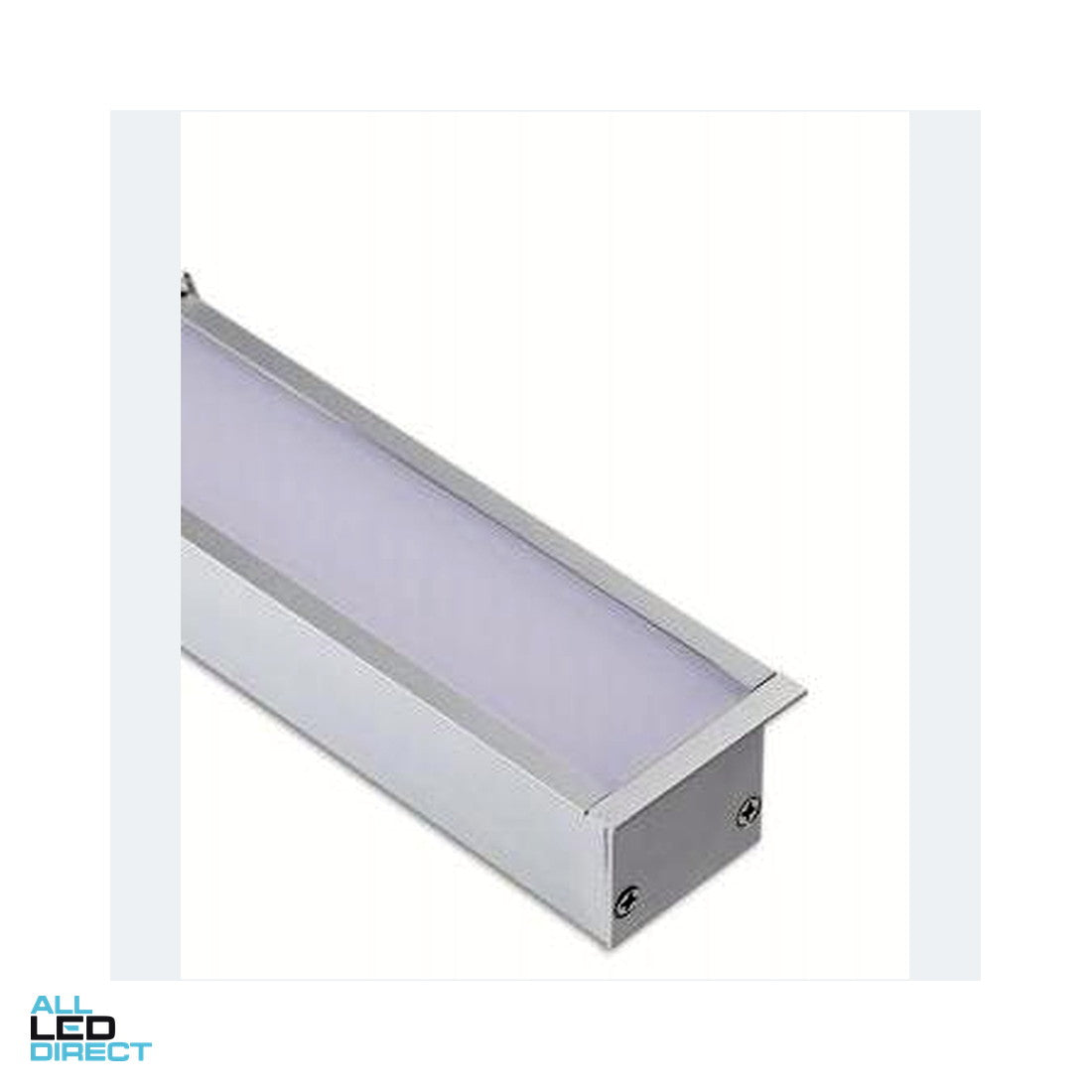

18W/m recessed linear IP44

Recessed linear N33 × 33 R LED. IP44. Linear recessed indoor.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Linear-N33x33R Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
18 W/m
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1800 lm
Efficacy
100 lm/W
CCT
3000 / 6000 K
CRI
>80
Beam
120°
LED package
SMD
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium
Diffuser
Polycarbonate
Finishes
Black, white, clear, opal
Installation
Recessed
Adjustability
Yes
IP rating
IP44
Section
33.5 × 33.5 mm

Driver
Driver included
No
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
N33x33R
Wattage
18 Watt/m

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
