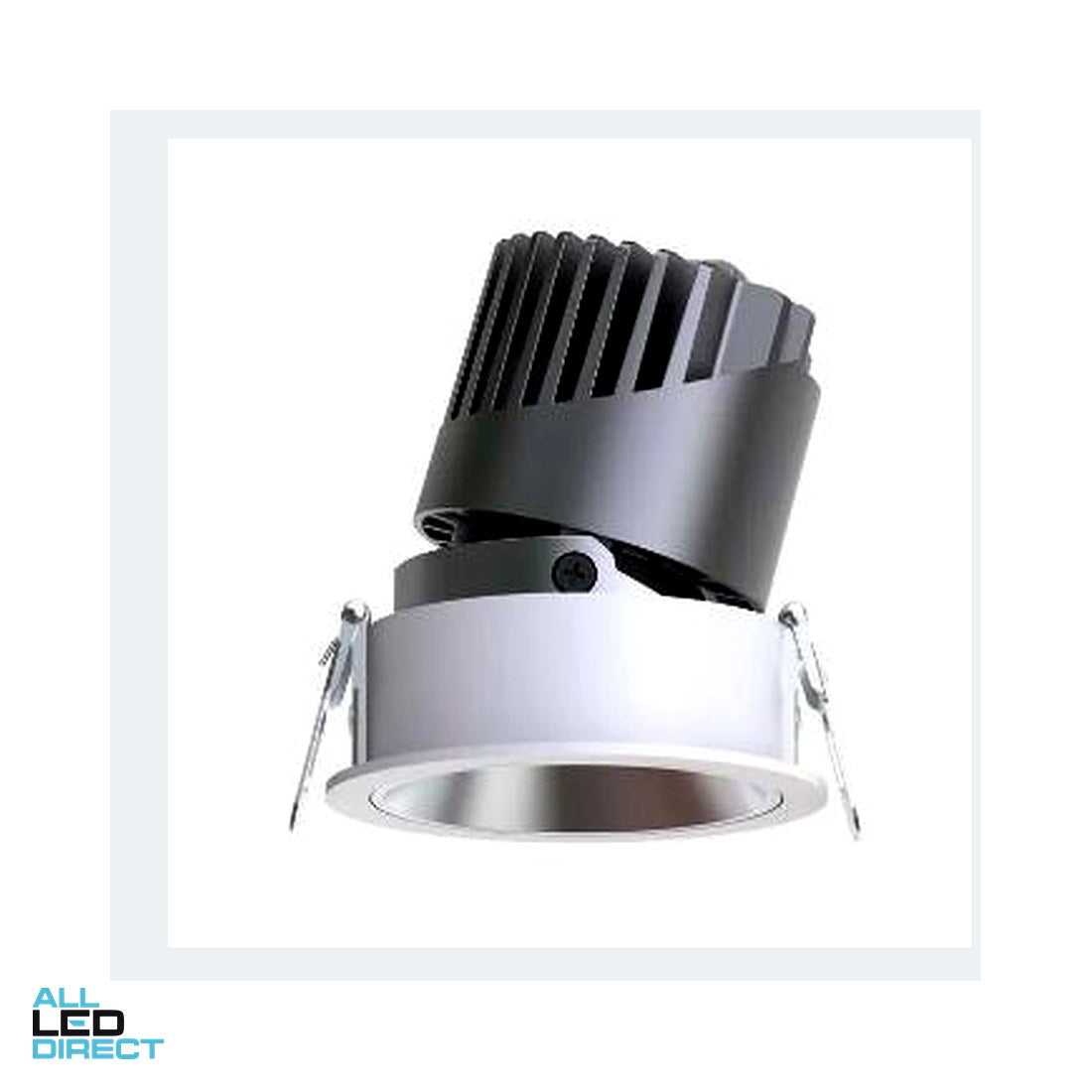

12W IP54 adjustable downlight

12 W recessed adjustable LED. IP54. 30° tilt. Recessed indoor commercial.

Quote via info@alledirect.com. Australia.

Datasheet ALD-ALDA53AR8012W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
12 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1080 lm
Efficacy
90 lm/W
CCT
2700 / 3000 / 4000 K
CRI
>90
Beam
18 / 24 / 36 / 55°
LED package
SMD

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Matt white, matt black, matt silver, gun black
Installation
Recessed
Adjustability
30° tilt
IP rating
IP54
Diameter × height
Ø 109 × 87 mm

Driver
Type
Dimmable or DALI
Driver included
Yes
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDA53AR8012W
Wattage
12 Watt
