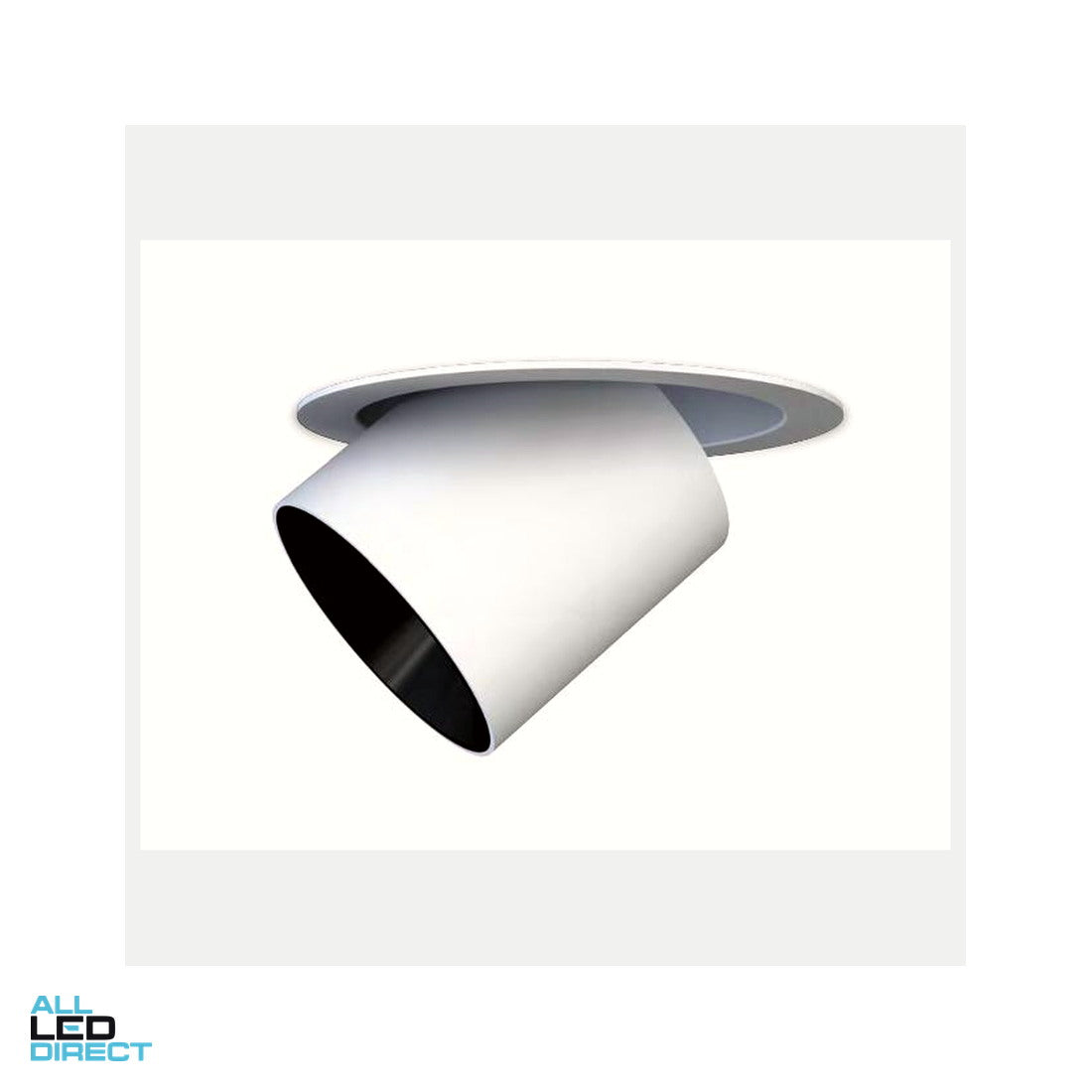

10W adjustable downlight

10 W recessed adjustable LED. IP20. 355° rotation / 40° tilt. Recessed indoor commercial.

Quote via info@alledirect.com. Australia.

Datasheet ALD-ALDALD60x100-10W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
10 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
891 lm
Efficacy
89.1 lm/W
CCT
2700 / 3000 / 4000 K
CRI
>95
Beam
Custom
LED package
SMD

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Matt white, matt black, matt silver, gun black
Installation
Recessed
Adjustability
355° rotation / 40° tilt
IP rating
IP20
Diameter × height
Ø 115 × 84 mm

Driver
Type
Dimmable or DALI
Driver included
Yes
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDALD60x100-10W
Wattage
10 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
