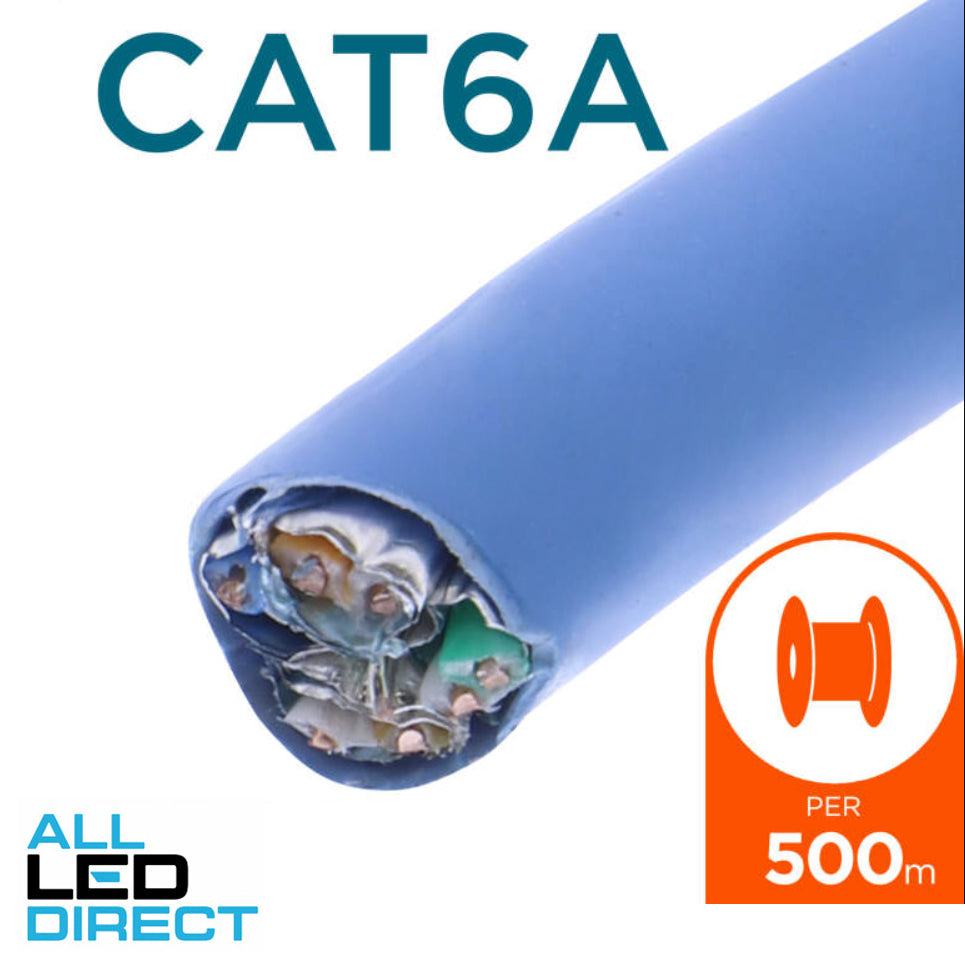

R&M CAT6A 4 Pair Installation Cable U/FTP Shielded Blue 500 Metre Drum

Product Details
R&M CAT6A 4 Pair Installation Cable U/FTP Shielded Blue 500 Metre Drum by Reichle & De-Massari is a high-quality installation cable designed for data transmission frequencies of up to 650 MHz. The Reichle & De-Massari R844117 cable features a foil shielding of pairs, 100 Ohm impedance, and is standardised to ISO/IEC 11801 ed. 2.2, IEC 61156-5 2nd ed., EN 50173-1, EN 50288-x-1, with a fire rating of IEC 60332-1, IEC 60754-2, and IEC 61034. The cable has a category of Cat.6A ISO, with a Cu cable shielding of U/FTP, and a number of fibres/conductors of 8. The cable jacket material is LSZH, with a cable jacket characteristic of being metal-free, zero-halogen, and flame-retardant.
Key Features
Cable Class: Installation Cable
Category: Cat.6A ISO
Cu Cable Shielding: U/FTP
Number of Fibres/Conductors: 8
Stranding: 4P
Cable Jacket Material: LSZH
Cable Jacket Characteristics: metal-free, zero-halogen, flame-retardant
Cable Protection: no protection
Cable Overall Diameter: nominal value Ø 7.1 - 7.6 mm
Fiber/Conductor Diameter: AWG23
Main Benefits
High-Speed Data Transmission: Supports data transmission frequencies of up to 650 MHz
Reliable Connection: Features a foil shielding of pairs and 100 Ohm impedance for a stable connection
Compliance with International Standards: Standardised to ISO/IEC 11801 ed. 2.2, IEC 61156-5 2nd ed., EN 50173-1, EN 50288-x-1
Fire Safety: Meets fire rating standards of IEC 60332-1, IEC 60754-2, and IEC 61034
Durable Cable: Made with a metal-free, zero-halogen, and flame-retardant cable jacket material

Attributes:

Brand: Reichle & De-Massari
Part Number: R844117
Also Known As: R+M Blue cat6a cable
Cable Drum Length: 500 Metres
Cable Sheath Colour: Blue
Category Type: CAT6A
Data Cable Screening Type: U/FTP (Unshielded Foiled Twisted Pair)
Data Cable Type: Shielded
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 58.0000
Length Packaging (mm): 400
Height Packaging (mm): 330
Width Packaging (mm): 400
Barcode: 2000100933626
