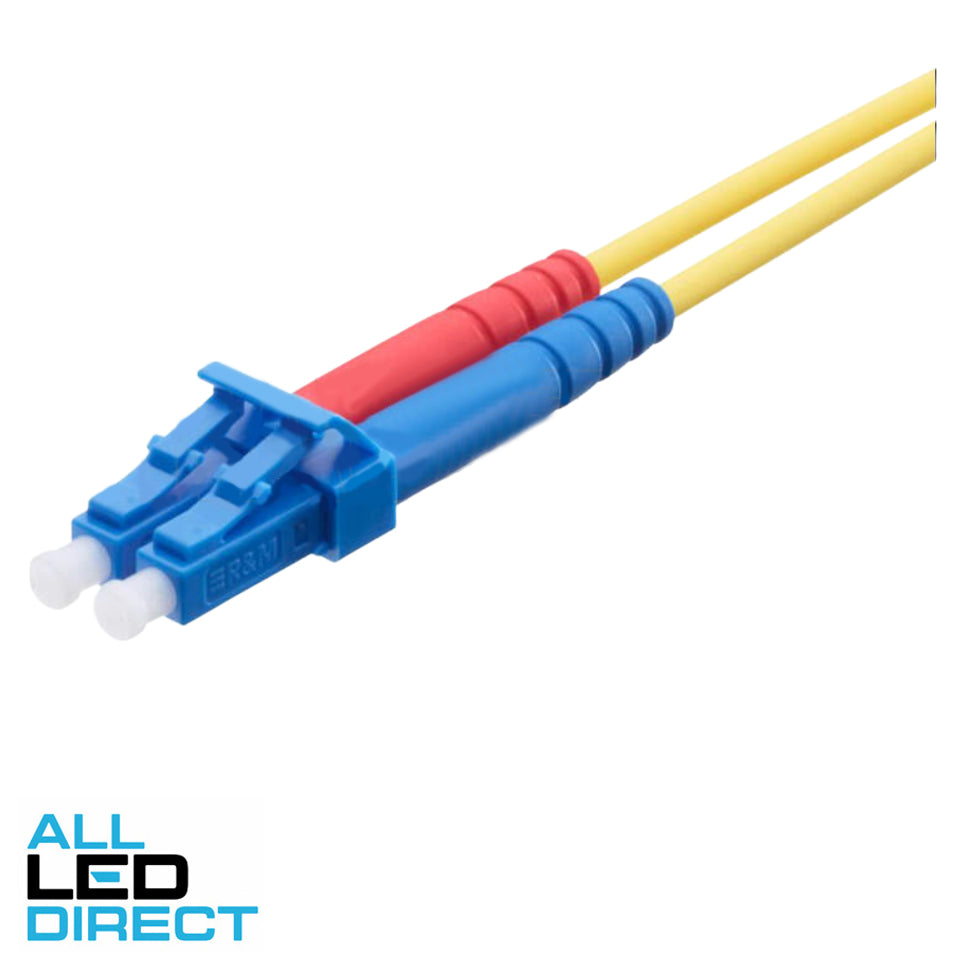

R&M 1 Metre FO LC-Duplex PC/UPC Grade C Duplex Figure 8 Patch Lead

Duplex figure "8" Patch cord, polarity A-A , with cable I-V(ZN)H F8 2.0x 4.1 mm (±0.15) FRLSZH, fiber Singlemode (SM) G.657.A2 (covers G.652.D, G.657.A1+B2, OS1, OS2), length 1.0 m / 3 ft 3 in.
Assembled side A with LC-Duplex / PC, connector housing blue, side B with LC-Duplex / PC, connector housing blue. Zirconia (ceramic) ferrule, according IEC 61755-3-1/2 and patch cord qualified according IEC 61753-1 category C(controlled environment), material UL 94 V-0.
Optical Specification Side A:
- Performance according IEC 61753-1 (Table A.12)
- Attenuation Grade C
- Return Loss Grade 2
Optical Specification Side B:
- Performance according IEC 61753-1 (Table A.12)
- Attenuation Grade C
- Return Loss Grade 2
Mechanical specifications:
- Mating cycles: delta IL < 0.2 dB after 500 mating cycles
- Pull-out force patch cord: ≥ 100 N
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
Reichle & De-Massari
Part Number
R817668
Also Known As
7611821037439
Category Type
Colour
Patch Lead Length
1 Metre
Railing Length
Sub Category
Data Patch Leads
Thickness
Weight (kg)
0.0000
Length (mm)
1000
Height (mm)
4
Width (mm)
4
Length Packaging (mm)
1000
Height Packaging (mm)
4
Width Packaging (mm)
4
Barcode
2000101048435
Tech Data Sheets |

Attributes:

Brand: Reichle & De-Massari
Part Number: R817668
Also Known As: 7611821037439
Patch Lead Length: 1 Metre
Sub Category: Data Patch Leads
Freight Levy: Freight Applies To All Postcodes
Weight (kg): 0.0000
Length (mm): 1000
Height (mm): 4
Width (mm): 4
Length Packaging (mm): 1000
Height Packaging (mm): 4
Width Packaging (mm): 4
Barcode: 2000101048435
