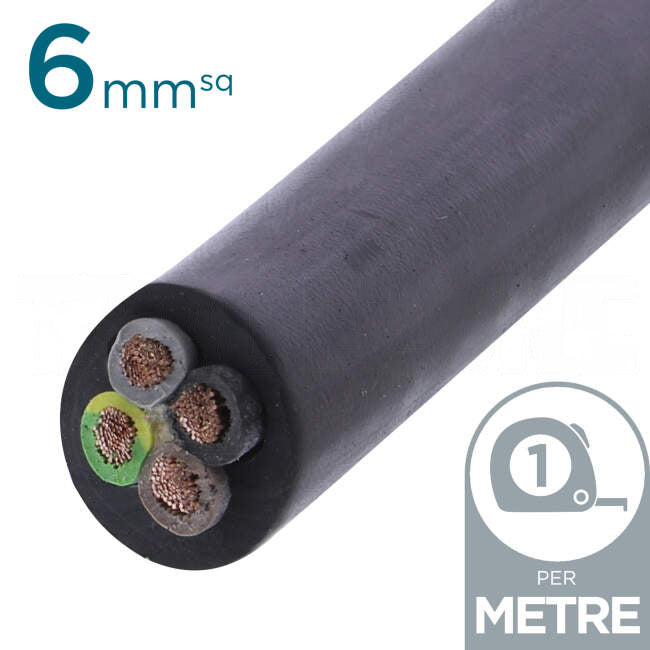

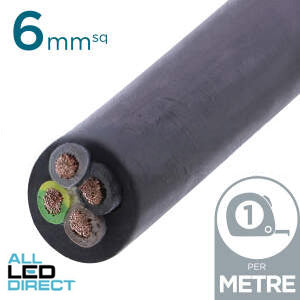

Power Flex Cables 6mm 3 Core & Earth H07 Rubber Insulated Cable Black Per Metre

Power Flex Cables 6mm 3 Core & Earth H07 Rubber Insulated Cable Black Per Metre by Power Flex Cables is a robust and flexible cable engineered for demanding environments. The Power Flex Cables H074G6.0 is ideal for supplying power to low voltage appliances, including electric motors and submersible pumps. It excels in both fixed and mobile installations, even under adverse conditions such as oily, acidic, or alkaline environments. The thermosetting rubber insulation and outer sheath provide excellent resistance to mechanical stress, ensuring durability and reliability for various electrical applications. The cable is available per metre for customized lengths to meet project needs.
Key Features
Conductor Material: Copper Class 5 for enhanced flexibility and conductivity
Voltage Rating: 0.6/1kV suitable for low voltage applications
Outer Sheath: Thermosetting rubber (type EM2) for superior protection
Insulation Material: Thermosetting rubber (type EI4) for added durability
Cable Size: 6mm for versatile applications
Number of Cores: 3 core & earth configuration for comprehensive electrical connections
Sheath Colour: Black for easy identification and aesthetics
Installation Flexibility: Suitable for fixed or mobile applications
Resistance: Designed for use in challenging environments, including oily and acidic conditions
Main Benefits
Reliable Performance: The Power Flex Cables H074G6.0 provides excellent resistance to mechanical stress, ensuring durability and reliability for various electrical applications
Flexible Installation: The cable is suitable for fixed or mobile applications, making it ideal for a range of projects
Low Voltage Applications: The 0.6/1kV voltage rating makes it suitable for low voltage applications, including electric motors and submersible pumps
Customizable Lengths: The cable is available per metre for customized lengths to meet project needs
Robust Construction: The thermosetting rubber insulation and outer sh

Attributes:

Brand: Power Flex Cables
Part Number: H074G6.0
Also Known As: 3c+e 3c&e 3 Core + Earth Pump Cable Bore Cable Submersible Pump Cable Pump Cables Bore Cables H07
Cable Conductor Material: Annealed Copper
Cable Core Colours: Grey, Black, Brown & Earth
Cable Drum Length: Per Metre
Cable Insulation & Sheath Material: XLPE/XLPE
Cable Sheath Colour: Black
Cable Size mm: 6mm
Cable Voltage: 600/1000 Volts
Number of Cores: 3 Core & Earth
Ordinary or Heavy Duty: Ordinary Duty
Sub Category: Flexible Cable

Weight (kg): 0.4700
Length Packaging (mm): 1000
Height Packaging (mm): 27
Width Packaging (mm): 27
Barcode: 2000100824962

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
2 Years
Domestic Use
2 Years
Warranty Period
2 Years
