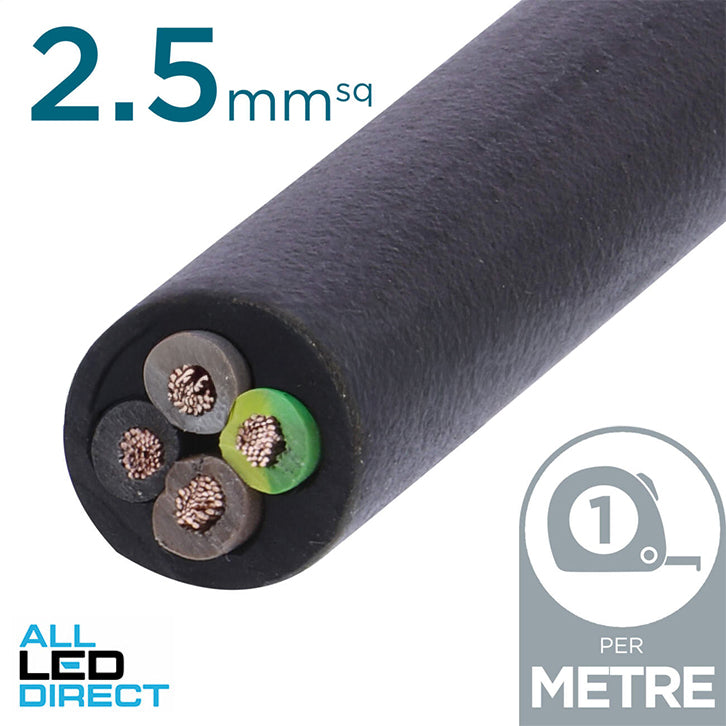

Power Flex Cables 2.5mm 3 Core & Earth H07 Rubber Insulated Cable Black Per Metre

The Power Flex Cables 2.5mm 3 Core & Earth H07 Rubber Insulated Cable Black Per Metre by Power Flex Cables is a robust and flexible cable engineered for demanding environments. Power Flex Cables H074G2.5 is ideal for supplying power to low voltage appliances, including electric motors and submersible pumps. This cable excels in both fixed and mobile installations, even under adverse conditions such as oily, acidic, or alkaline environments. The thermosetting rubber insulation and outer sheath provide excellent resistance to mechanical stress, ensuring durability and reliability for various electrical applications. It has a 2.5mm cable size, 3 core and earth configuration, and is available per metre for customized lengths to meet project needs.
Key Features
Conductor Material: Copper Class 5 for enhanced flexibility and conductivity
Voltage Rating: 0.6/1kV suitable for low voltage applications
Outer Sheath: Thermosetting rubber (type EM2) for superior protection
Insulation Material: Thermosetting rubber (type EI4) for added durability
Cable Size: 2.5mm for versatile applications
Number of Cores: 3 core & earth configuration for comprehensive electrical connections
Sheath Colour: Black for easy identification and aesthetics
Installation Flexibility: Suitable for fixed or mobile applications
Resistance: Designed for use in challenging environments, including oily and acidic conditions
Main Benefits
Reliable Performance: Power Flex Cables H074G2.5 provides durable and reliable connections for low voltage appliances
Flexible Installation: Suitable for both fixed and mobile installations, making it ideal for various electrical applications
Resistance to Adverse Conditions: Designed to withstand oily, acidic, or alkaline environments, ensuring longevity and performance
Customizable Lengths: Available per metre for customized lengths to meet project needs
Low Voltage Applications: Suitable for supplying power to low voltage appliances, includ

Attributes:

Brand: Power Flex Cables
Part Number: H074G2.5
Also Known As: 3c+e 3c&e 3 Core + Earth Pump Cable Bore Cable Submersible Pump Cable Pump Cables Bore Cables 2.5mm3C Clearance off cut offcut
Cable Conductor Material: Annealed Copper
Cable Core Colours: Grey, Black, Brown & Earth
Cable Drum Length: Per Metre
Cable Insulation & Sheath Material: XLPE/XLPE
Cable Sheath Colour: Black
Cable Size mm: 2.5mm
Cable Voltage: 600/1000 Volts
Number of Cores: 3 Core & Earth
Ordinary or Heavy Duty: Ordinary Duty
Sub Category: Flexible Cable

Weight (kg): 0.2500
Length Packaging (mm): 300
Height Packaging (mm): 20
Width Packaging (mm): 20
Barcode: 2000100824948
