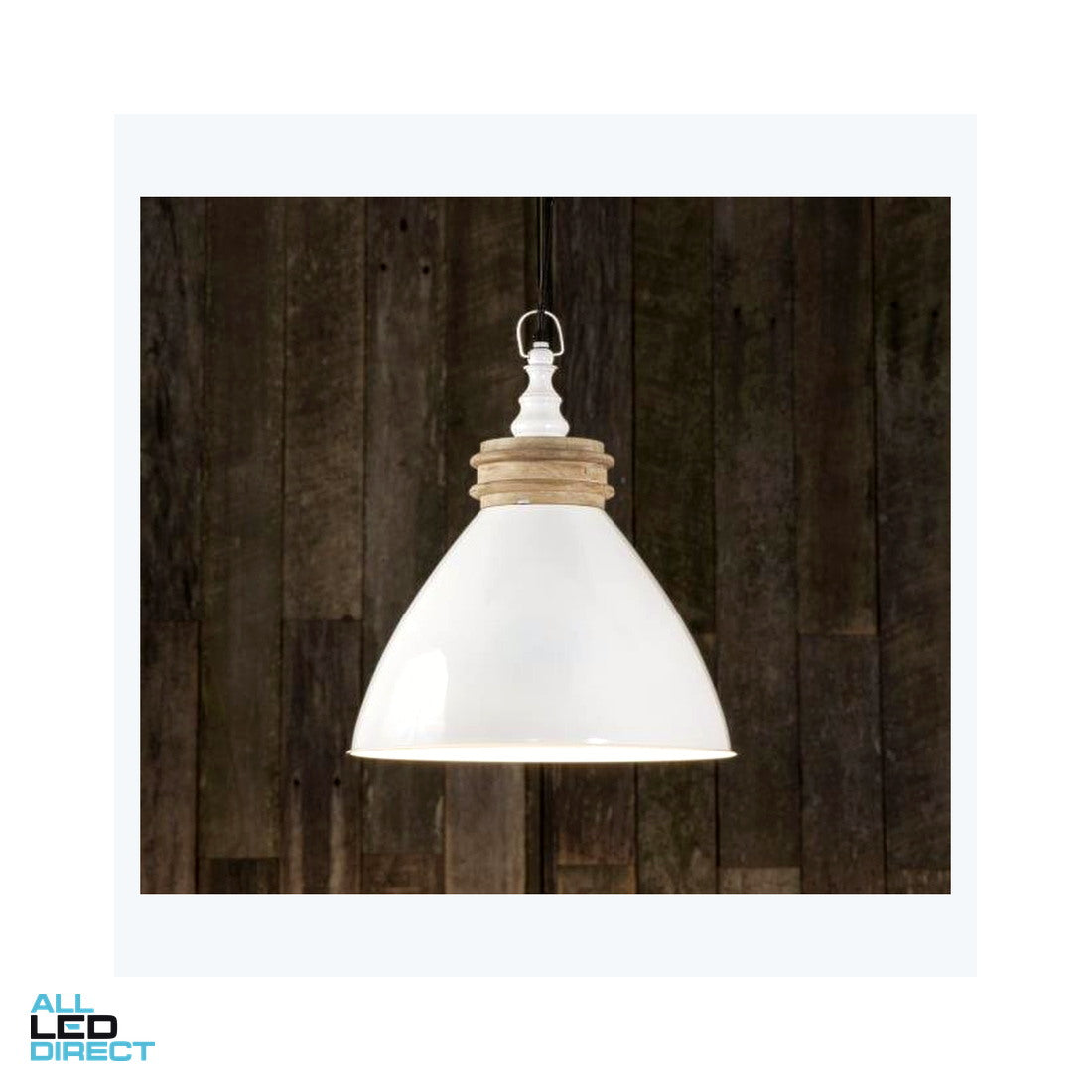

40W pendant bell

Cloche 40 W LED. IP20. Pendant.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Pendant-Bell-40W-240deg Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
40 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
CCT
3000 / 4000 K
Beam
240°
LED package
E27 (lampholder)
Colour name
Warm white / Cool white

Mechanical
Body
Steel
Diffuser
Steel
Finishes
White, custom
Installation
Surface mount
Adjustability
Fixed
IP rating
IP20
Diameter × height
Ø 380 × 380 mm
Drop
Plus cable; 520 mm total on source

Driver
Type
Dimmable (Phase cut)
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Pendant-Bell-40W-240deg
Wattage
40 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
