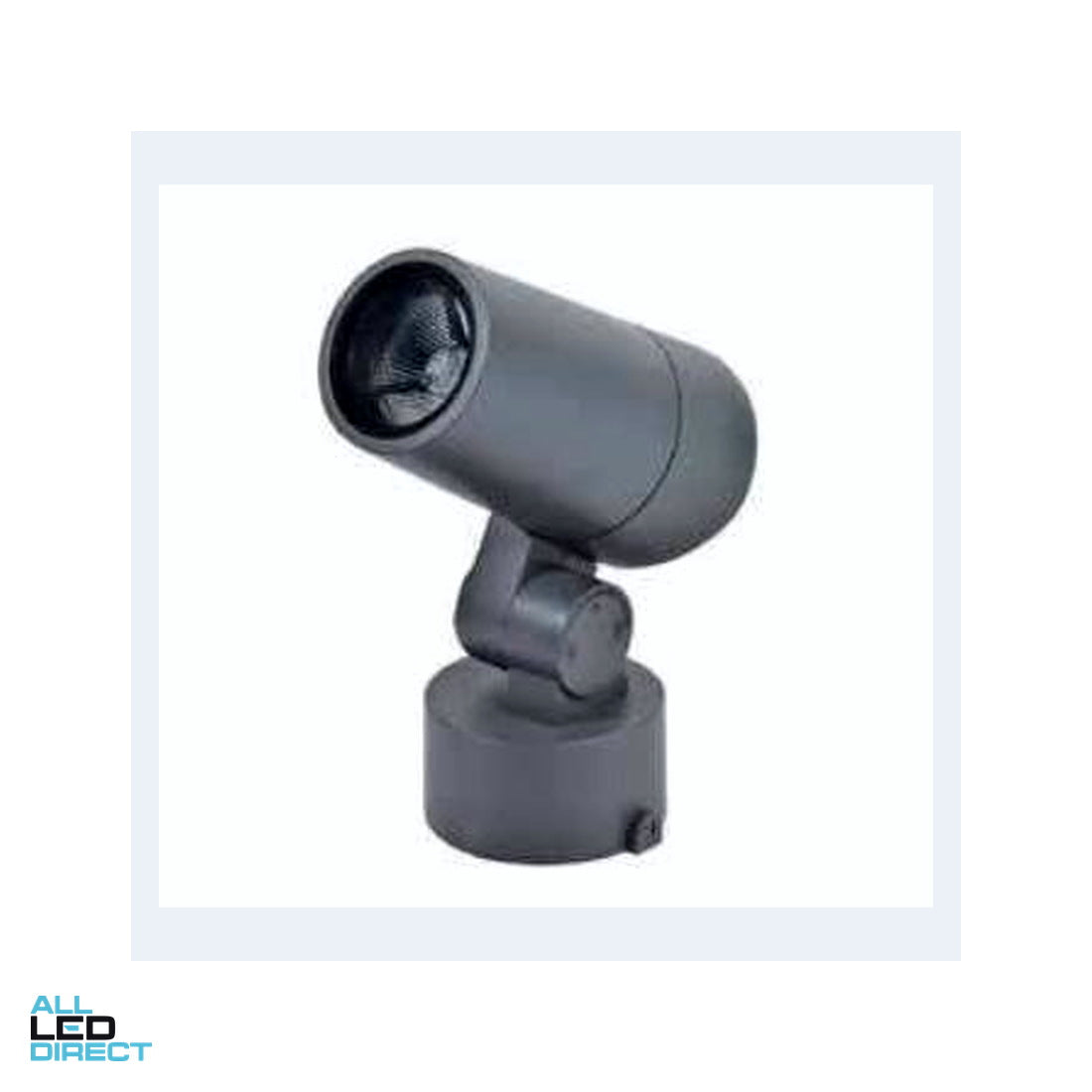

20W outdoor spot IP65

Spot ALDRSP20W 20 W LED. IP65. Tilt. 24 V DC outdoor.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Spot-ALDRSP20W Rev A.

Electrical
Rated voltage
24 V DC
Frequency
50 Hz
System power
20 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1400 lm
Efficacy
70 lm/W
CCT
3000 / 4000 K
CRI
>80
Beam
15 / 23 / 38°
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Surface mount
Adjustability
Tilt
IP rating
IP65
Diameter × height
Ø 105 × 210 mm

Driver
Type
Dimmable (Phase cut)
Dimmable
On/off
Driver included
No, remote
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDRSP20W
Wattage
20 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
