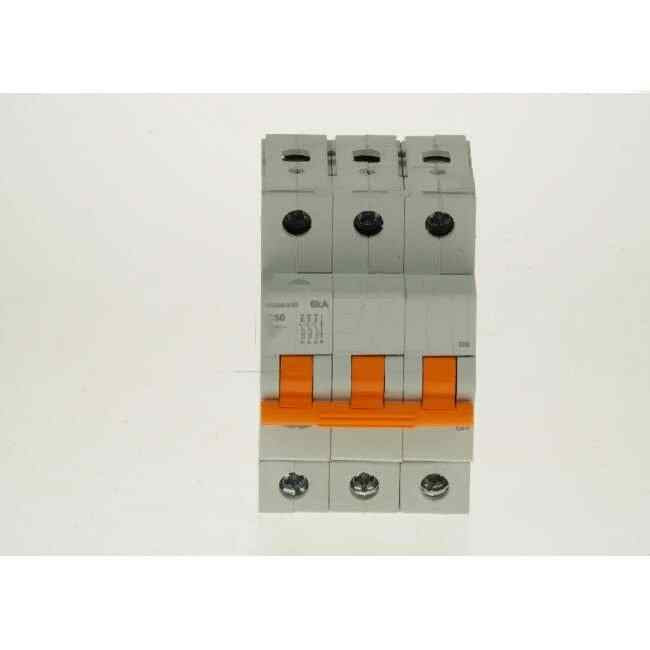

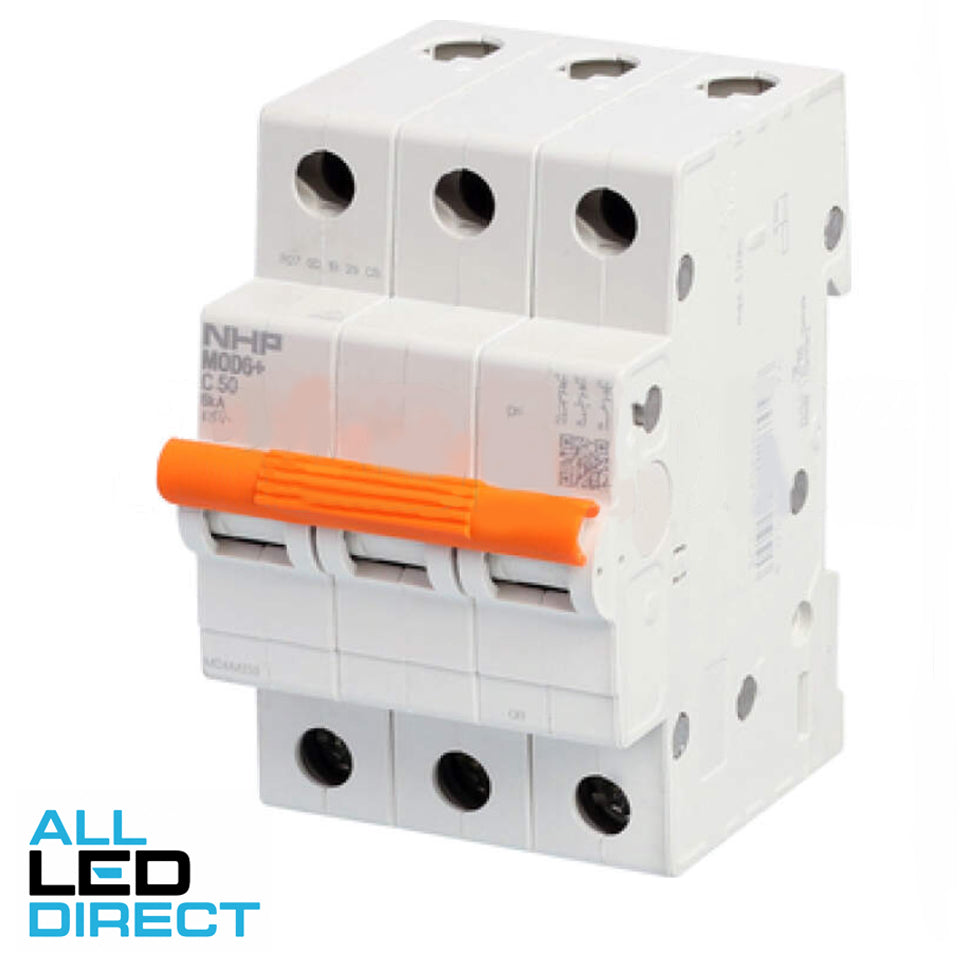

NHP 50 Amp MOD6 Miniature Circuit Breaker MCB C Curve 3 Pole 6kA

• Complies with AS/NZS 60898
• MOD6 MCBs feature 6kA short circuit rating
• C curve tripping characteristic
• Pad lockable and sealable toggle restricts unauthorized action
• Free tripping mechanism even if toggle is locked or sealed ON or OFF
• Fast connection pin/fork busbar comb or busbar chassis
• Suits pole covers, loadcentres and Concept One Panelboards
• Approval No. N17481 or RCM
• For general purpose light and power applications

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand NHP
• Part Number - MOD6350
• Also Known As NHPMOD6350
• Amperage Range 50 Amps
• Poles 3 Pole
• Trip Current 6 kA
• Trip Curve C Curve
• Voltage 415 Volts

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.3600
• Length (mm) 76
• Height (mm) 86
• Width (mm) 54
• Length Packaging (mm) 90
• Height Packaging (mm) 54
• Width Packaging (mm) 75
• Barcode 2000100213667
• Barcode (Secondary) 5413656910596
