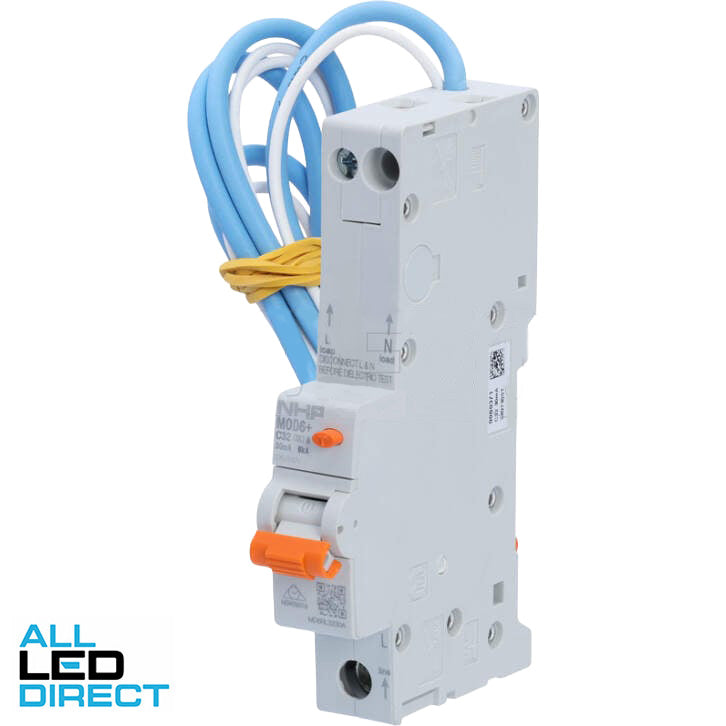

NHP 32 Amp MOD6+ Longbody MCB/RCD RCBO C Curve 1 Pole + Neutral 30mA 6kA Type A

NHP MOD6+ residual current devices (RCDs) offer a 6kA rating with a proven history in domestic and commercial applications. The MOD6+ RCDs can be easily installed into NHP loadcenters, as well as MOD6+ RCBOs into MOD6+ distribution Panelboards.
Breaking Capacity: 6kA
Current Rating: 10A C Curve
Residual Current Sensitivity: 30mA Type A
Pole Configuration: 1 Pole and Neutral
Design: Longbody for easy installation
Applications: Ideal for residential, commercial, and industrial setups
Protection Features: Combines overload, short circuit, and residual current protection
Compliance: Meets stringent safety and performance standards
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
NHP
Part Number
MD6RL3230A
Amperage Range
32 Amps
Max Cable Size
Number Of DIN Modules
1 Module
Poles
1 Pole
Standard
Sub Category
MCB/RCD RCBO Combos
Breaking Capacity
6 kA
Trip Curve
C Curve
Type
Type A
Voltage
240 Volts
Weight (kg)
0.2000
Length (mm)
76
Height (mm)
116
Width (mm)
18
Length Packaging (mm)
145
Height Packaging (mm)
30
Width Packaging (mm)
88

Attributes:

Brand: NHP
Part Number: MD6RL3230A
Amperage Range: 32 Amps
Number Of DIN Modules: 1 Module
Poles: 1 Pole
Sub Category: MCB/RCD RCBO Combos
Breaking Capacity: 6 kA
Trip Curve: C Curve
Type: Type A
Voltage: 240 Volts
Weight (kg): 0.2000
Length (mm): 76
Height (mm): 116
Width (mm): 18
Length Packaging (mm): 145
Height Packaging (mm): 30
Width Packaging (mm): 88
Barcode: 8012542653455
