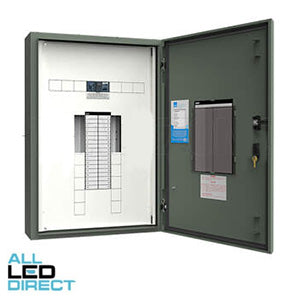

NHP 24 Pole CONCEPT PLUS Din-T Distribution Board 250 Amp NC Chassis & 160 Amp Isolator Main Switch Grey IP42

NHP 24 Pole CONCEPT PLUS Din-T Distribution Board 250 Amp NC Chassis & 160 Amp Isolator Main Switch Grey IP42 by NHP is a distribution board that meets the standard AS/NZS 61439-3. The NHP CPL24M160G features a compact 160 A or 250 A main switch, with options for isolator or circuit breaker main switch. It has modular sizes up to 96-Way and knockouts for up to 18 modules DIN equipment. The product also includes accessory modules, removable gland plates, and a door fitted independent of escutcheon. The NHP CPL24M160G has a right-hand door hinging and semi-flush door swing handle, with an IP42 rating and an option for IP52. It also has a chassis tee-off isolator option.
Key Features
Compliance Standard: Meets AS/NZS 61439-3
Main Switch Options: Compact 160 A or 250 A main switch, with options for isolator or circuit breaker main switch
Modular Sizes: Up to 96-Way
DIN Equipment: Knockouts for up to 18 modules
Accessory Modules: Included for added functionality
Gland Plates: Removable for easy access
Door Fitting: Door fitted independent of escutcheon
IP Rating: IP42, with option for IP52
Main Benefits
Flexible Configuration: Allows for customisation to meet specific needs
Easy Installation: Semi-flush door swing handle and removable gland plates make installation easier
Reliable Performance: Meets AS/NZS 61439-3 standard for reliable operation
Space Efficiency: Compact design with modular sizes up to 96-Way

Attributes:

Brand: NHP
Part Number: CPL24M160G
Chassis Or Din: Both
Complete With Main Switch: Yes
IP Rating: IP42
Main Switch Rating: 160 Amp
Sub Category: Distribution Boards

Weight (kg): 29.0000
Length (mm): 200
Height (mm): 648
Width (mm): 600
Length Packaging (mm): 700
Height Packaging (mm): 660
Width Packaging (mm): 240
Barcode: 9321807001801

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
