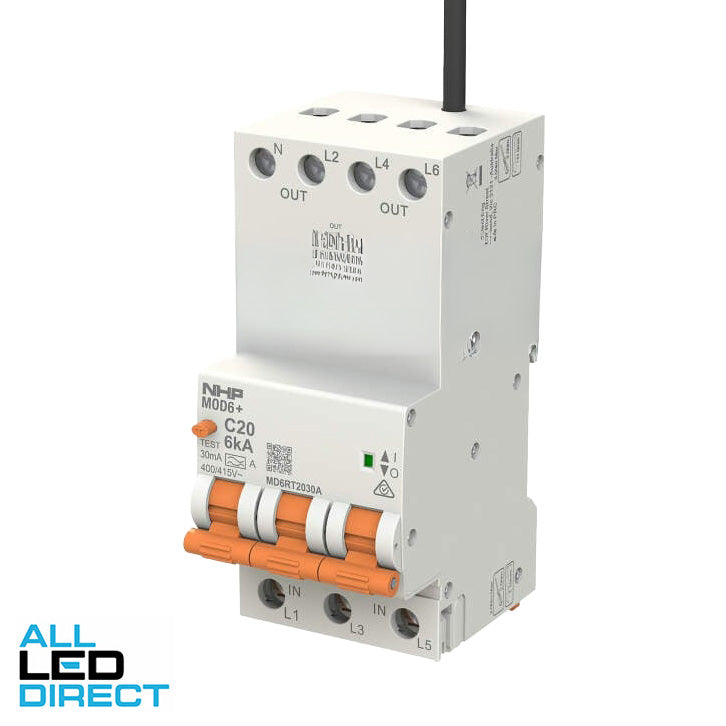

NHP 20 Amp MOD6+ Longbody MCB/RCD RCBO C Curve 3 Pole + Neutral 30mA 6kA Type A

The NHP 20 Amp MOD6+ Longbody MCB/RCD RCBO (Residual Current Breaker with Overcurrent Protection) is a high-performance, versatile protection device designed for three-phase electrical circuits. Featuring a 3 Pole + Neutral configuration, this device provides 30mA Type A sensitivity, ensuring reliable protection against leakage currents. The C Curve trip characteristic is well-suited for circuits with inductive loads such as motors. With a 6kA short-circuit rating, it offers exceptional safety and reliability. The Longbody design allows for easier installation and space efficiency, making it a great option for both residential and commercial applications. The MOD6+ range is known for its robust performance and cost-effective protection solutions.
Key Features:
20 Amp current rating for effective protection in three-phase circuits.
3 Pole + Neutral configuration for efficient overload and leakage current protection.
30mA Type A sensitivity for reliable detection of leakage faults.
C Curve trip characteristic, ideal for inductive loads like motors.
6kA short-circuit rating for high-level protection and safety.
Longbody design for easier installation and better space management.
Suitable for both residential and commercial electrical systems.
Part of the NHP MOD6+ range, offering robust, cost-effective protection solutions.
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
NHP
Part Number
MD6RT2030A
Amperage Range
20 Amps
Max Cable Size
Number Of DIN Modules
3 Module
Poles
3 Pole + N
Standard
Sub Category
MCB/RCD RCBO Combos
Breaking Capacity
6 kA

Attributes:

Brand: NHP
Part Number: MD6RT2030A
Amperage Range: 20 Amps
Number Of DIN Modules: 3 Module
Poles: 3 Pole + N
Sub Category: MCB/RCD RCBO Combos
Breaking Capacity: 6 kA
Trip Curve: C Curve
Type: Type A
Voltage: 415 Volts
Weight (kg): 0.5500
Length (mm): 54
Height (mm): 118
Width (mm): 77
Length Packaging (mm): 54
Height Packaging (mm): 118
Width Packaging (mm): 77
Barcode: 2000101031994
Barcode (Secondary): 9321807006196
