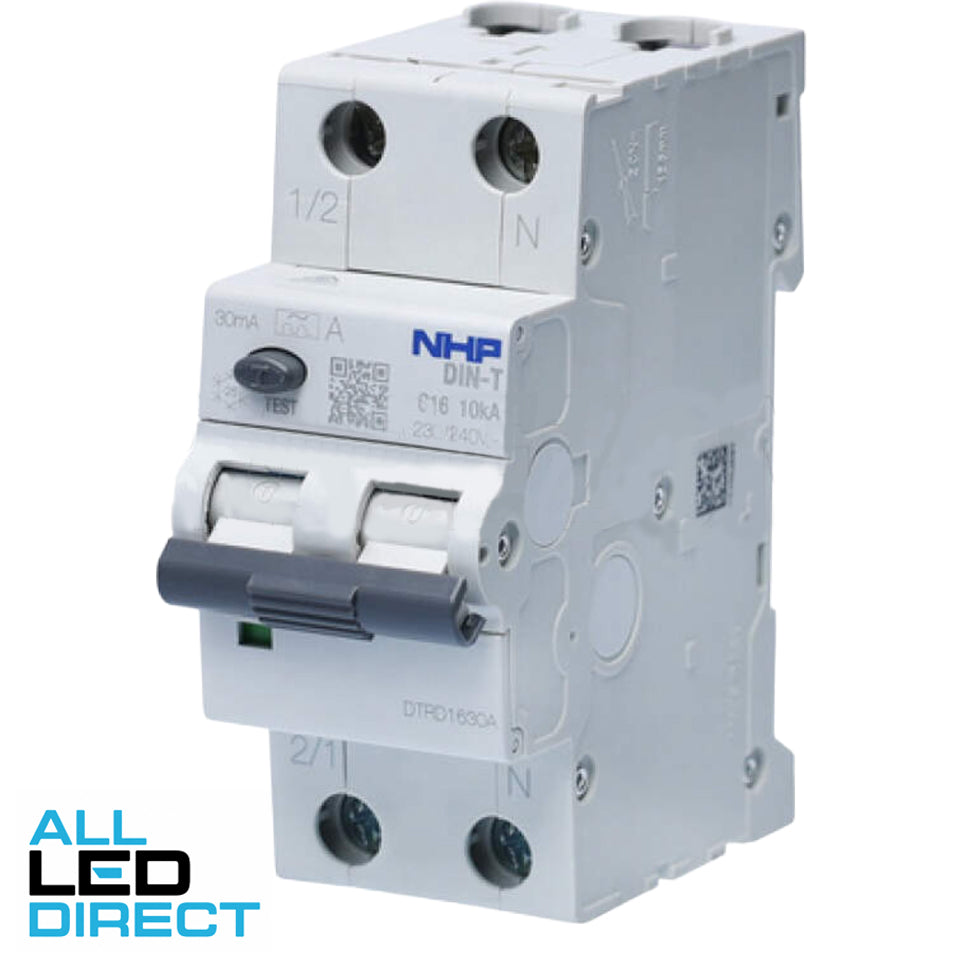

NHP 16 Amp DIN-T MCB/RCD RCBO C Curve 1 Pole + Switched Neutral Type A 10kA 30mA

NHP’s DIN-T range of residual current devices (RCDs) are a high-performance electrical safety solution designed for commercial, industrial and mining applications. These RCDs offer a high level of selectivity, with sensitives including 10mA, 30mA, 100mA and 300mA, and types starting at Type A for general purpose applications through to Type F and B for more complex loads
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
NHP
Part Number
DTRD1630A
Also Known As
RCCB
Residual Circuit Breaker
Residual Circuit Breakers
GFCI
GFI
ALCI
RCD
Safety Switch
Safety Switches
Miniature Circuit Breaker
Residual Current Device
NHPDTRD1630A
Amperage Range
16 Amps
Max Cable Size
35mmSq
Number Of DIN Modules
2 Module
Poles
1 Pole + N
Standard
Sub Category
MCB/RCD RCBO Combos
Breaking Capacity
10 kA
Trip Curve
C Curve
Type
Type A
Voltage
240 Volts
Weight (kg)
0.2140
Length (mm)
75
Height (mm)
85
Width (mm)
35
Length Packaging (mm)
105
Height Packaging (mm)
40
Width Packaging (mm)
80
B

Attributes:

Brand: NHP
Part Number: DTRD1630A
Also Known As: RCCB Residual Circuit Breaker Residual Circuit Breakers GFCI GFI ALCI RCD Safety Switch Safety Switches Miniature Circuit Breaker Residual Current Device NHPDTRD1630A
Amperage Range: 16 Amps
Max Cable Size: 35mmSq
Number Of DIN Modules: 2 Module
Poles: 1 Pole + N
Sub Category: MCB/RCD RCBO Combos
Breaking Capacity: 10 kA
Trip Curve: C Curve
Type: Type A
Voltage: 240 Volts
Weight (kg): 0.2140
Length (mm): 75
Height (mm): 85
Width (mm): 35
Length Packaging (mm): 105
Height Packaging (mm): 40
Width Packaging (mm): 80
Barcode: 8012542683452

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
