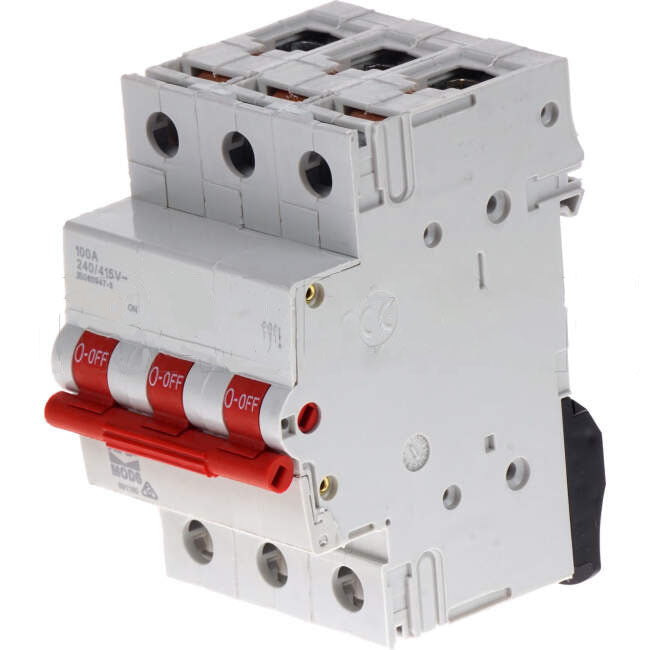

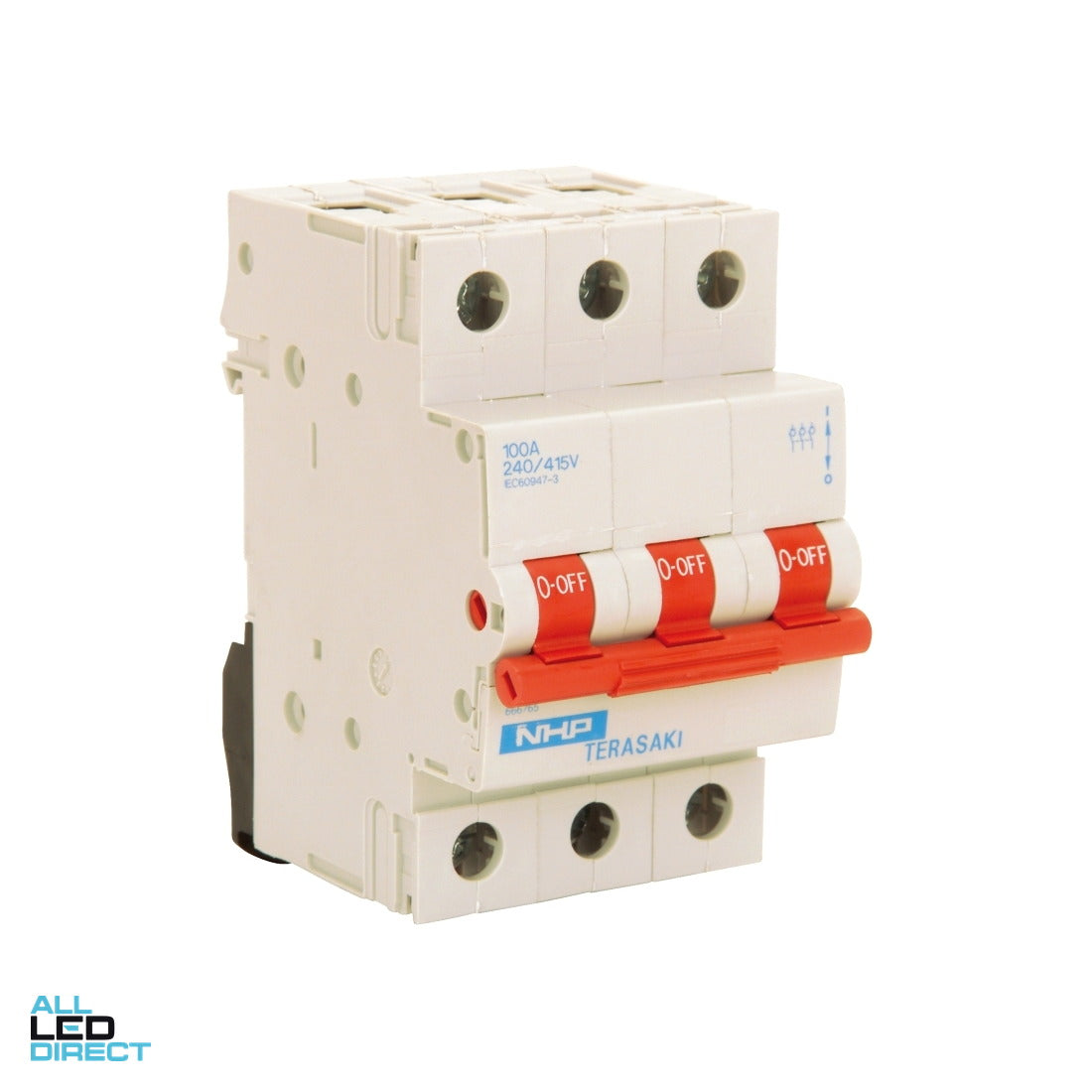

NHP 100 Amp 3 Pole Main Switch With Red Toggle

• Service Information: Product is not repairable
• Product Series: MOD6
• Component Type Power Distribution & Protection: Main Switch
• Ie, Rated Operational Current, nom: 100 A,nom
• In, Rated Current: 100 A
• Poles: 3P
• Operating Temperature, Max: 40 °C max
• Operating Temperature, Min: -5 °C min
• Storage Temperature, Max: 70 °C max
• Storage Temperature, Min: -25 °C min
• Width: 54 mm
• Wire/Conductor Size (Max): 50 mm²
• Wire/Conductor Size (Min): 6 mm² min
• Wire/Conductor Size, Rigid Cable, Bottom, Max: 50 mm² Bottom
• Wire/Conductor Size, Rigid Cable, In, Min: 6 mm² In
• Wire/Conductor Size, Rigid Cable, Out, Min: 6 mm² Out
• Wire/Conductor Size, Rigid Cable, Top, Max: 50 mm² Top
• Ie, Rated Operational Current, nom: 100 A,nom

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand NHP
• Part Number
• MOD6MS3100
• Also Known As mainsswitch mainswitch NHPMOD6MS3100
• Amperage Range 100 Amps
• Mounting Din Rail
• Poles 3 Pole

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.3000
• Length (mm) 90
• Height (mm) 75
• Width (mm) 54
• Length Packaging (mm) 90
• Height Packaging (mm) 54
• Width Packaging (mm) 75
• Barcode 2000100117750
• Barcode (Secondary) 5413656911609
