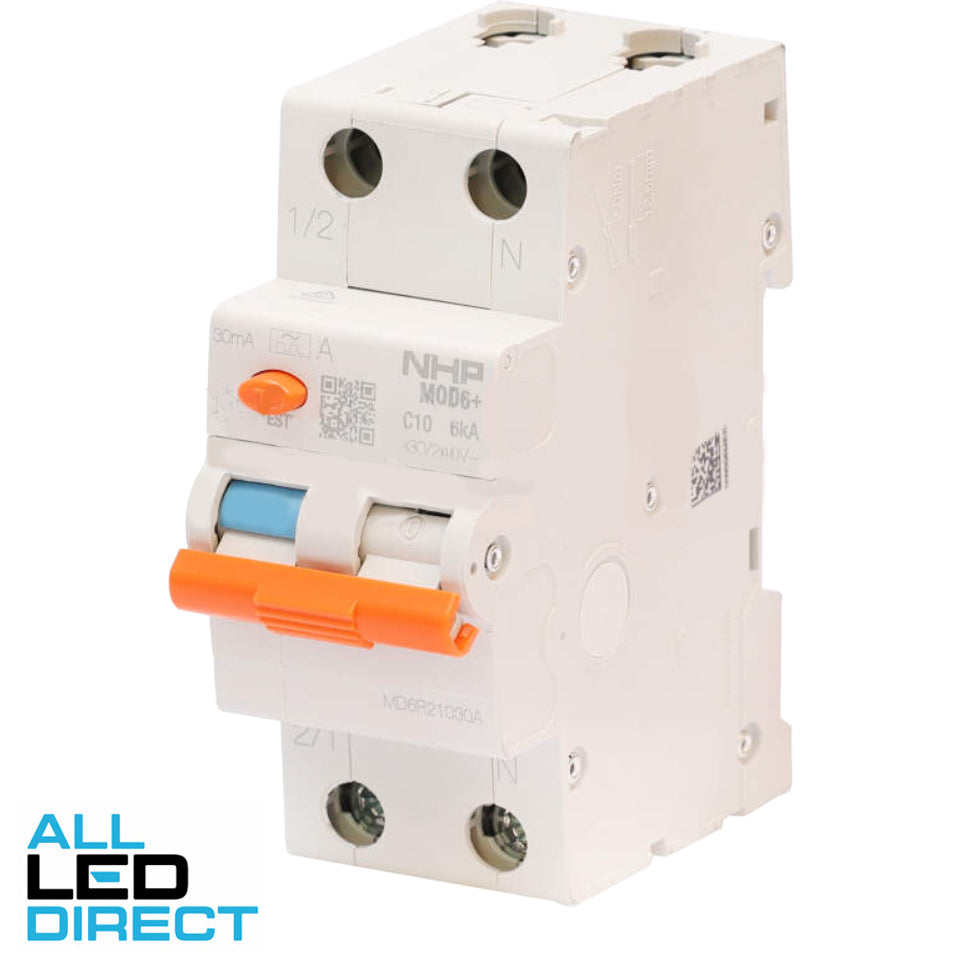

NHP 10 Amp MOD6+ MCB/RCD RCBO C Curve 1 Pole + Neutral 6kA 30mA Type A

The NHP 10 Amp MOD6+ MCB/RCD RCBO (Residual Current Breaker with Overcurrent Protection) is a reliable and efficient solution for protecting electrical circuits from both overcurrent and leakage faults. Designed with a 1 Pole + Neutral configuration, this RCBO features 30mA Type A sensitivity, providing effective protection against leakage currents. The C Curve trip characteristic ensures it is ideal for circuits with inductive loads, such as motors. With a 6kA short-circuit rating, this device ensures high-level protection for residential and commercial applications. The MOD6+ range is known for its cost-effective solutions, offering robust electrical protection that detects and trips on overloads and short circuits.
Key Features:
10 Amp current rating for reliable protection in low power circuits.
1 Pole + Neutral configuration for effective overcurrent and leakage fault protection.
30mA Type A sensitivity for reliable leakage detection.
C Curve trip characteristic, suitable for inductive loads.
6kA short-circuit rating for enhanced safety and reliability.
Easy installation and robust performance in residential and commercial systems.
Part of the NHP MOD6+ range, offering effective protection against overload and short circuits.
Cost-effective and dependable electrical protection solution.
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
NHP
Part Number
MD6R21030A
Amperage Range
10 Amps
Max Cable Size
Number Of DIN Modules
1 Module
Poles
1 Pole + N
Standard
Sub Category
MCB/RCD RCBO Combos
Breaking Capacity
6 kA
Trip Curve |

Attributes:

Brand: NHP
Part Number: MD6R21030A
Amperage Range: 10 Amps
Number Of DIN Modules: 1 Module
Poles: 1 Pole + N
Sub Category: MCB/RCD RCBO Combos
Breaking Capacity: 6 kA
Trip Curve: C Curve
Type: Type A
Voltage: 240 Volts
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 0.2000
Length (mm): 75
Height (mm): 85
Width (mm): 35
Length Packaging (mm): 75
Height Packaging (mm): 85
Width Packaging (mm): 35
Barcode: 8012542682257
Barcode (Secondary): 2000101031864
