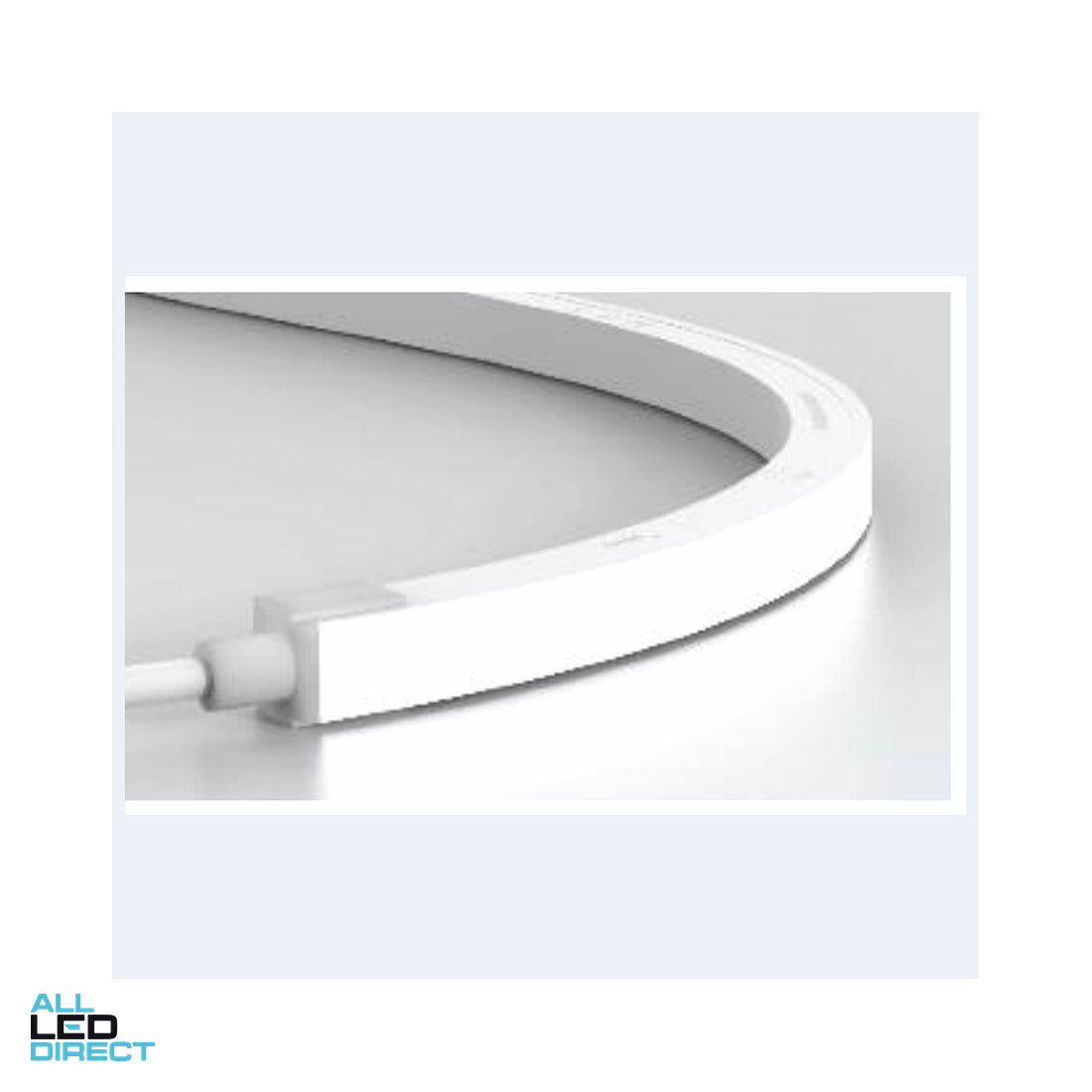

16.5mm neon flex IP67

Neon flex 16.5 mm 24 V DC LED. IP67. IK08. ELV neon flex 24 V DC.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Neon-16.5-24VDC Rev A.

Electrical
Rated voltage
24 V DC
System power
10 W/m
Ambient ta
−20 to +45 °C
Switch type
Inline or smart

Optical
System lumens
563 lm
Efficacy
56.3 lm/W
CCT
2200–6500 K
CRI
>80
Beam
110°
LED package
SMD
Options
WW / CW / RGB / RGBW / RGBWW

Mechanical
Body
Silicone
Diffuser
Opal
Finishes
White, opal
Installation
Surface or recessed
IP rating
IP67
IK rating
IK08
Section
16.5 × 16.5 mm

Driver
Driver included
Yes, remote
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS 60598.2.20, AS/NZS 60598.2.21, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Neon-16.5-24VDC
Wattage
10 Watt/m

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
