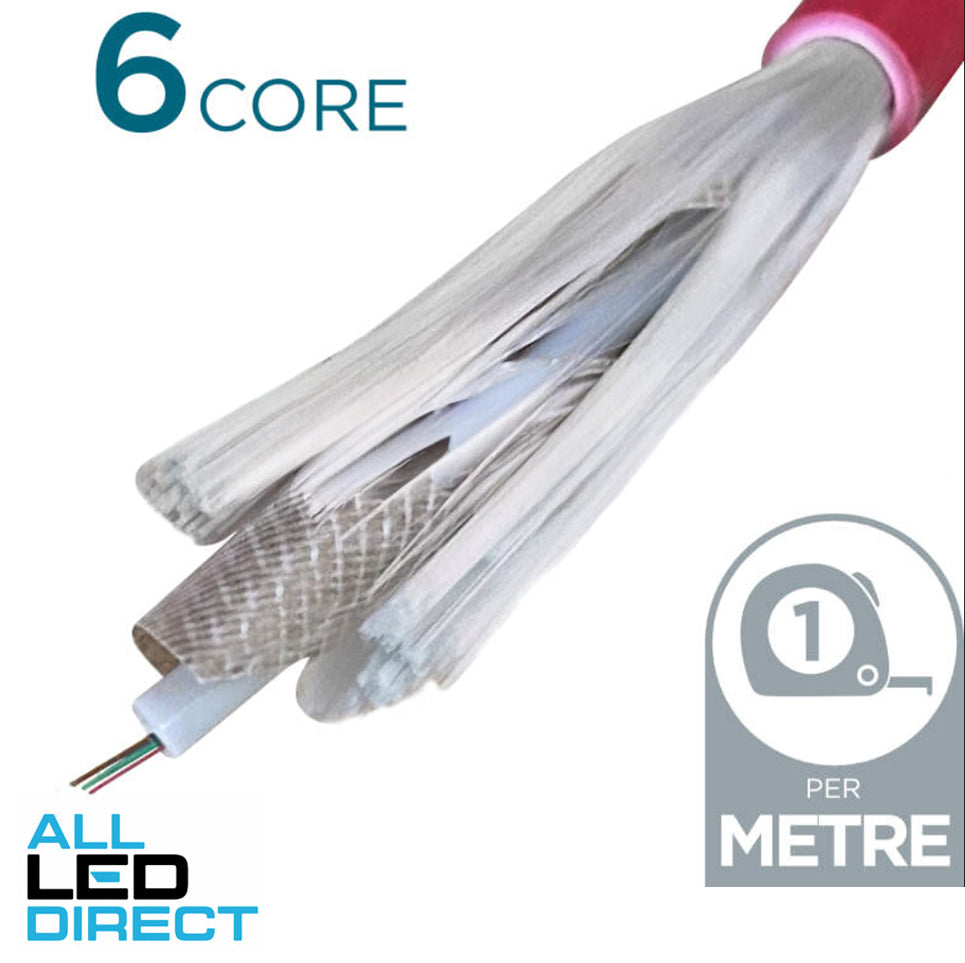

MSS 6 Core Singlemode Fibre Fire Rated Mono Tube Cable Red Per Metre

MSS 6 Core Singlemode Fibre Fire Rated Mono Tube Cable Red Per Metre by MSS Data is a critical application cable designed for reliable performance in fire-prone environments. The MSS Data CAB-MT-06-SMFR features an innovative jelly-filled mono tube construction and heat-resistant mica tape, ensuring exceptional protection against extreme temperatures. This cable maintains performance for up to 120 minutes at 750°C, as per IEC 60331-25 standards, and has a red LSZH jacket that provides a visually identifiable option and enhances safety by minimizing smoke emissions during a fire.
Key Features
Fire Resistance: Compliant with IEC 60331-25 for up to 120 minutes at 750°C
Construction: Jelly-filled mono tube design for superior performance
Insulation Material: Heat-resistant mica tape for enhanced durability
Jacket Material: Red LSZH (Low Smoke Zero Halogen) for minimal smoke emissions
UV Resistance: Jacket is UV resistant for outdoor applications
Protection: Aramid glass yarns provide strength and protection
Core Count: 6 cores for versatile connectivity
Armoured: Yes, for additional durability and protection
Main Benefits
Enhanced Safety: Minimizes smoke emissions during a fire, making it ideal for use in fire alarm systems and other essential infrastructure
Reliable Performance: Maintains performance for up to 120 minutes at 750°C, ensuring critical applications remain operational
Durability: Features a jelly-filled mono tube construction and heat-resistant mica tape for superior protection against extreme temperatures
Versatility: 6 cores provide versatile connectivity options
Compliance: Compliant with IEC 60331-25 standards for fire resistance

Attributes:

Brand: MSS Data
Part Number: CAB-MT-06-SMFR
Also Known As: Fire rated fibre
Cable Conductor Material: Annealed Copper
Cable Core Colours: Numbered
Cable Drum Length: Per Metre
Cable Insulation & Sheath Material: PVC
Cable Sheath Colour: Red
Cable Size mm: 1mm
Cable Voltage: 250 Volts Light Duty
Number of Cores: 6
Optical Mode: Single-Mode
Sub Category: Fire Rated Cable
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 0.0300
Length Packaging (mm): 450
Height Packaging (mm): 7
Width Packaging (mm): 450
Barcode: 2000100929971
