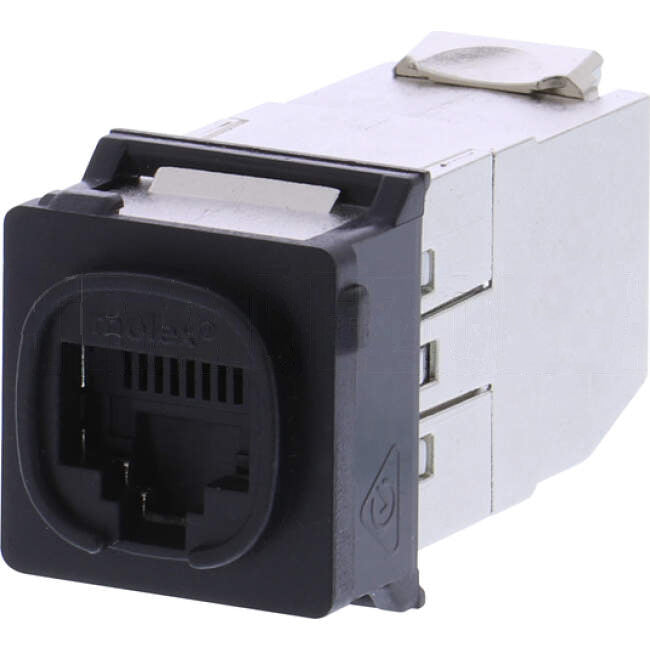

Molex POWERCAT 6A ModClip Shielded Jack Black

The PowerCat 6A MOD-Clip DataGate Shielded jack is a key component of the PowerCat 6A shielded end-to-end solution.

The PowerCat 6A DataGate jack offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die cast zinc alloy connector body housing. This shielded connector also features a unique spring loaded shutter that not only protects it from dust and contaminates, but the ingenious spring loaded design also ejects improperly seated patch cords. The shielded connector is dual color coded for either 568A or 568B wiring schedules.

The PowerCat 6A DataGate Shielded Jack was specifically designed for high-speed data transmission and is also backwards compatible with shielded C6 and C5e systems.

Molex recommends the full range of PowerCat 6A Shielded products be used in a system to maximize cabling performance. This system is compliant with latest ISO/IEC 11801 A1.1 active and ratified TIA/EIA 568-B.2-10 for the support of 10G BASE-T.

• Robust die cast zinc alloy housing
• Dual color coding allows 568A/B wiring
• Patented IDC V-Shaped contacts that flex not fatigue when terminated
• Spring-Loaded Shutter
• Accepts color coded port identification labels
• C6A Channel performance when installed as a complete PowerCat 6A Shielded System
• RoHS Compliant

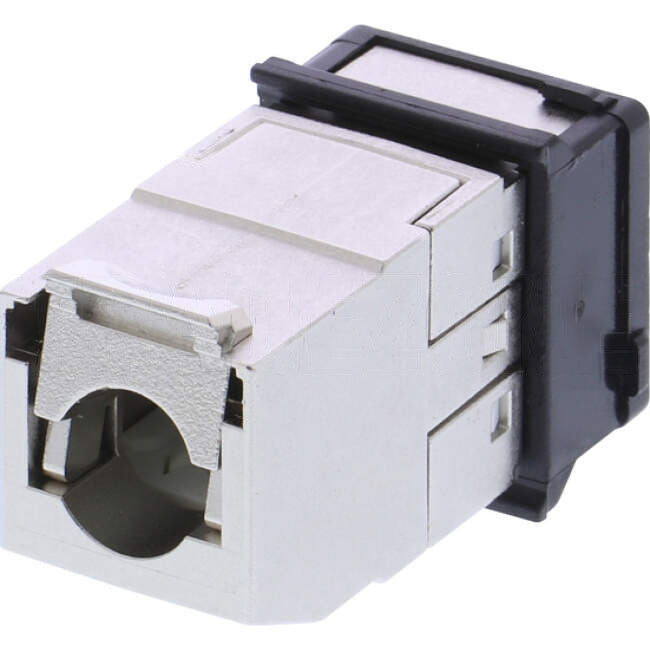

• Spring loaded cable/drain wire clamp
• Compatible with Clipsal wallplates
