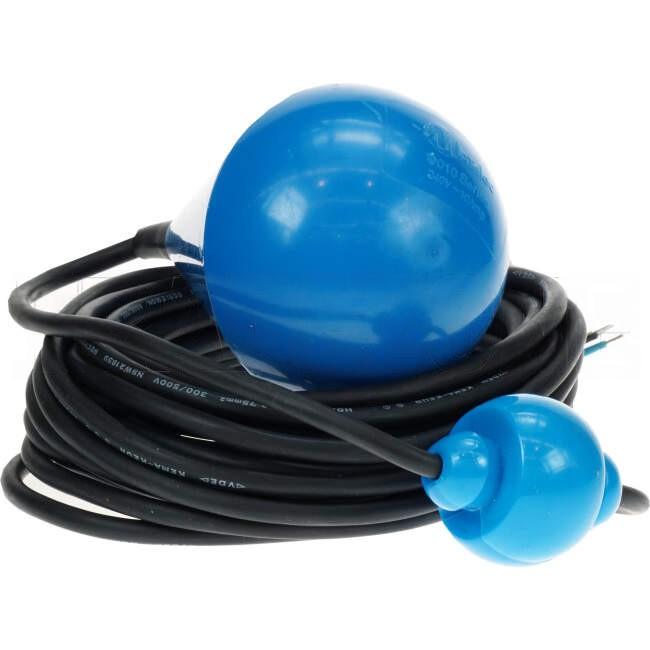

Matelec Float Switch 9010 NRB With 10 Metre Cable

9010 FSW Range

• Smooth, robust ABS switch housing reduces adhesion of foreign materials
• Sliding detent action obviates wave induced oscillation, maintaining consistency in switching level accuracy

Specifications

• Liquid Temperature:
• Min 5C (41F)
• Max 60C (140F)
• Liquid Density:
• Min .65g/cm
• Max 1.5g/cm
• Protection: IP68 @ 20m (65ft)
• Working Pressure: .35MPa
• Switching Speed: 600/min
• Contact Life: 10,000 switches
• Contact Type: Microswitch with NO and NC contacts
• Switching Angle: 20(from horizontal)
• Max Voltage: 240Vac
• Max Current: 6AMPS (COS 0)
• Cable Material: Neoprene Rubber
• Cable Size: 7mm / 3 x .75mm
• Housing Material: ABS - Acrylonine Butadiene Styrene
• Chemical Resistance:
• Acid - Good
• Alkaline - Good
• Petro - Good

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led direct
• Warranty Period 1 Year

Attributes

• Brand Matelec
• Part Number
• FSW-12517

Shipping Information

• Weight (kg) 1.4000
• Height (mm)
• Width (mm)
• Length Packaging (mm) 100
• Height Packaging (mm) 155
• Width Packaging (mm) 245
• Barcode 9338999001892
