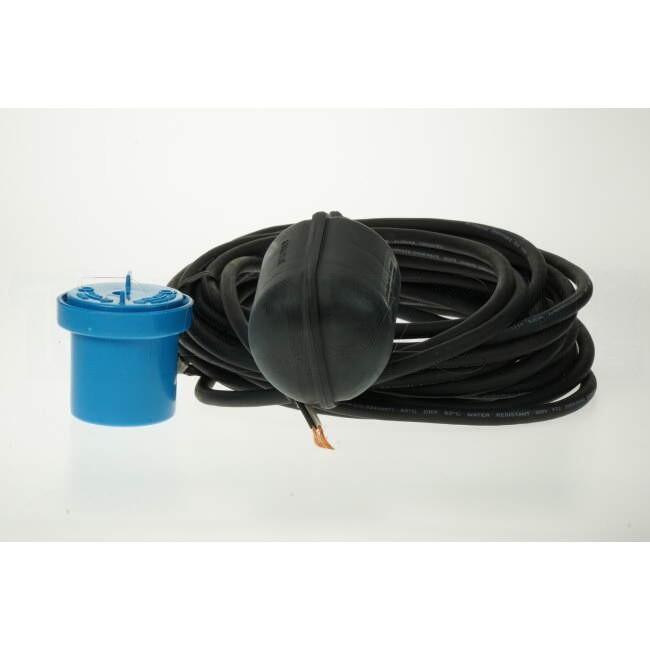

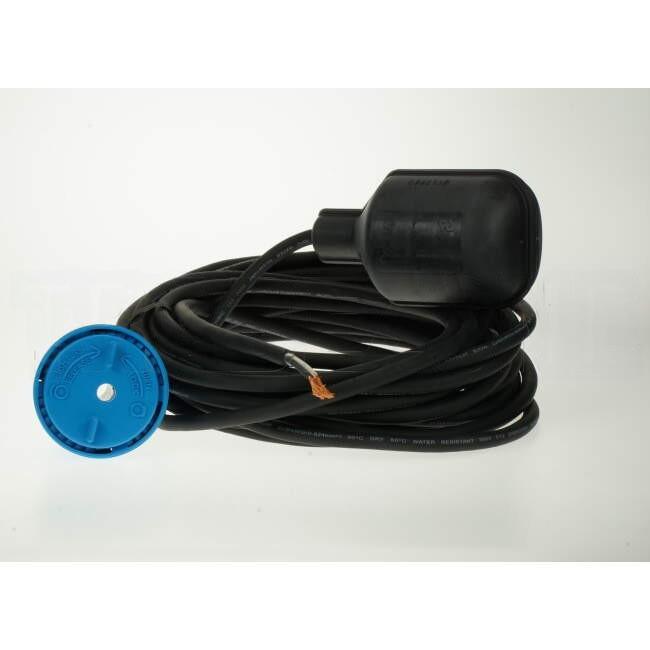

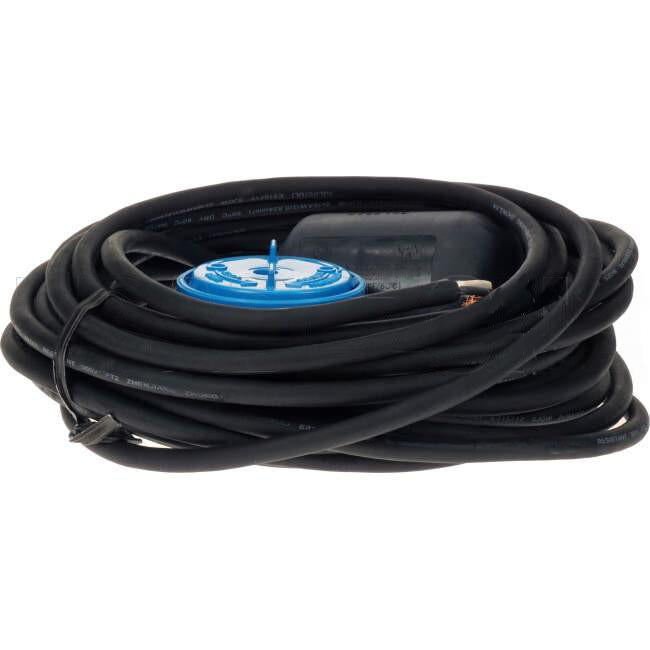

Matelec Float Switch 9004 NRB With 10 Metre Cable

9004 FSW Range

• Smooth, robust polypropylene switch housing reduces adhesion of foreign materials
• Sliding detent action obviates wave induced oscillation, maintaining consistency in switching level accuracy
• Higher current rating of up to 10 Amps is ideal for heavier duty applications

Specifications

• Liquid Temperature:
• Min 5C (41F)
• Max 60C (140F)
• Protection - IP68 @ 9m (30ft) corrosion resistant
• Contact Type - Mechanically Activated, snap action N/O contacts
• Pumping Range - 20-90 cm (8-36 inches)
• Max Voltage - 240Vac 50/60Hz
• Max Run Current - 10Amp (COS 0)
• Cable Material - Neoprene Rubber
• Cable Size - 8mm / 2 x .75mm2
• Housing Material - Polypropylene
• Warranty Information (From Install)
• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Matelec
• Part Number
• FSW-12410

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 1.4000
• Length (mm) 10000
• Height (mm) 0.75
• Width (mm) 8
• Length Packaging (mm) 55
• Height Packaging (mm) 200
• Width Packaging (mm) 210
• Barcode 9338999001823
• Barcode (Secondary) 9338999002035
