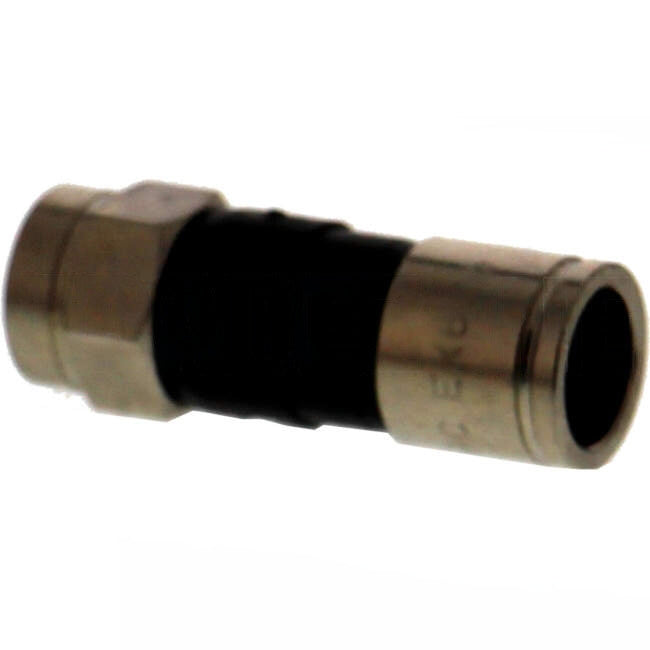

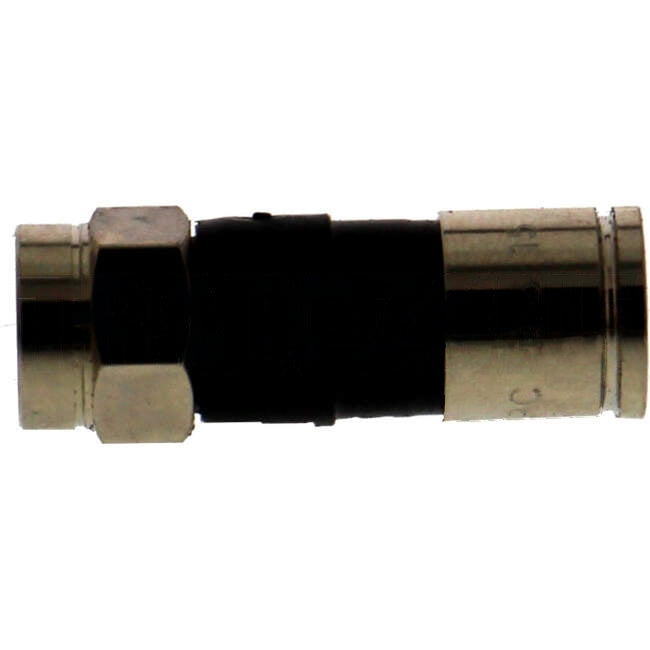

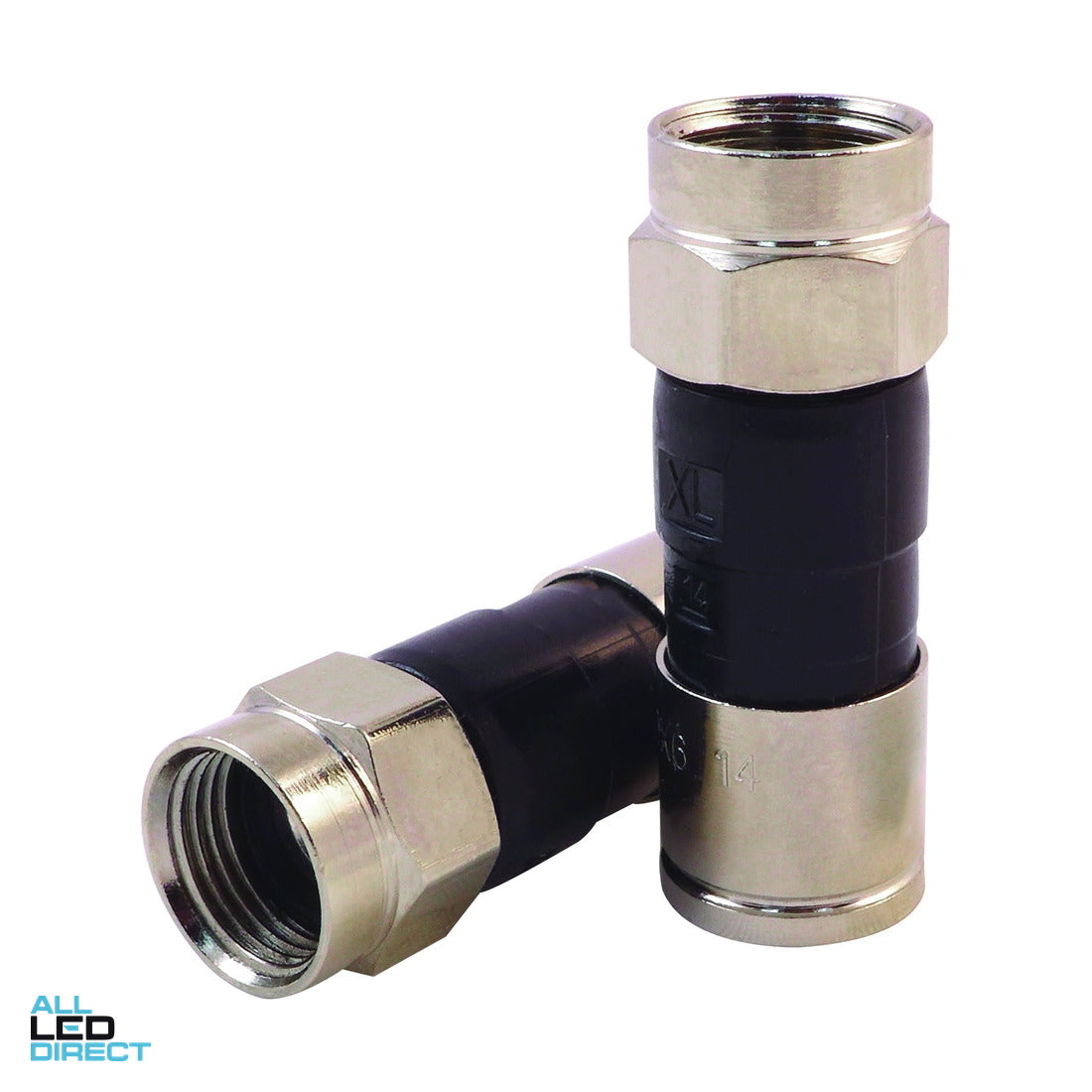

Matchmaster F Type RG6 Connector Compression Join EACH

The 08MM-EX6XLG is a professional grade PPC Broadband extended body ‘F’ type compression connector. The EX6XLG is suited for use with RG6 dual, tri and quadshield cables. Perfect for use in both CATV and satellite networks with an operating frequency range of 0-3000MHz. The EX6XLG features integrated gaskets and O-rings in its design to create that perfect seal to your cable to eliminate the chance of any unwanted ingress.

FEATURES AND BENEFITS
PPC Broadband RG6 ‘F’ type compression connector for use in CATV and satellite installations
Used with Matchmaster compression tools (08MM-CT07 & 08MM-CT01S)
High-quality nickel-plated finish for long-life corrosion resistance
Suitable for use to 3000MHz
Telstra approved
Cable Retention 45 lbs (20.41 kg) minimum

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Matchmaster
• Part Number - 08MM-EX6XLG
• Also Known As MAT08MM-EX6XLG MMR08MM-EX6XLG

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0050
• Height (mm) 11
• Width (mm) 11
• Length Packaging (mm) 11
• Height Packaging (mm) 32
• Width Packaging (mm) 11
• Barcode 2000100245088
• Barcode (Secondary) 2000200245087
