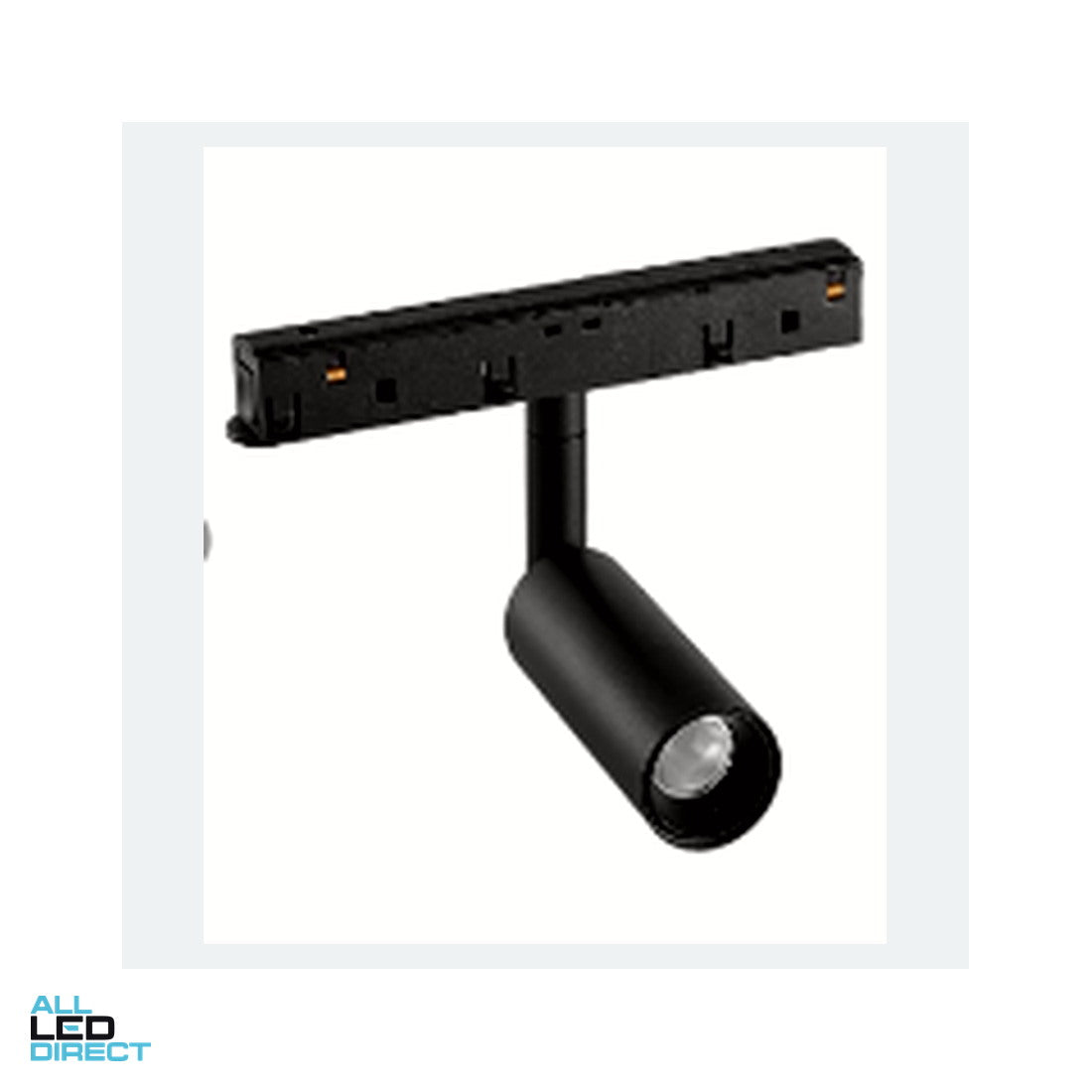

10W magnetic track spotlight

Magnetic track 10 W LED. IP20. Track magnetic indoor.

Quote via info@alledirect.com. Australia.

Datasheet ALD-MagTrack-10W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
10 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1250 lm
Efficacy
125 lm/W
CCT
3000 / 6000 K
CRI
>80
Beam
15 / 24 / 36 / 45 / 60°
LED package
SMD
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium
Diffuser
Polycarbonate
Finishes
Black, white, clear, opal
Installation
Surface mount
Adjustability
Yes
IP rating
IP20

Driver
Driver included
No
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-MagTrack-10W
Wattage
10 Watt
