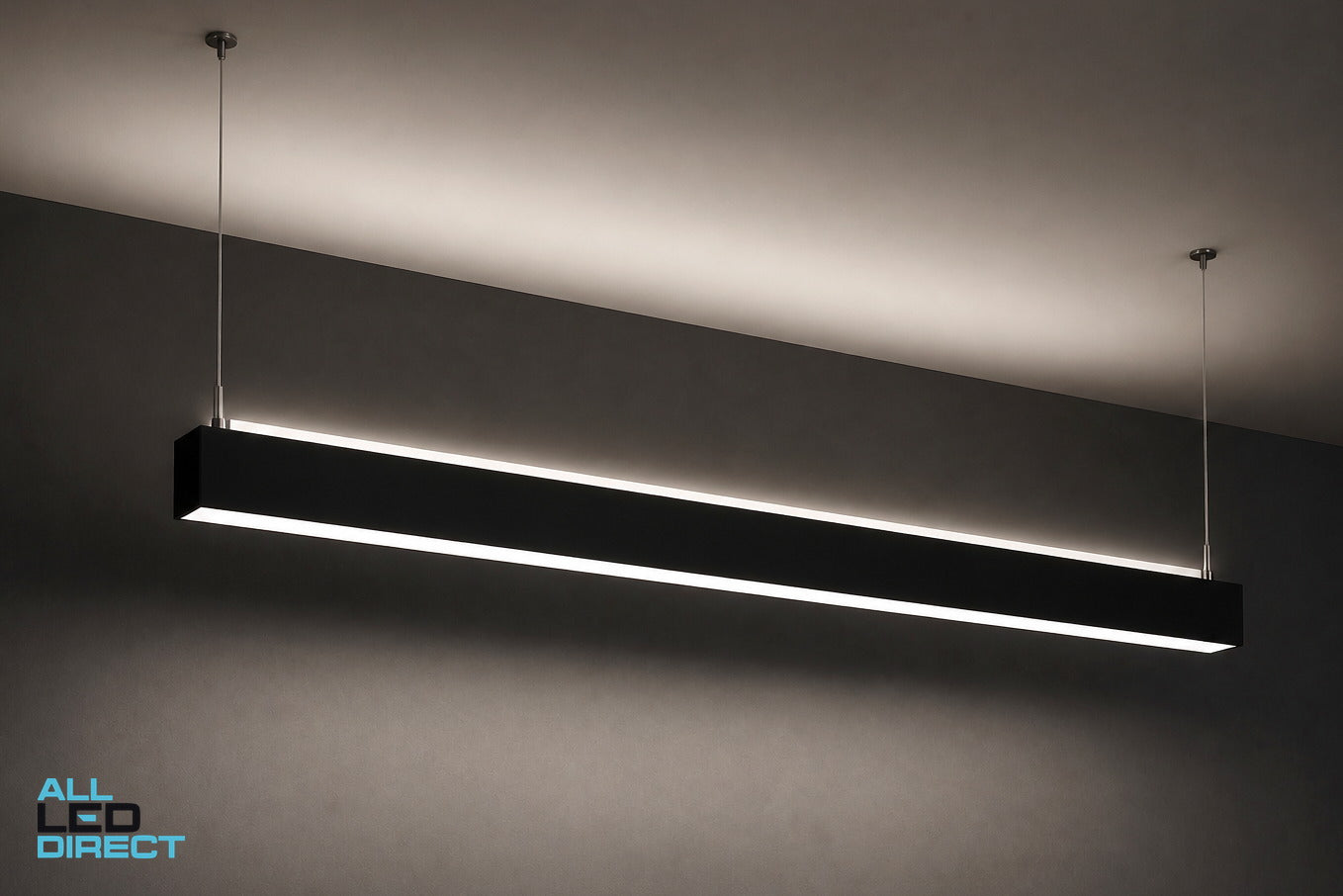

35W/m linear up/down

Suspended linear up/down 35 W/m LED. IP20. LINEAR SUSPENDED up/down.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Linear-UpDown-35Wm Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
35 W/m
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
3500 lm
Efficacy
100 lm/W
CCT
3000 / 6000 K
CRI
>80
Beam
120°
LED package
SMD
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium
Diffuser
Polycarbonate
Finishes
Black, white, clear, opal
Installation
Suspended
Adjustability
Yes
IP rating
IP20
Section
35 × 70 mm

Driver
Driver included
No

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Linear-UpDown-35Wm
Wattage
35 Watt/m
