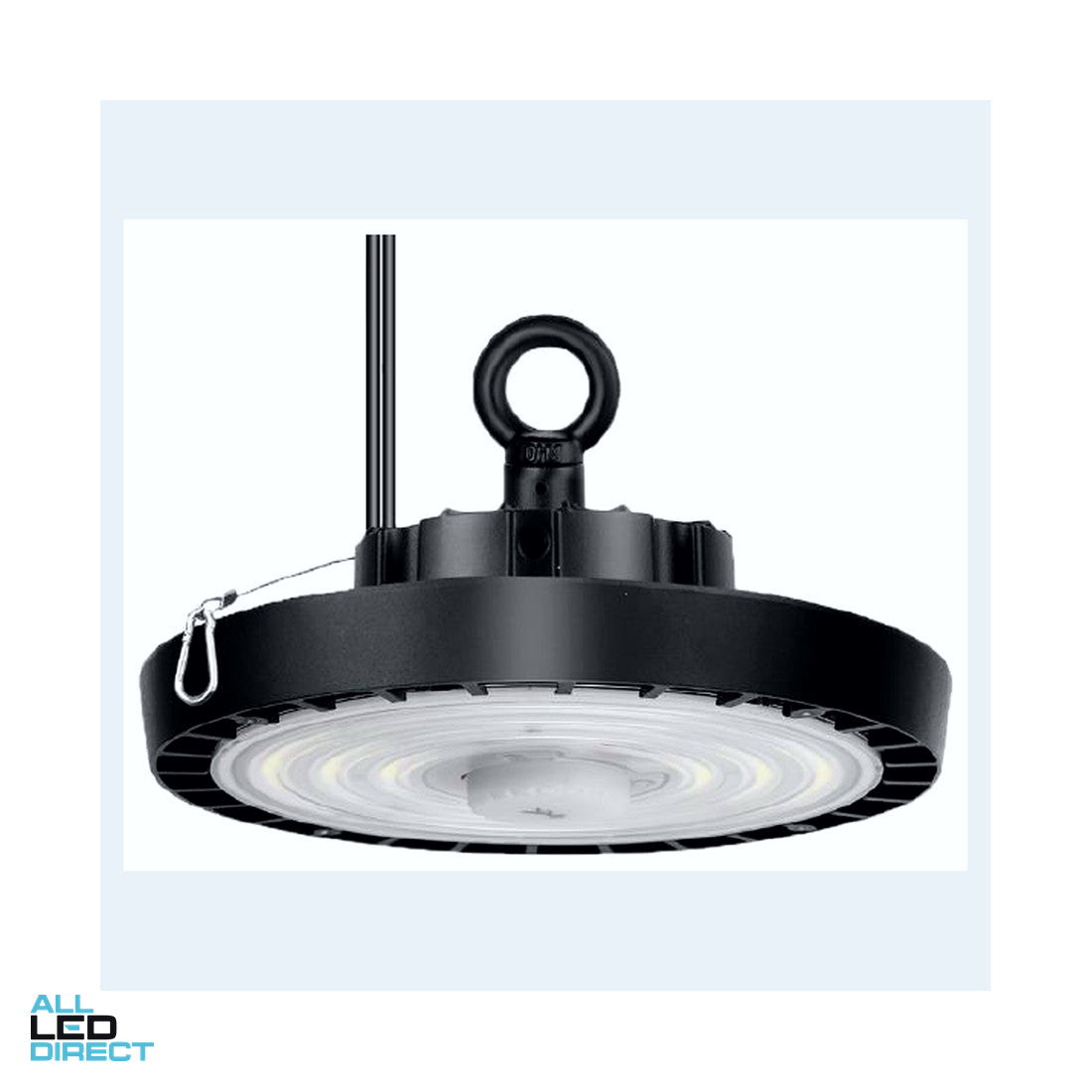

50W LED high bay IP65

Highbay 50 W 120° LED. IP65. Industrial suspended indoor / covered.

Quote via info@alledirect.com. Australia.

Datasheet ALD-HighBay-50W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 / 60 Hz
Australian supply range
216–253 V ac
System power
50 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
CCT
5000 / 6000 K
CRI
>80
Beam
120°
LED package
SMD

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, custom
Installation
Suspended
Adjustability
Fixed
IP rating
IP65

Driver
Type
Phase-cut dimmable, constant current
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDLHB506k
Wattage
50 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
