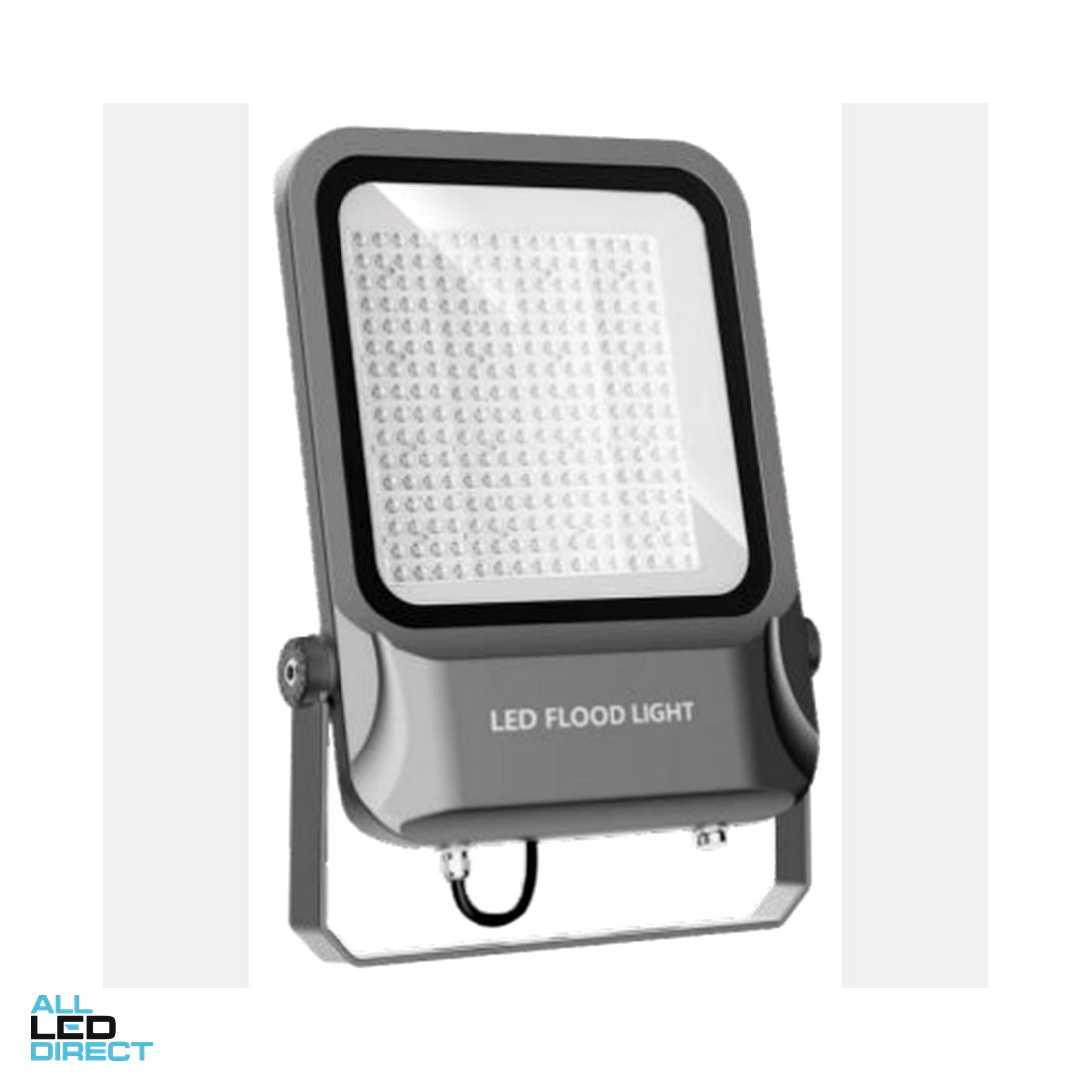

100W LED flood light IP65

Flood light 100 W LED. IP65. Outdoor flood bracket.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Flood-100W Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
100 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
14500 lm
Efficacy
145 lm/W
CCT
4000 / 6000 K
CRI
>80
Beam
120°
LED package
COB

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Surface / bracket (photo: U-bracket)
IP rating
IP65
Overall size
250 × 450 mm
Dimmable (table)
No

Driver
Type
See dimming contradiction §
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)
Driver type (table)
Dimmable (Phase cut)
Driver mode
Constant current

Standards
AS/NZS 60598.1, AS/NZS 60598.2.5, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Flood-100W
Wattage
100 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
