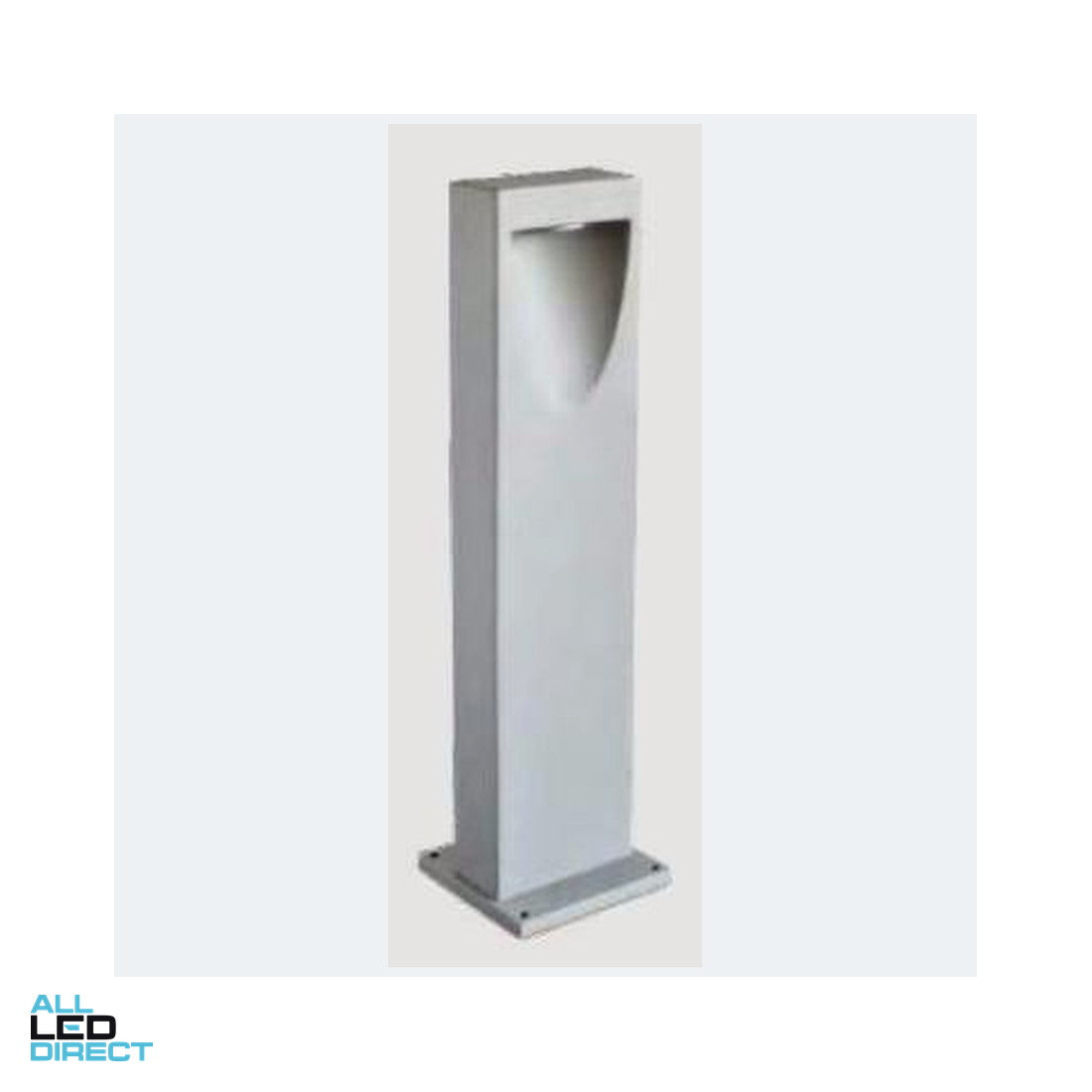

15W LED bollard IP66

Bollard 15 W LED. IP66. Outdoor bollard path.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Bollard-15W-R9121 Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
15 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1500 lm
Efficacy
100 lm/W
CCT
3000 K
Beam
Path
LED package
LED (generic)

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Pad mount
Adjustability
Fixed
IP rating
IP66
Diameter × height
Ø 110 × 1000 mm

Driver
Type
Dimmable (Phase cut)
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
R9121
Wattage
15 Watt
