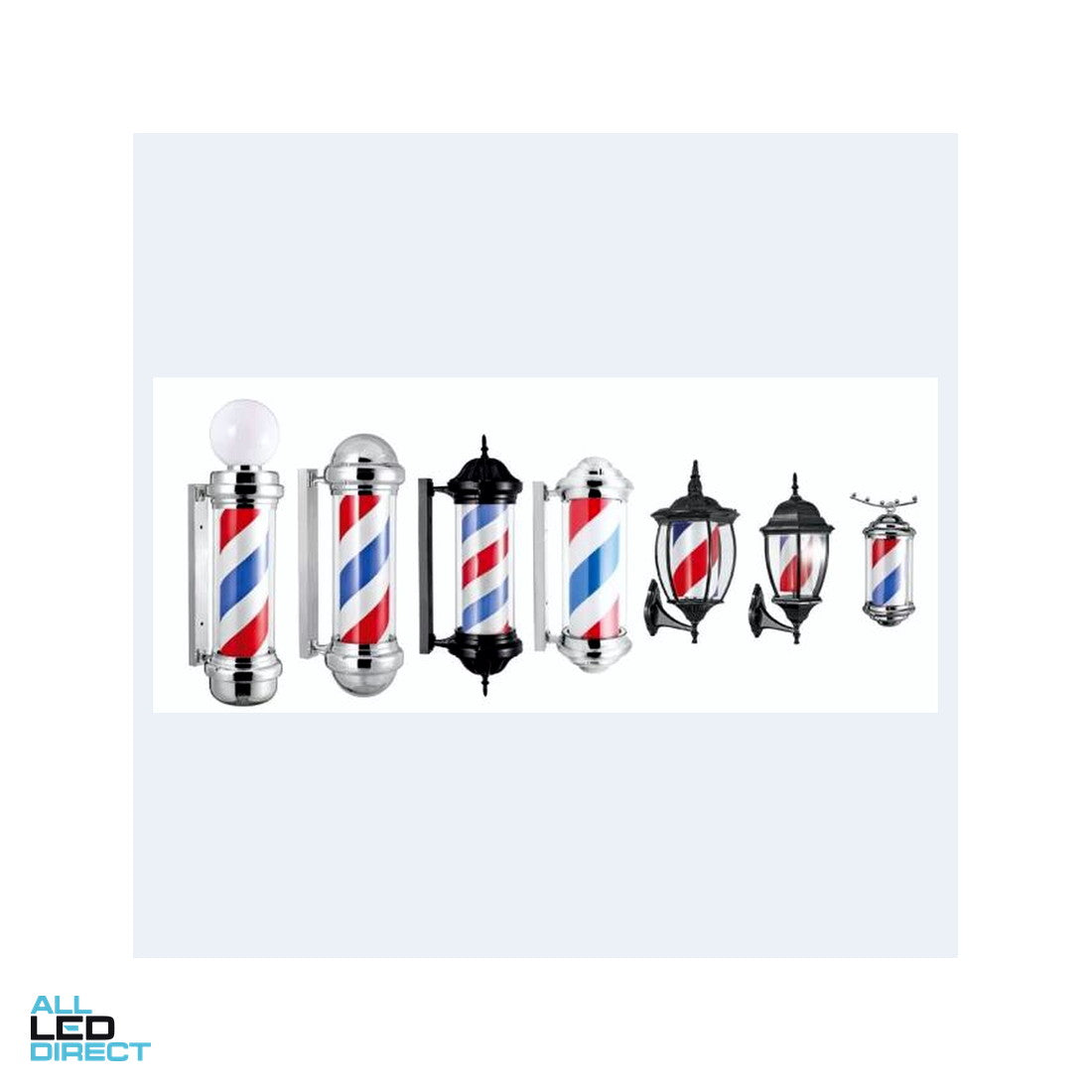

12W LED barber pole light

Barber pole light 12 W LED. IP20. Retail sign rotating.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Barber-Pole-12W Rev A.

Electrical
Rated voltage
240 V ac
Frequency
50 / 60 Hz
Australian supply range
216–253 V ac
System power
12 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
100 /m
CCT
3000 / 4000 K
CRI
>80
Beam
180°
LED package
COB (spinning internal strip)
Colour name
Warm white / Cool white

Mechanical
Body
Steel
Diffuser
Plastic
Finishes
Clear, chrome, clear, black
Installation
Surface mount (wall)
Adjustability
Fixed
IP rating
IP20
Diameter × height
Ø 380 × 960 mm
Motion
Spinning internal strip (as printed)

Driver
Dimmable
No
Driver included
Yes, integrated
Wiring
Rewireable
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
3 years return-to-base
Domestic Use
3 years return-to-base
Warranty Method
Return-to-base
Warranty Period
3 years

Attributes
Brights
Part Number
ALD-Barber-Pole-12W
Wattage
12 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
