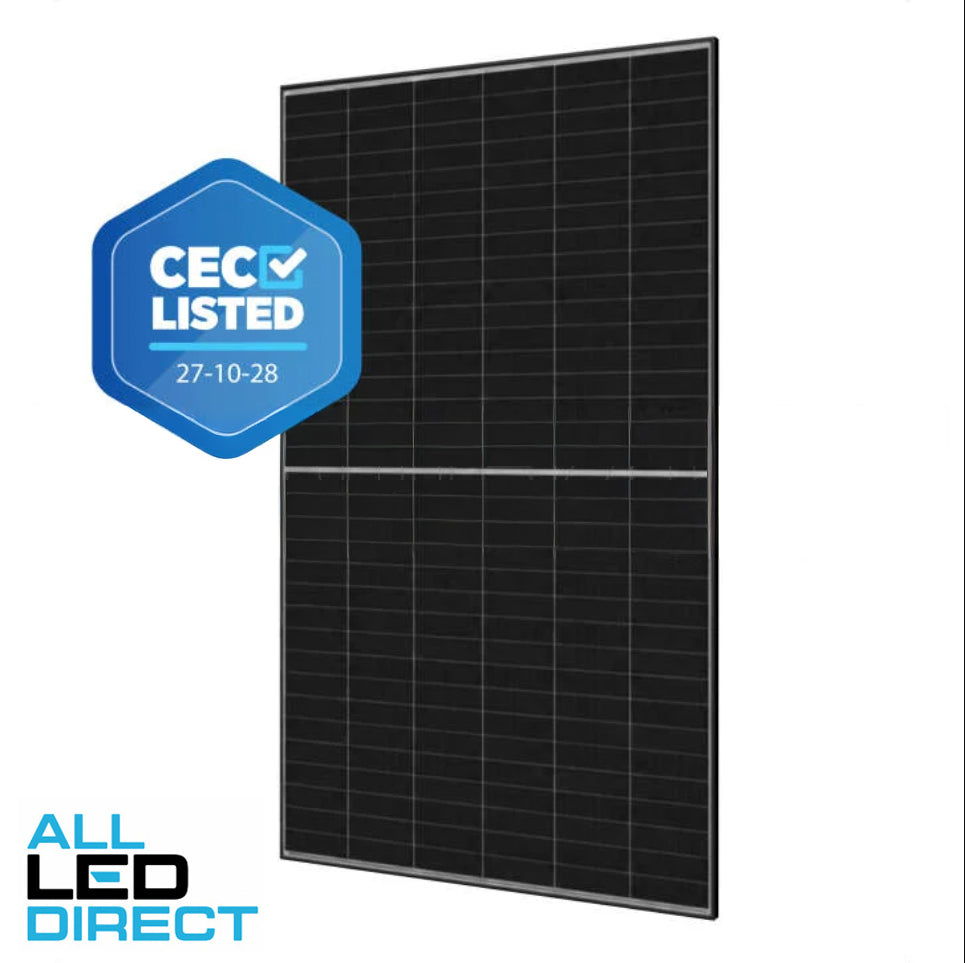

Jinko 510 Watt 204 Cell TIGER NEO III Mono-Facial Dual Glass 30mm Black Frame Solar Panel

Higher Power on Front Side
Leading power class based on the enhanced N-type TOPCon platform, achieved through cutting-edge technology and an optimized layout that captures more sunlight
Optimized Heat resistance
Optimized temperature coeffcient achieved via advanced graphical patterning, busbar and multi-cell technology
Proven Low Light Performance
Enhanced cell structure ensures superior module performance under low-light conditions.
Industry Leading Warranty
Advanced metallization and iterated module encapsulation deliver superior resistance to PID, LID / LeTID, and UV degradation.
Mechanical Load Enhanced
Certified to withstand: 5400 Pa front side max static test load, 2400 Pa rear side max static test load
Warranty Information
Warranty Method
Contact Manufacturer
Commercial Use
25 Years
Domestic Use
25 Years
Warranty Period
25 Years
Attributes
Brand
Jinko
Part Number
JKM510-51QL6-DV-F2-OC
Backing Sheet Colour
White
Cell Count
204 Cell
Frame Colour
Black
Frame Thickness
30mm
Series
JINKO TIGER NEO
Sub Category
Solar Panels
Wattage Range
510 Watt
Weight (kg)
23.0000
Length (mm)
1134
Height (mm)
1906
Width (mm)
30
Length Packaging (mm)
1134
Height Packaging (mm)
1906
Width Packaging (mm) |

Attributes:

Brand: Jinko
Part Number: JKM510-51QL6-DV-F2-OC
Backing Sheet Colour: White
Cell Count: 204 Cell
Frame Colour: Black
Frame Thickness: 30mm
Series: JINKO TIGER NEO
Sub Category: Solar Panels
Wattage Range: 510 Watt
Freight Levy: Freight Applies To All Postcodes
Weight (kg): 23.0000
Length (mm): 1134
Height (mm): 1906
Width (mm): 30
Length Packaging (mm): 1134
Height Packaging (mm): 1906
Width Packaging (mm): 30
Barcode: 2000101104582

Warranty Information:

Warranty Method
Contact Manufacturer
Commercial Use
25 Years
Domestic Use
25 Years
Warranty Period
25 Years

Shipping Information:

Freight Levy: Freight Applies To All Postcodes
