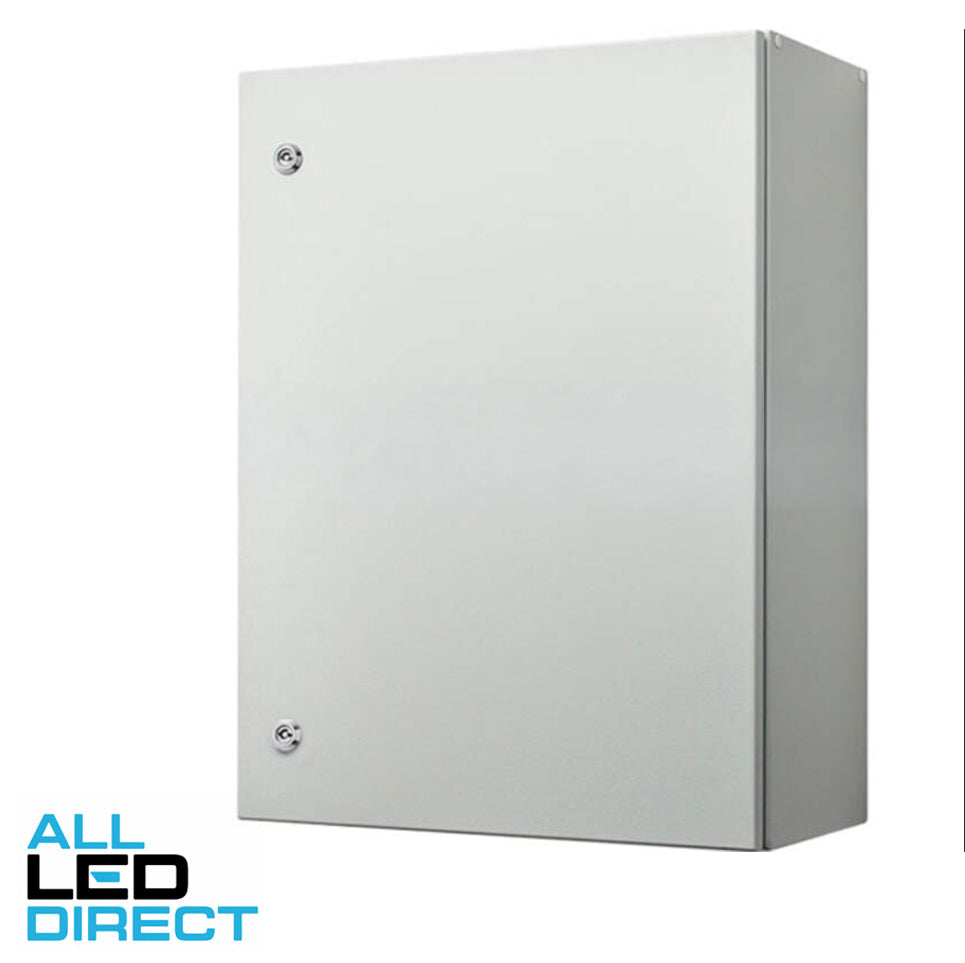

IP Enclosures 800mm W x 1200mm H x 400mm D Galvanised Steel IP66 Enclosure Grey

The IP Enclosures 800mm W x 1200mm H x 400mm D Galvanised Steel IP66 Enclosure Grey by IP Enclosures is a robust electrical enclosure suitable for general industrial applications. IP Enclosures IP-1208040 complies with IP66 IK10, NEMA 4, and is manufactured according to IEC/EN/AS62208, IEC/EN/AS60529 standards. The enclosure is made from 1.2-1.5mm galvanised steel sheet, with a door fabricated from 1.5mm galvanised steel sheet, and a device mounting plate also made from 1.5mm galvanised steel sheet. The seal is made of polyurethane, providing excellent sealing over a long life.
Key Features
Material: Made from 1.2-1.5mm galvanised steel sheet
Protection: Complies with IP66 IK10, NEMA 4
Standard: Manufactured according to IEC/EN/AS62208, IEC/EN/AS60529 standards
Seal: High quality machine-applied full perimeter Polyurethane seal
Door: Robust surface mounted door with concealed removable hinges and integral cable management rail studs
Device Mounting Plate: Fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength
Lock: Steel 3mm double bit insert quarter turn lock & key
Main Benefits
Reliable Protection: IP Enclosures IP-1208040 provides excellent protection against environmental factors, with a rating of IP66 IK10, NEMA 4
Durable Construction: Made from high-quality galvanised steel sheet, ensuring a long lifespan
Easy Installation: The enclosure is designed for easy installation, with pre-fitted blind nutserts and integral device plate mounts
Compliance: Manufactured according to IEC/EN/AS62208, IEC/EN/AS60529 standards, ensuring compliance with industry regulations

Attributes:

Brand: IP Enclosures
Part Number: IP-1208040
Enclosure Depth: 400mm
Enclosure Height: 1200mm
Enclosure Width: 800mm
IP Rating: IP66
Material: Powdercoated Galvanised Steel
Sub Category: Metal Enclosures
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 55.0000
Length (mm): 800
Height (mm): 1200
Width (mm): 400
Length Packaging (mm): 1230
Height Packaging (mm): 420
Width Packaging (mm): 830
Barcode: 2000100351918

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
