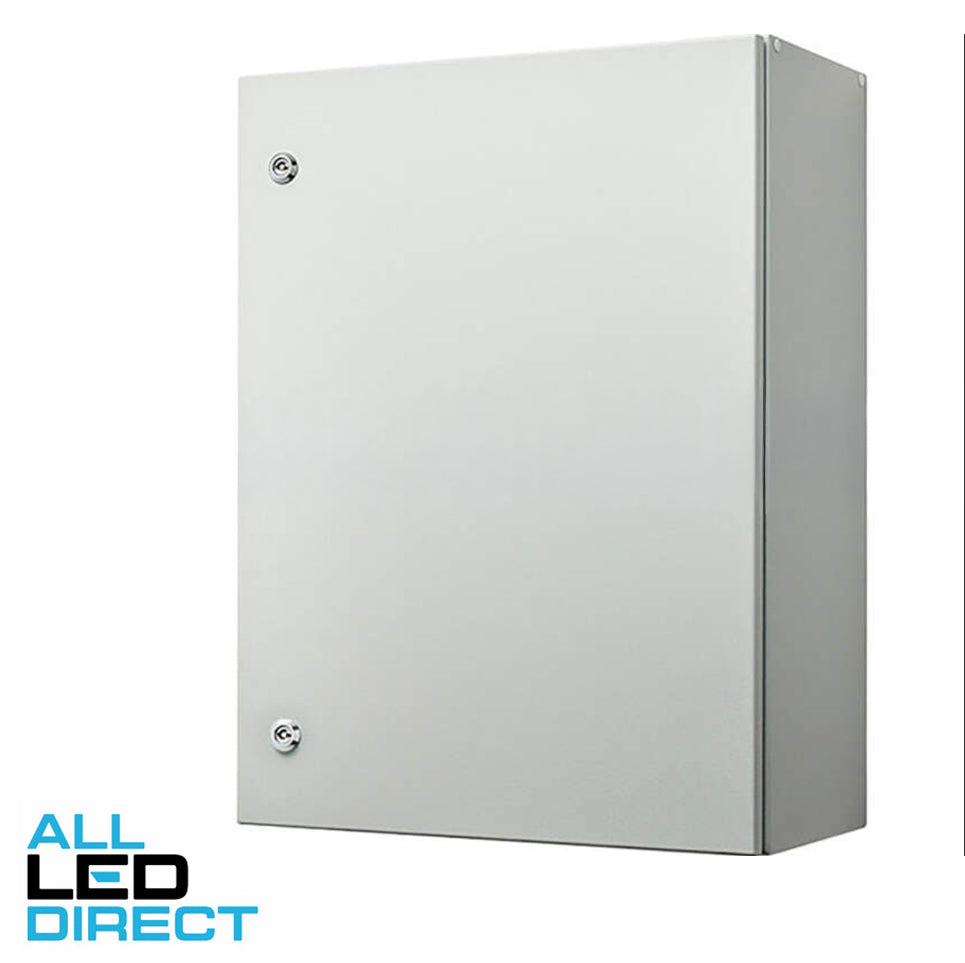

IP Enclosures 800mm W x 1000mm H x 400mm D Galvanised Steel IP66 Enclosure Grey

The IP Enclosures 800mm W x 1000mm H x 400mm D Galvanised Steel IP66 Enclosure Grey by IP Enclosures is a robust electrical enclosure suitable for general industrial applications. IP Enclosures IP-1008040 complies with IP66 IK10, NEMA 4, and meets standards IEC/EN/AS62208, IEC/EN/AS60529. The enclosure is made from 1.2-1.5mm galvanised steel sheet, with a door fabricated from 1.5mm galvanised steel sheet, and features a high-quality machine-applied full perimeter Polyurethane seal. The device mounting plate is fabricated using 1.5mm galvanised steel sheet and is pressed to provide additional strength. The surface treatment is UL approved epoxy polyester powder-coated with a textured finish, with an average thickness of 80-120 microns, and a colour of RAL7035.
Key Features
Body Material: 1.2-1.5mm galvanised steel sheet
Door Material: 1.5mm galvanised steel sheet
Seal Type: High-quality machine-applied full perimeter Polyurethane seal
Compliance Standards: IEC/EN/AS62208, IEC/EN/AS60529, IP66 IK10, NEMA 4
Surface Treatment: UL approved epoxy polyester powder-coated with a textured finish
Device Mounting Plate: Fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength
Main Benefits
Robust Protection: Provides excellent protection against environmental factors, with a high-quality seal and robust body and door materials
Easy Installation: Features pre-fitted blind nutserts to accommodate mounts and accessory fasteners, eliminating the need for drilling and retaining IP rating
Convenient Maintenance: The single door is designed for a 110° opening, allowing for easy access and maintenance
Reliable Performance: Meets international standards for electrical enclosures, ensuring reliable performance in various applications
Durable Construction: Made from high-quality materials, with a durable surface treatment, to withstand harsh environments
Protect your electrical equipment with the IP Enclosures 800mm W x 1000mm H x

Attributes:

Brand: IP Enclosures
Part Number: IP-1008040
Enclosure Depth: 400mm
Enclosure Height: 1000mm
Enclosure Width: 800mm
IP Rating: IP66
Material: Powdercoated Galvanised Steel
Sub Category: Metal Enclosures
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 47.0000
Length (mm): 800
Height (mm): 1000
Width (mm): 400
Length Packaging (mm): 1030
Height Packaging (mm): 420
Width Packaging (mm): 830
Barcode: 2000100351840

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years

Shipping Information:

Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
