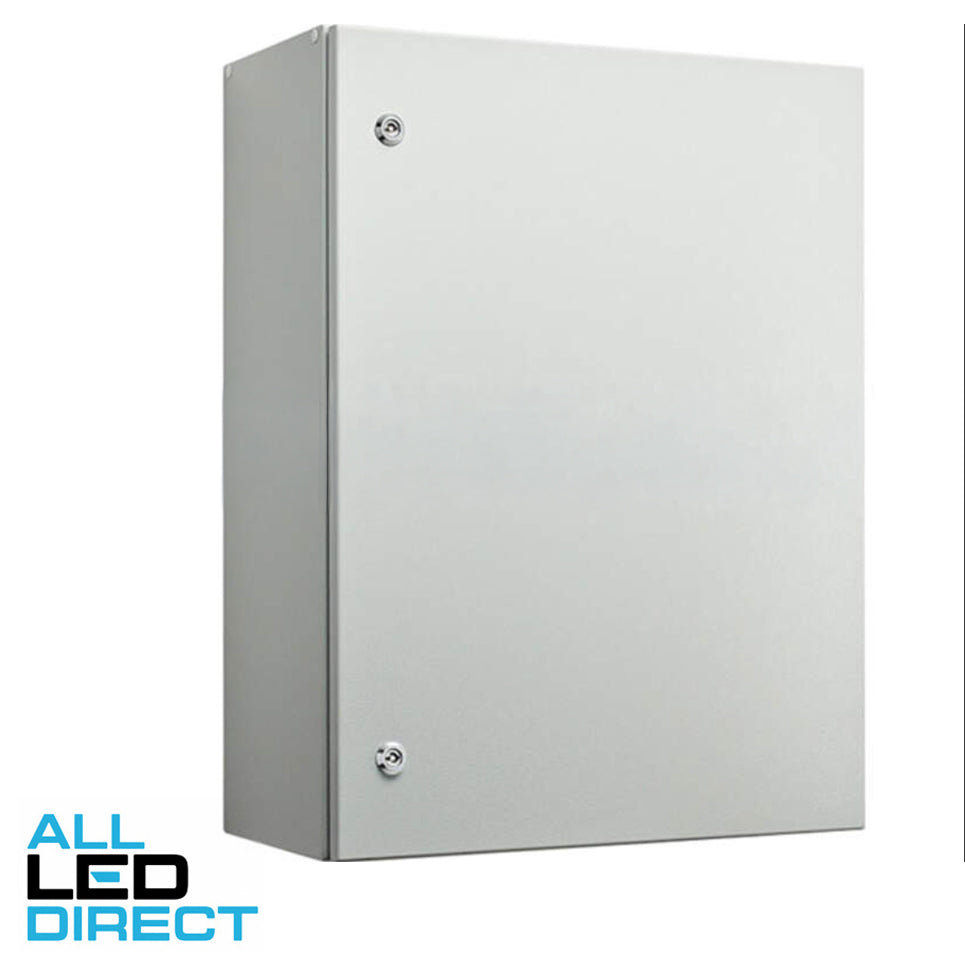

IP Enclosures 600mm W x 800mm H x 300mm D Galvanised Steel IP66 Enclosure Grey

IP Enclosures 600mm W x 800mm H x 300mm D Galvanised Steel IP66 Enclosure Grey by IP Enclosures is a steel electrical enclosure suitable for general industrial applications. The IP Enclosures IP-806030 complies with IP66 IK10, NEMA 4, and is manufactured according to IEC/EN/AS62208, IEC/EN/AS60529 standards. The enclosure is made from 1.2-1.5mm galvanised steel sheet, with a door fabricated from 1.5mm galvanised steel sheet, and a polyurethane seal. The device mounting plate is also made from 1.5mm galvanised steel sheet. The surface treatment is UL approved epoxy polyester powder-coated with a textured finish, with an average thickness of 80-120 microns, and a colour of RAL7035.
Key Features
Material: Made from 1.2-1.5mm galvanised steel sheet
Door: Fabricated from 1.5mm galvanised steel sheet with concealed removable hinges and captive pins
Seal: High quality machine-applied full perimeter Polyurethane seal foamed in place (FIP)
Compliance: Complies with IP66 IK10, NEMA 4, IEC/EN/AS62208, IEC/EN/AS60529 standards
Surface Treatment: UL approved epoxy polyester powder-coated with a textured finish, 80-120 micron average thickness, RAL7035 colour
Main Benefits
Robust Construction: Provides a durable and long-lasting enclosure for industrial applications
Excellent Sealing: The polyurethane seal provides excellent sealing over a long life, with a full perimeter seal
Easy Installation: The pre-fitted blind nutserts and integral device plate mounts make installation easier and faster
High Quality Finish: The UL approved epoxy polyester powder-coated finish provides a high quality and durable surface

Attributes:

Brand: IP Enclosures
Part Number: IP-806030
Enclosure Depth: 300mm
Enclosure Height: 800mm
Enclosure Width: 600mm
IP Rating: IP66
Material: Powdercoated Galvanised Steel
Sub Category: Metal Enclosures
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 29.0000
Length (mm): 600
Height (mm): 800
Width (mm): 300
Length Packaging (mm): 830
Height Packaging (mm): 320
Width Packaging (mm): 630
Barcode: 2000100352106

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
