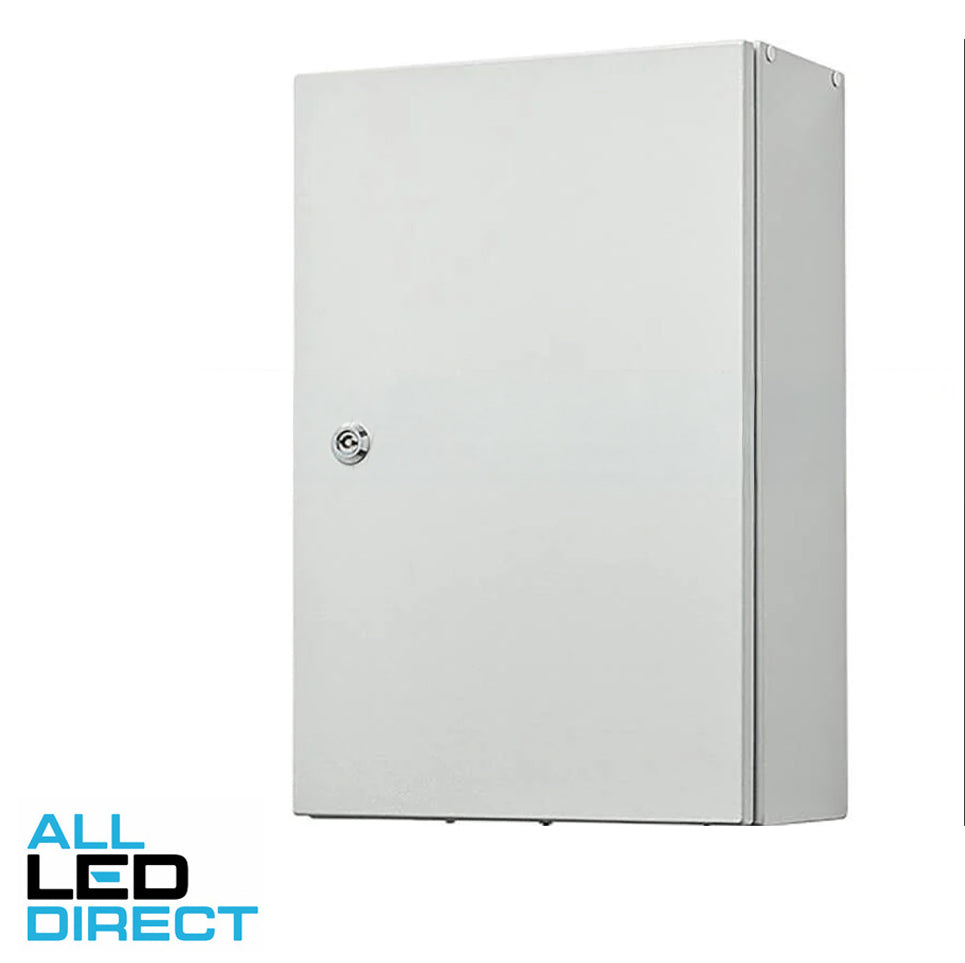

IP Enclosures 300mm W x 500mm H x 150mm D Galvanised Steel IP66 Enclosure Grey

IP Enclosures 300mm W x 500mm H x 150mm D Galvanised Steel IP66 Enclosure Grey by IP Enclosures is a steel electrical enclosure suitable for general industrial applications. The IP Enclosures IP-503015 complies with IP66 IK10, NEMA 4, and meets standards IEC/EN/AS62208, IEC/EN/AS60529. The enclosure is made from 1.2-1.5mm galvanised steel sheet, with a door fabricated from 1.5mm galvanised steel sheet, and features a polyurethane seal. The device mounting plate is fabricated using 1.5mm galvanised steel sheet and is pressed to provide additional strength.
Key Features
Material: Made from 1.2-1.5mm galvanised steel sheet
Protection: Complies with IP66 IK10, NEMA 4
Standard: Meets IEC/EN/AS62208, IEC/EN/AS60529 standards
Seal: Features a high-quality machine-applied full perimeter polyurethane seal
Door: Fabricated from 1.5mm galvanised steel sheet with concealed removable hinges
Device Mounting Plate: Fabricated using 1.5mm galvanised steel sheet, pressed for additional strength
Main Benefits
Reliable Protection: Provides a high level of protection against environmental factors with IP66 rating
Durable Construction: Made from high-quality galvanised steel sheet for long-lasting performance
Easy Installation: Features pre-fitted blind nutserts to accommodate mounts and accessory fasteners
Convenient Maintenance: Allows for easy access with a 110° door opening

Attributes:

Brand: IP Enclosures
Part Number: IP-503015
Enclosure Depth: 150mm
Enclosure Height: 500mm
Enclosure Width: 300mm
IP Rating: IP66
Material: Powdercoated Galvanised Steel
Sub Category: Metal Enclosures
Weight (kg): 9.0000
Length (mm): 300
Height (mm): 500
Width (mm): 200
Length Packaging (mm): 530
Height Packaging (mm): 170
Width Packaging (mm): 330
Barcode: 2000100351970

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
